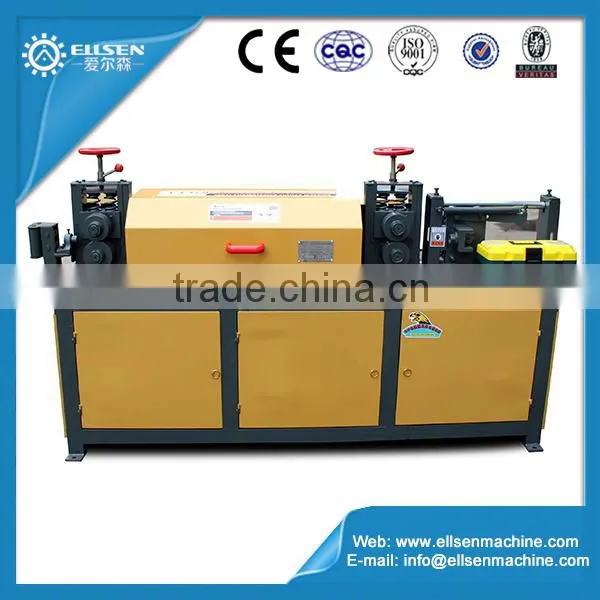

Steel Bar Straightening And Cutting Machine
Main Features:
Steel Bar Straightening And Cutting Machine is used to straightening galvanized wire or rebar,
and then cut it into the needed length. It can do a prepare work for the wire mesh welding machine.
So it is widely accepted to the factory who is dealing wire wires and wire mesh.
Also widely used in construction area.
Parameters specification of Steel Bar Straightening And Cutting Machine :
| Model | GT4-12 |
| No. of straightening wheels | 6 pieces |
| Straightening diameter | 4-12mm |
| Straightening speed | 45m/min |
| Cutting space | 500mm |
| Cutting length accuracy | 3mm |
| Straightening accuracy | 2mm |
| Motor power | 11Kw |
| Overall size | 2200x700x1100mm |
| Control box size | 650x430x850mm |
| Gross weight | 900kg |
Features:

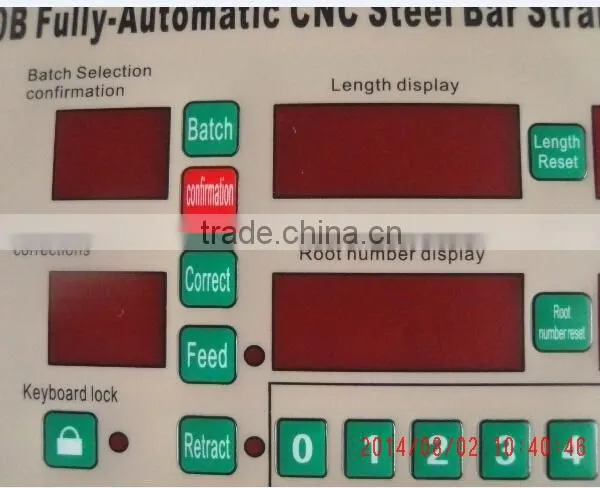

1. Different lengths and numbers are remembered by the machine
2. Hydraulic cut off, high accuracy but low noise
3. Covering Less Space, convenient to move and install
4. Running steadily, easy to maintain, exchange parts are available
5. Alter number and length without shutting
6. Number of machines can be operated by one worker at a time

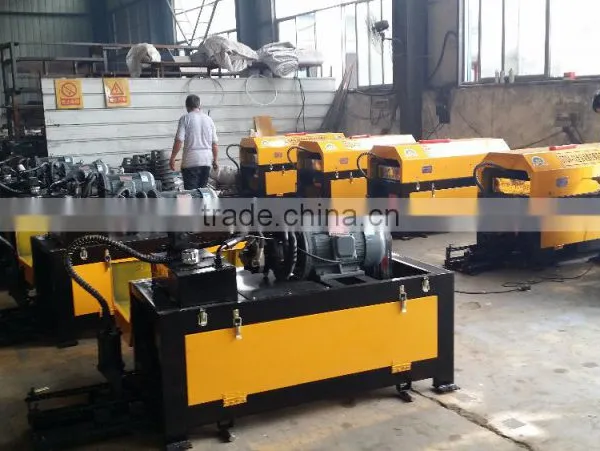

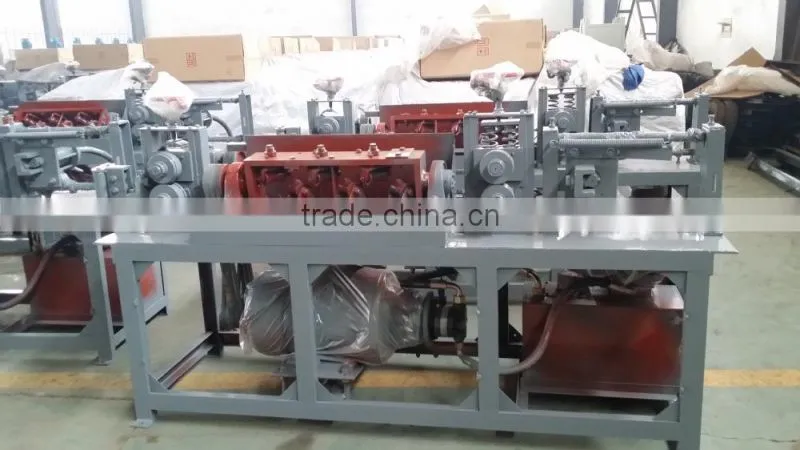

Machine photos of Steel Bar Straightening And Cutting Machine :

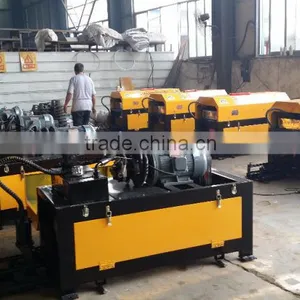

Busy production line
Reliable service team

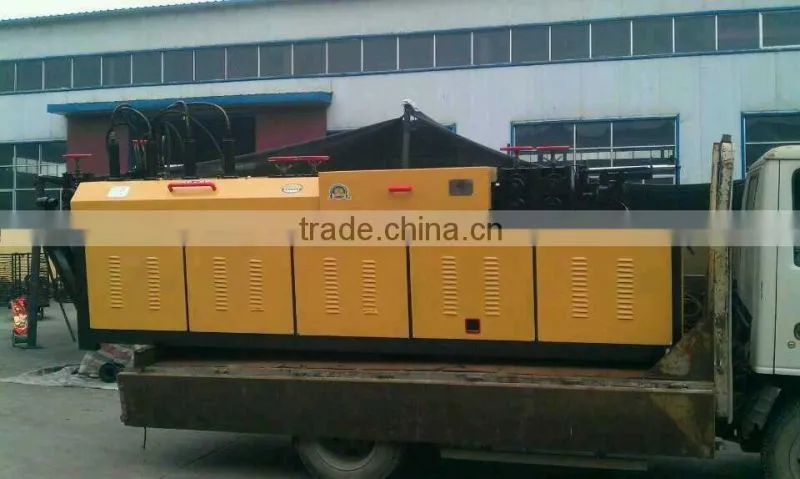

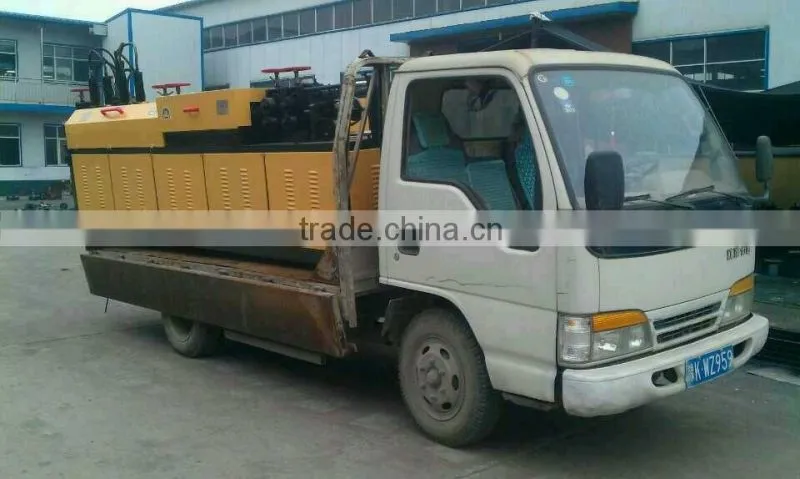

Delivery
In the construction site
