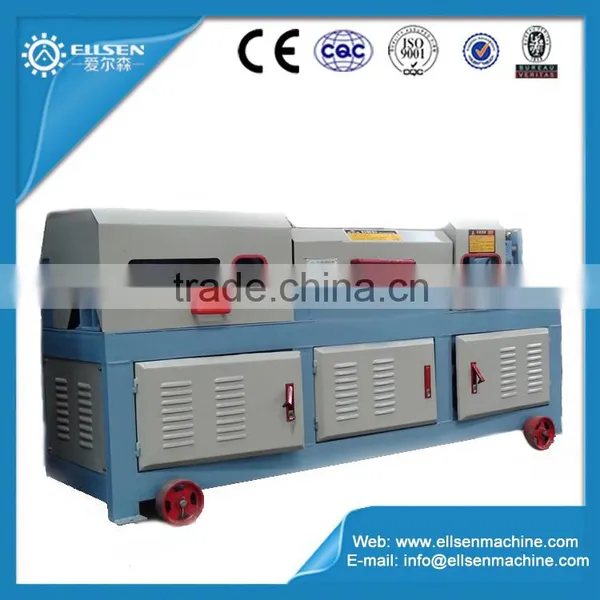

wire straightening and cutting machine

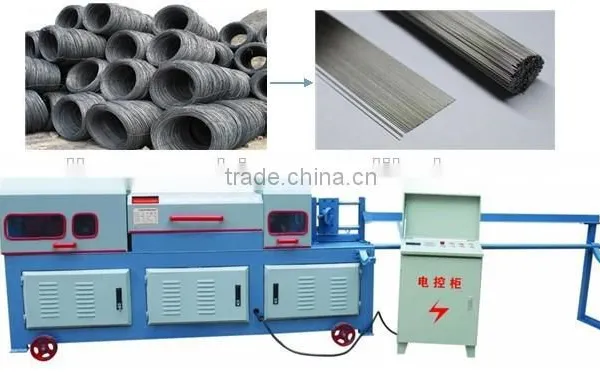

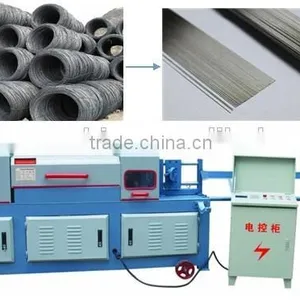

wire straightening & cutting machine is used to straightening galvanized wire or rebar, and then cut it into the needed length. It can do a prepare work for the wire mesh welding machine. So it is widely accepted to the factory who is dealing wire wires and wire mesh. Also widely used in construction area.
1.Different lengths and numbers are remembered by the machine;
2.Hydraulic cut off, high accuracy but low noise;
3.Covering Less Space,convenient to move and install ;
4.Running steadily, easy to maintain, exchange parts are available;
5.Alter number and length without shutting;
6.Number of machines can be operated by one worker at a time
| Technical parameter of wire straightening cutting machine | ||
| Model | GT4-10 | GT4-14 |
| Straightening Dimension | Φ4-Φ10mm | Φ4-Φ14mm |
| Working speed | 25~35m/min | 35~42m/min |
| Wire Cut Lengths | 900mm(can be added) | 800~900mm(can be added) |
| Cutting Length accuracy | ±5mm | ±2mm |
| Straightening accuracy | ±2mm/m | ±2mm/m |
| Motor power | 5.5KW | 16KW |
| Voltage | 220V~440V,50/60HZ,one or three phase | |
| Whole Weight | 280kg | 1200kg |
| Overall Dimension | 1760x600x800mm | 2800×750×1160mm |
| Above parameter just for your reference,if any other special demands,can be customized design based on your demands. | ||
Zhengzhou Ellsen is a manufacturer focousing on design, production,sales and sales service. At present,our factory professional manufacture bar bending machine,bar cutting machine,stirrup bending machine,straightening cutting machine,wrought iron machine. Our products has passed CE,GL,ISI,SGS,etc certificates and our product with high strict quality control and professional check system.Our products have been exported to USA, Australia,England,Russia,India, Pakistan, Bengal, Philippine, Australia, Malaysia, etc,more than100 countries and regions.
Q1: What kinds of payment can you accept?
A1: We can accept payment term: T/T, L/C, Western union,Trade assurance, Escrow, Paypal, Moneygram, Creditcard, D/A, D/P, etc.
Q2: MOQ?
A2: One set is ok.
Q3: Delivery time?
A3: If in stock,3 days;If not in stock,5~8 days.
Q4:Can you accept OEM/ODM ?
A4:Our products can be customized design for our customer by OEM/ODM.
Q5:How do you guarantee your products quality?
A5:Normally,our products warranty within one year;we are free to provide extra quick-wear parts.
Q6:What kinds of information i need provide before purchase?
A6: 1. QTY? (set)
2.Which kind of straightening cutting machine do you need ?(manual/automatic/PLC)
3.Straightening and cuttting diameter?(mm)
4.Which kinds of steel material do your need process?(Rebar,Round bar,Square bar,)
5.Power supply?(Voltage,Frequency,Phase)
