GT4-10 wire rod straightening and cutting machine
- 1000 Set / Sets per Month
- Qingdao/ Shanghai
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Other, Straightener & Cutter | Use: | Wire |
Brand Name: | Ellsen | Model Number: | GT4-10 | Voltage: | 220V/380V/415V/440V |
Power(W): | 4Kw | Dimension(L*W*H): | 1400*550*1200mm | Weight: | 260Kg |
Certification: | ISO9001 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Main Features:
Automatic rebar straightening cutting machine is used to straightening galvanized wire or rebar,
and then cut it into the needed length. It can do a prepare work for the wire mesh welding machine.
So it is widely accepted to the factory who is dealing wire wires and wire mesh.
Also widely used in construction area.
Parameters specification:
Model | GT4-10 |
No. of straightening wheels | 8 pieces |
Straightening diameter | 4-10mm |
Straightening speed | 25-35m/min |
Cutting space | 500mm |
Cutting length accuracy | 3mm |
Straightening accuracy | 2mm |
Motor power | 4Kw |
Overall size | 1760x600x800mm |
Control box size | 430x350x250mm |
Gross weight | 260kg |
Features:
1. Different lengths and numbers are remembered by the machine
2. Hydraulic cut off, high accuracy but low noise
3. Covering Less Space, convenient to move and install
4. Running steadily, easy to maintain, exchange parts are available
5. Alter number and length without shutting
6. Number of machines can be operated by one worker at a time

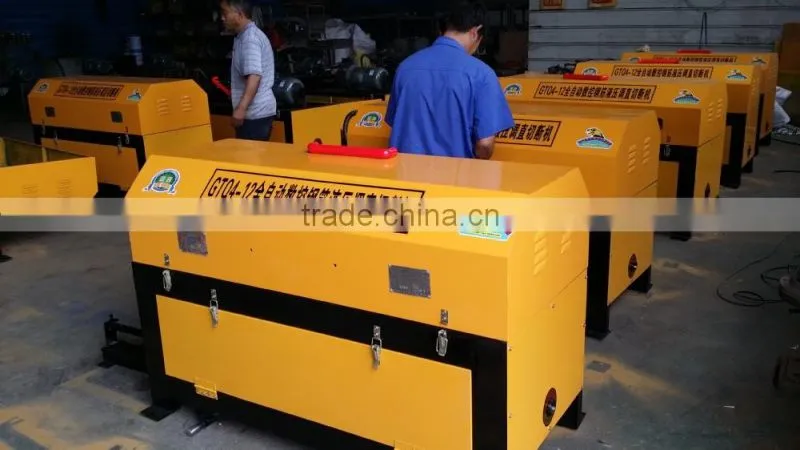

Machine photos:

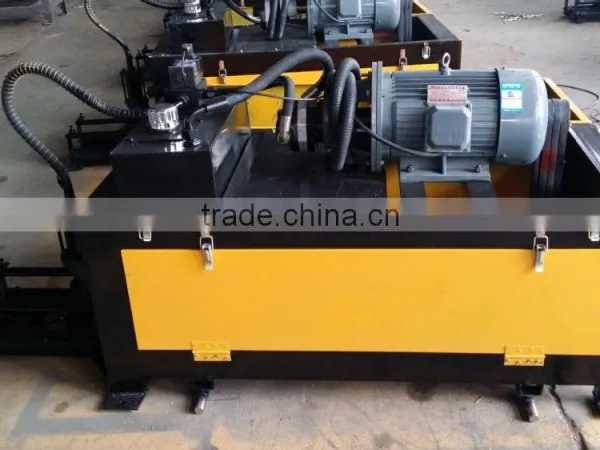

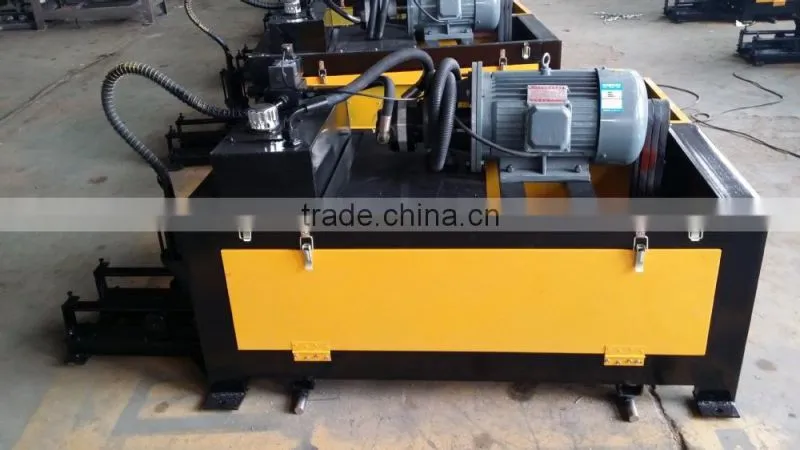

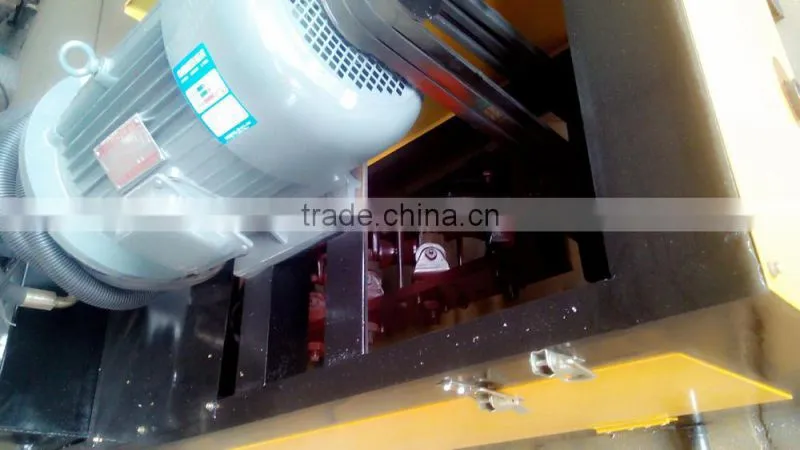

Controled by motor and hydraulic
8 pieces straightening wheels

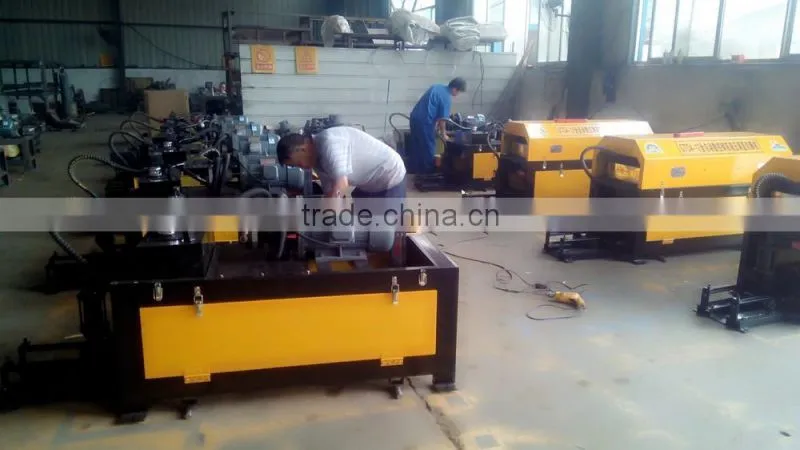

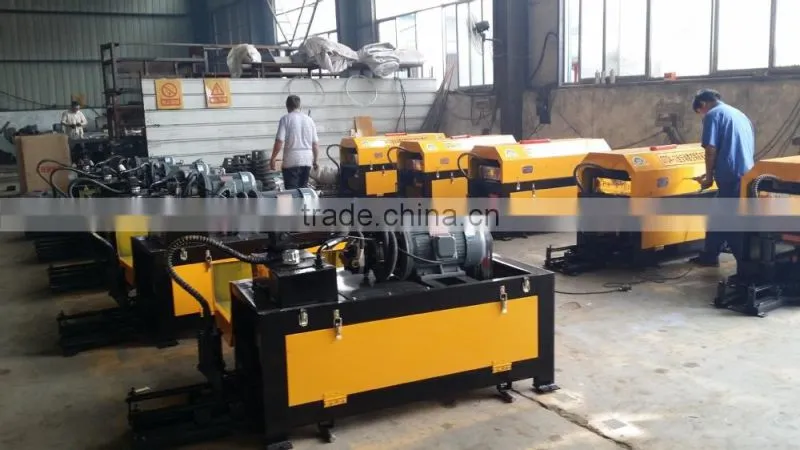

Busy production line
Reliable service team
