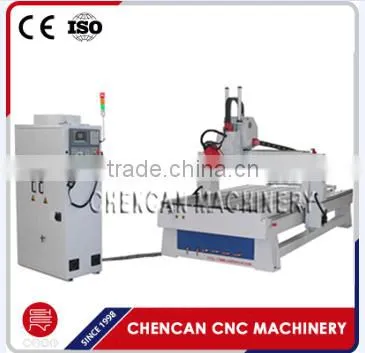

4 Axis & 3D Auto-tool Changer by Liner CNC Router Machine
Model : CC-M1325AC4
Detailed Product Description

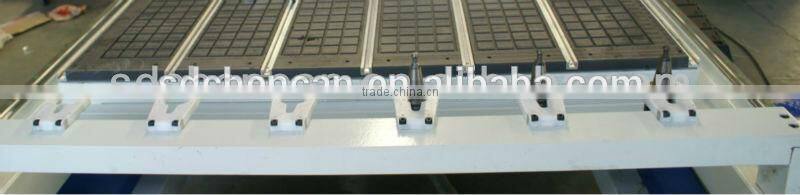

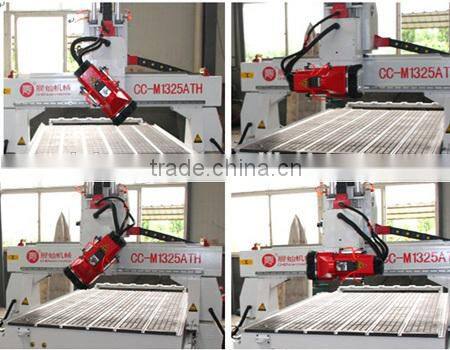

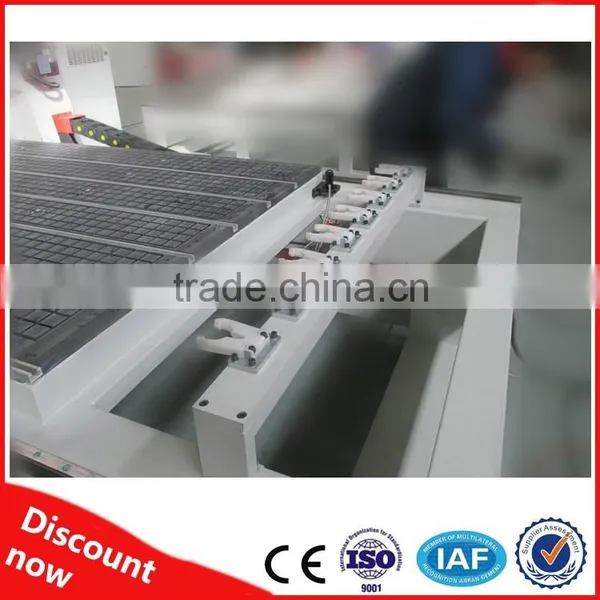

1.CC-MS1325ATH model CNC Router is the 3D , 4 axises CNC Router Machine, Liner Auto Tool
Changer funtion,can changer 1--8 piece diffferent tools at the same time .
2. With Scanner or designed photo, it can do any 3D Engraving and 2D Engraving .
3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
4. Adopting high-torque YASAKWA servo motor and 3D & 4Axis Taiwan Syntec control system .
5. X and Y axes adopt rack and pinion transmission, faster working, higher efficiency and low cost.
Z axis adopts Germany-made ball-screwand , Original Taiwan Made Hiwin H30 square orbit,
with high precision and longevity.
6. Advanced file pretreatment function can correct the error in the files and is compatible with
the process codes of multiple national and international software.(such as Mastercam, Type3,Arecam) .
7.High soft, famous brand electric cables, with high Abrasion, fold, high temperature , acid and alkali resistant .
8. We will provide you several kinds software for free, with English and Multilingual versions(CAD/CAM
designing software e.g. Type 3/Artcam/etc.). Also you can get the perfect picture storage with thousands
2D and 3D designs, and some kinds of spare parts, work piece fixtures.
9. Has the function of re-carving after break point and power failure.
10. Perfect after sale service, timely reply to your any question, professional instructions for the machine,
software and parts' using.
11. Any workstage is strictly processed according to Euro CE Quality Standard and ISO Quality Standard .
Any set CNC Router will be done at least 72 hours careful testing and checking, from small part to
the whole machine . After any part's quality inspection, finishing Basic maintenance measures,
then the machine can be packaged by the specialized workers for transport.
12. Our company has powerful strength in metal Machining. In order to make sure every detail's high quality level,
most of the machine's metal parts are made by our own Machining Center imported from American .
Applicable materials
Wood, plastic, density board, wave board, PVC, acrylic, crystal, aluminum board, light marble and other nonmetal
materials and light metal materials.
Spare parts:
Technique parameters
X,Y and Z working size |
1300*2500*300mm |
X,Y structure |
Helical rack and pinion, gear drive Taiwan Hiwin/PMI square guide rails (25mm) |
Z Structure |
Ball screw, 32mm Taiwan Hiwin/PMI square guide rails (25mm) |

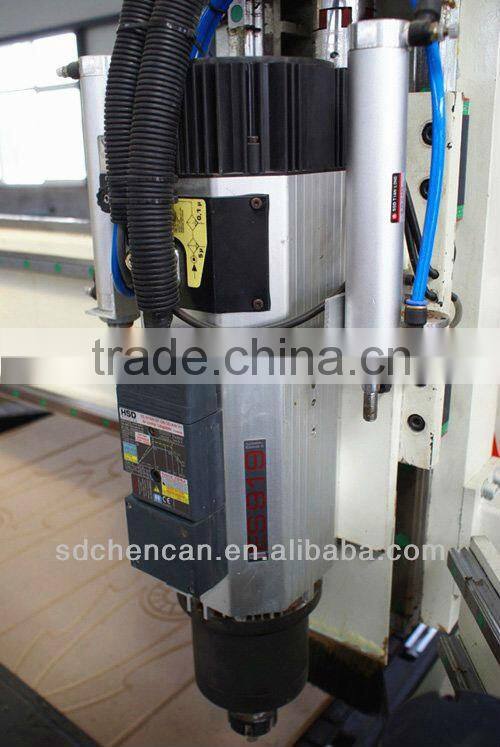

Spindle |
9kw, air-cooled,Italian spindle |
Spindle speed |
18000r/min |

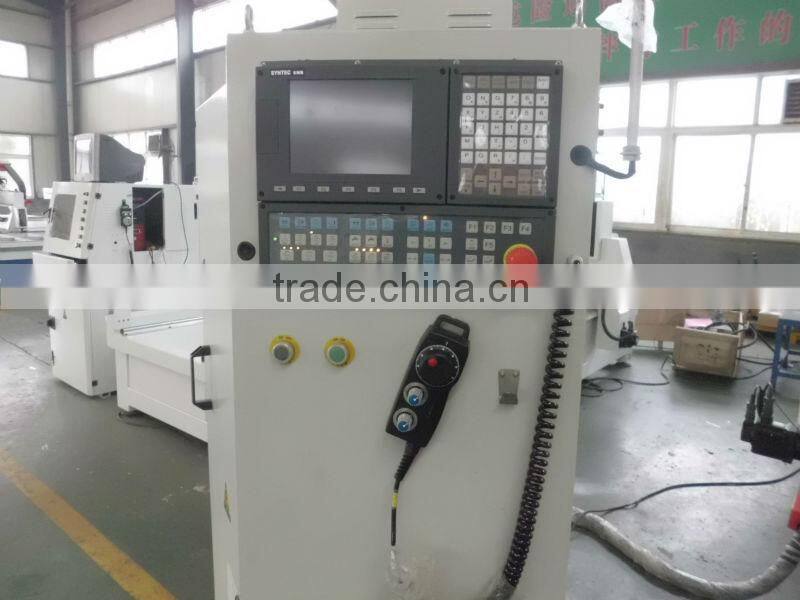

Controller |
Syntec for 4 axis ATC cnc machine |
Rapid speed |
70m/min |
Diameter of Cutter |
φ3.175-φ12.7mm |
Working Voltage |
AC380V 3-phase; |
Motor and driver |
Servo |
Command |
G code,nc,cnc |
Software |
Artcam, Powermill, UG |
Dust-collect function |
yes |
Working table |
Vacuum table |
Weight |
1400kg |
Package size |
3250*2250*2230mm |
Samples:

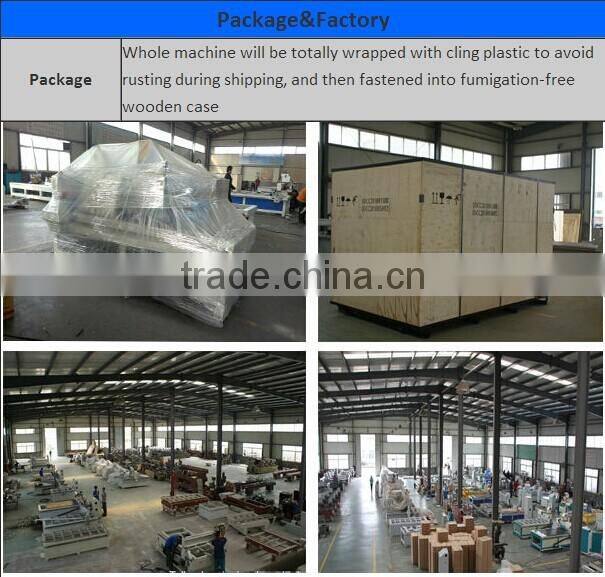

Packaging & certificates:
