Cable wire harness tester,lcd display electric cable test, network cable tester on sale
- 1000 Set / Sets per Month
- Shanghai Hangzhou Ningbo etc
- T/T Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | HELPASS | Model Number: | HPS9820 |
Power: | Electronic | Usage: | Universal Testing Machine |
Product Description

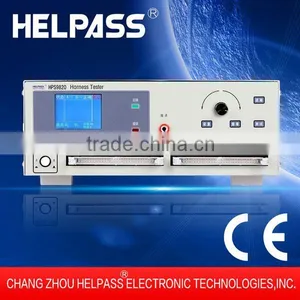

Cable wire harness tester,lcd display electric cable test, network cable tester on sale
♦ Self - learning data reading function, automatic determining and automatic testing and storage of records
♦ It has quickly find point function and can find some features quickly and fixture of short circuit and open circuit detection
♦ Having a strong counting function and statistic of good quality
♦ Qualified, unqualified indicator light and Buzzer alarm
♦ Providing advanced short circuit, open circuit, dislocation and instant short circuit, instant open circuit test.

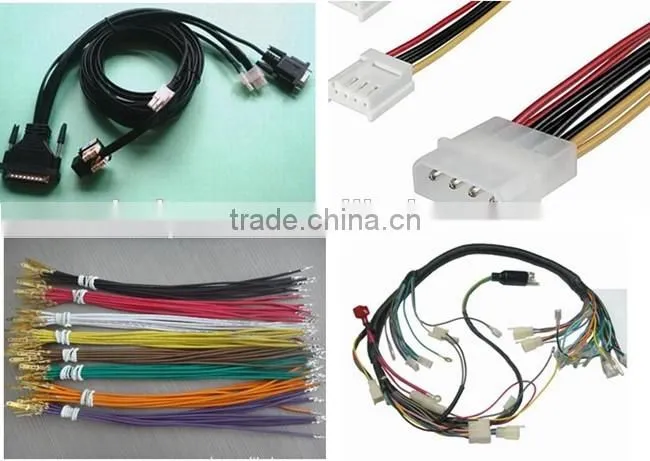

♦ terminal lines
♦ wire harness and cable
♦ USB and Computer peripheral line
♦ wire order complex wiring harness for vehicle manufacturing industry such as cars, electric cars manufacturing industry
Model | HPS9820 | |
Features | ||
Measurement function | ||
Test Pin | 128pin | |
Speed | One million pin /s | |
Swing Test | Manual mode is effective,Swing delay:5s-50s | |
Data entry mode | Self-learning standard wire sample | |
Learning data storage | store 3 kinds of different standard wire connection data | |
Test signal | ||
DC signal source | 5VDC | |
DC current source | 20mA,Max | |
Sorting and interfaces | ||
Sorting Function | Qualified, unqualified indicator light and Buzzer alarm, Text Tips | |
Interface | RS-232C(option),Handler(option) | |
General Specification | ||
WorkingEnvironment | 0°C -40°C ,≤90%RH | |
Power Consumption | ≤30 VA |
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ HPS98002/98002A Wire test board
♦ HPS98001/HPS98001A Cable
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
ex/DHL/UPS:Reach most countries takes about 3-5 days
2.EMS:Reach most countries takes about 6-8 days
