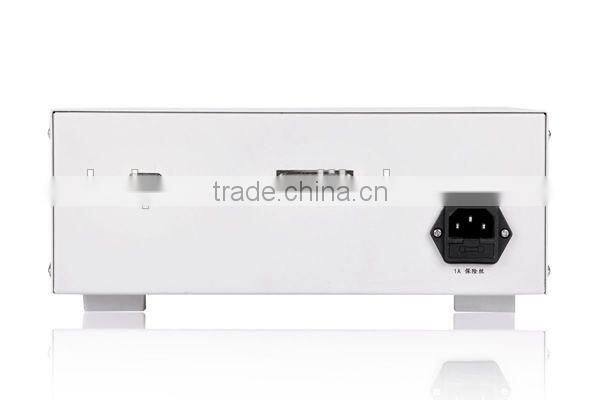

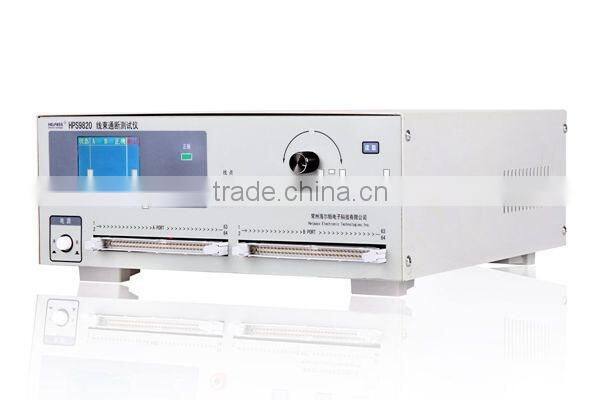

HPS9820 high precise wiring tester,universal electrical wire harness tester
♦ The first color LCD Chinese operation interface
♦ Up to 1 million times per second measurement point
♦ Self - learning data reading function, automatic determining and automatic testing and storage of records
♦ It has quickly find point function and can find some features quickly and fixture of short circuit and open circuit detection
♦ Having a strong counting function and statistic of good quality
♦ Qualified, unqualified indicator light and Buzzer alarm
♦ Providing advanced short circuit, open circuit, dislocation and instant short circuit, instant open circuit test.
♦ Complete communication interface can be used for data communication with PC and remote control of the instrument
♦ Various types of terminal lines
♦ Wire harness and cable
♦ USB and Computer peripheral line
♦ Wire order complex wiring harness for vehicle manufacturing industry such as cars, electric cars manufacturing industry
Model |
HPS9820 |
|
Features | ||
Displayer |
TFT true color LCD display |
|
Display Language |
Optional operation interface in English and Chinese |
|
Measurement function | ||
Test Pin |
128pin |
|
|
Measurement Speed |
One million pin /s |
|
Detection Type |
Single ended wiring harness,Double ended wire harness,Automotive wiring harness and so on |
|
Test Item |
Short circuit,Open circuit,Dislocation,Instantaneous short circuit,Instantaneous open circuit, Unilateral point measurement function |
|
Swing Test |
Manual mode is effective,Swing delay:5s-50s |
|
Data entry mode |
Self-learning standard wire sample |
|
Learning data storage |
store 3 kinds of different standard wire connection data |
|
Statistics Function |
The system provides statistical functions, and provides statistical analysis of the qualified rate and the defective items. |
|
Test signal | ||
DC signal source |
5VDC |
|
DC current source |
20mA,Max |
|
Sorting and interfaces | ||
Sorting Function |
Qualified, unqualified indicator light and Buzzer alarm, Text Tips |
|
Beep |
Short beeps,Continuous and Close |
|
Interfaces |
RS-232C(option),Handler(option) |
|
General Specification | ||
WorkingEnvironment |
0°C -40°C ,≤90%RH |
|
Power Supply |
198V -242V(AC),47.5Hz -63Hz |
|
Power Consumption |
≤30 VA |
|
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ HPS98002/98002A Wire test board
♦ HPS98001/HPS98001A Cable
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
We will arrange to ship your order with 3-15 working days after payment confirmed
1.Fedex/DHL/UPS:Reach most countries takes about 3-5 days
2.EMS:Reach most countries takes about 6-8 days
