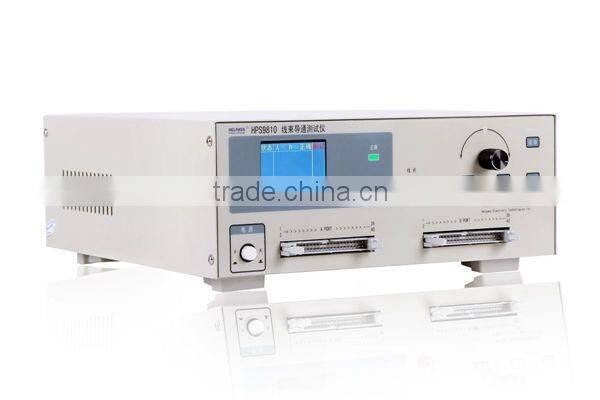

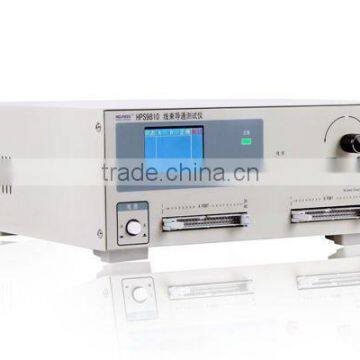

Cable/harness tester testing 80 pin with color LCD display
- 1000 Set / Sets per Month
- Shanghai Hangzhou Ningbo etc
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | HELPASS | Model Number: | HPS9810 |
| Power: | Electronic | Usage: | Universal Testing Machine |
Product Description
Cable/harness tester testing 80 pin with color LCD display
♦ Qualified, unqualified indicator light and Buzzer alarm
♦ Up to 1 million times per second measurement point
♦ Self - learning data reading function, automatic determining and automatic testing and storage of records
♦ Having function of finding points quickly
♦ Having a strong counting function and statistic of good quality
♦ Providing advanced short circuit, open circuit, dislocation and instant short circuit, instant open circuit test.
♦ Complete communication interface can be used for data communication with PC and remote control of the instrument
Model | HPS9810 | |
Features | ||
Displayer | LCD display | |
Display Language | Optional operation interface in English and Chinese | |
Measurement function | ||
Test Pin | 80pin | |

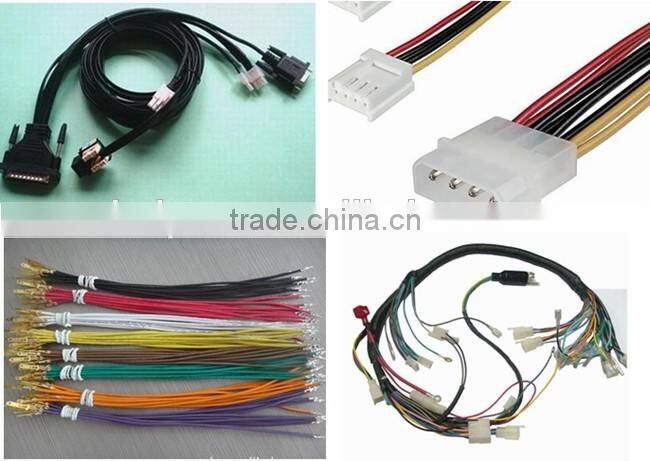

Detection Type | Single ended wiring harness,Double ended wire harness,Automotive wiring harness and so on | |
Test Item | Short circuit,Open circuit,Dislocation,Instantaneous short circuit,Instantaneous open circuit, Unilateral point measurement function | |
Test Mode | Auto,Manual | |
Swing Test | Manual mode is effective,Swing delay:5s-50s | |
Data entry mode | Self-learning standard wire sample | |
Learning data storage | store 3 kinds of different standard wire connection data | |
Statistics Function | The system provides statistical functions, and provides statistical analysis of the qualified rate and the defective items. | |
Test signal | ||
DC signal source | 5VDC | |
DC current source | 20mA,Max | |
Sorting and interfaces | ||
Sorting Function | Qualified, unqualified indicator light and Buzzer alarm, Text Tips | |
Beep | Short beeps,Continuous and Close | |
Interfaces | RS-232C(option),Handler(option) | |
General Specification | ||
Working Environment | 0°C -40°C ,≤90%RH | |
Power Supply | 198V -242V(AC),47.5Hz -63Hz | |
Power Consumption | ≤30 VA | |
Standard accessories:
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ HPS98002/98002A Wire test board
♦ HPS98001/HPS98001A Cable
Optional accessories:
♦ PC Data Acquisition Software
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
