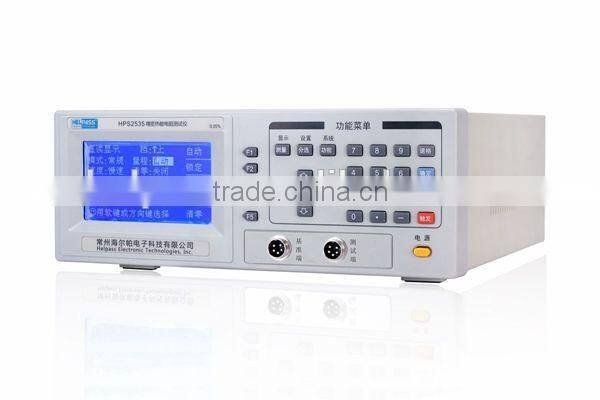

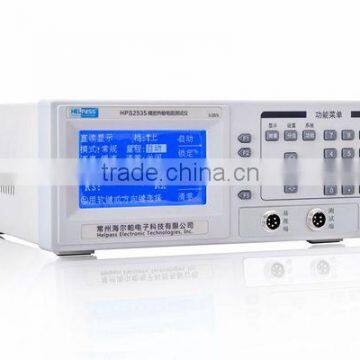

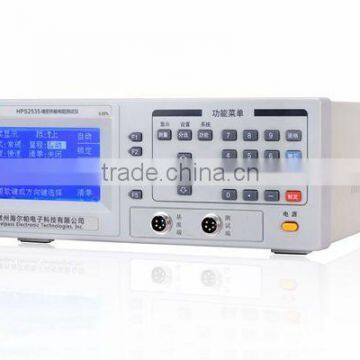

China digital milliohm meter temperature compensation thermal resistance tester
♦ Dedicated dual way contrast measurement mode for innovative thermistor
♦ Measuring the thermistor resistance at room temperature and under the relevant judgment
♦ Strong stability and accurate readings
♦ Having a variety of measurement methods for different types of NTC PTC thermistor
♦ For quick measurement calculation value B
♦ Temperature compensation and error correction
♦ Optional operation interface in English and Chinese
♦ Complete communication interface
♦ PTC Thermistor (Position temperature coefficient thermistor)
♦ NTC Thermistor (Negative temperature coefficient thermistor)
♦ Detection needs temperature compensation resistor element
Model |
HPS2535 |
||
Feature | |||
Displayer |
HD LCD display |
||
Display digits |
6Digits |
||
Measurement Function | |||
Accuracy |
0.05% |
||
Measurement Range |
1µΩ -20MΩ |
||
Signal Source Range |
1µA -0.5A |
||
Measurement Models |
Normal Mode,Baseline Mode,Dual Mode and Compare Mode |
||
Range |
Automatic and manual with 10 ranges |
||
|
Measurement Speed(time/sec) |
Slow:8 Medium:15 Fast:20 Ultra-fast: 30 Accurate measurement: 4 |
||
Trigger Delay |
0 -9999mS |
||
Average Number |
1-255 |
||
Correction |
Short-circuit Zero-Adjust |
||
Measurement Terminals |
Dual:Four-wire system(2 detection terminals,2 drive terminals),five terminals |
||
Temperature Compensation |
Range:0-80°C, Accuracy:0.2°C(option) |
||
Display Mode |
Direct reading,ABS,%,Sorting Results |
||
Sorting and interfaces | |||
Signal Output |
BIN1~BN13,HI,IN,LO |
||
File Count Range |
0-999999(Independent counts each file) |
||
Beep |
OFF,IN,HI,LO(Adjustable volume) |
||
Interface |

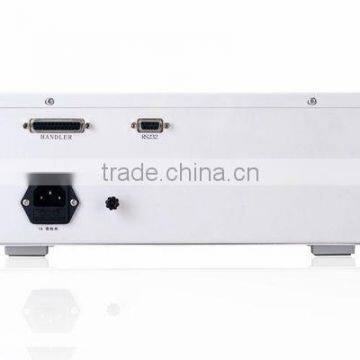

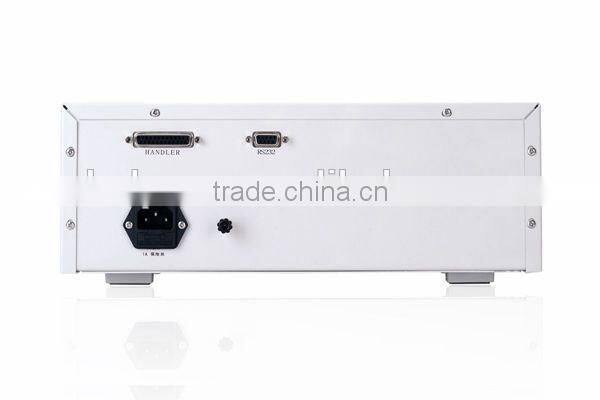

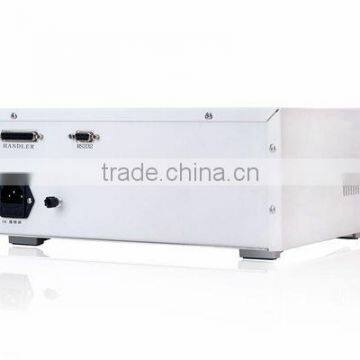

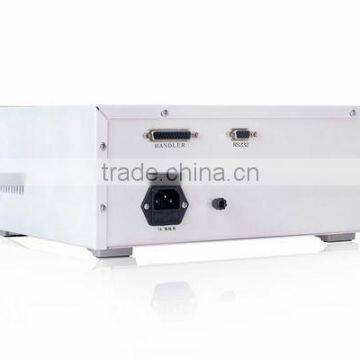

RS-232C/HANDLER/USB Device/ U disk interface(option)/GPIB(option) |
||
General Specification | |||
WorkingEnvironment |
0°C -40°C ,≤90%RH |
||
Power Supply |
198V -242V(AC),47.5Hz -63Hz |
||
Power Consumption |
≤30 VA |
||
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ HPS25002 Gold-plated five-terminal Kelvin clip test line
♦ Communication cable
We will arrange to ship your order with 3-15 working days after payment confirmed
1.Fedex/DHL/UPS:Reach most countries takes about 3-5 days
2.EMS:Reach most countries takes about 6-8 days
