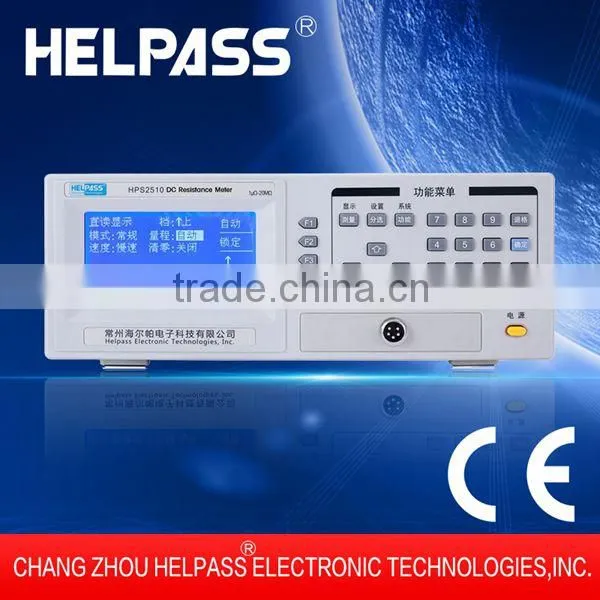

HPS2510 0.05% precision Digital Low Ohm Meter dc micro ohm meter for low resistance
♦ Maximum resistance precision: 0.05%
♦ Resistance resolution:1µΩ
♦ Set upper and lower limits for each channel independently
♦ The fastest speed can reach 30times/second
♦ Ten ranges at most, manual and automatic mode
♦ File number display and file count function
♦ Optional operation interface in English and Chinese
♦ Complete communication interface can be used for data communication with PC and remote control of the instrument
♦ Various of switch contact resistance
♦ Enameled resistance,Small diameter coil resistance
♦ Contact resistance
♦ Relay line package and contact resistance
♦ Transformer, inductor, motor, deflection coil winding resistance
♦ Weld contact resistance
♦ Conductor resistance
Model |
HPS2510 |
|
Features | ||
Displayer |
HD LCD display |
|
Display Digits |
6Digits |
|
Measurement Function | ||
Basic Accuracy |
0.05% |
|
Measurement Range |
1µΩ -20MΩ |
|
Test Current |
1µA -1A |
|
|
Measurement Speed(time/sec) |
Slow:5 Medium:15 Fast:30 |
|
Trigger delay |
0 -9999mS |
|
Average Time |
1-255 |
|
Correction Function |
Short correction |
|
Measurement Terminal |
Four-wire system(2 detection terminals,2 drive terminals),five terminals |
|
Temperature Compensation |
Compensation range:0-80°C,Accuracy:0.2°C(option) |
|
Display Method |
Direct reading,ABS,%,Sorting Results |
|
Sorting and interfaces | ||
Signal Output |
BIN1~BN13,HI,IN,LO |
|
Beep |
OFF,IN,HI,LO(Adjustable Volume) |
|
Interfaces |
RS-232C/HANDLER/USB Device/GPIB(option) |
|
General Specification | ||
WorkingEnvironment |
0°C -40°C ,≤90%RH |
|
Power Supply |
198V -242V(AC),47.5Hz -63Hz |
|
Power Consumption |
≤15 VA |
|
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ HPS25002 Gold plated Kelvin clamp test line
♦ Communication Cable
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
We will arrange to ship your order with 3-15 working days after payment confirmed
1.Fedex/DHL/UPS:Reach most countries takes about 3-5 days
2.EMS:Reach most countries takes about 6-8 days
