Home > Instruments & Meters > Meter for Electricity > Resistance Meter > HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1%

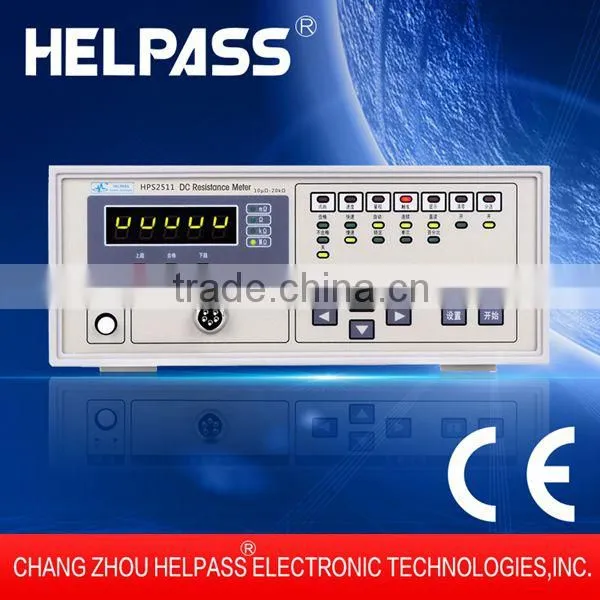

HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1%

Name: HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1%
Brand: HELPASS
SKU: 130400209
Availability: InStock

HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1% thumbnail-1

HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1% thumbnail-2

HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1% thumbnail-3

HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1% thumbnail-4

HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1% thumbnail-5

HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1% thumbnail-6

HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1% photo-1

HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1% photo-2

HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1% photo-3

HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1% photo-4

HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1% photo-5

HPS2511Digital Micro Ohm Meter for Low Resistance With Accuracy 0.1% photo-6

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

HELPASS

Model Number:

HPS2511

Contact Supplier Request Quote Chat Now

Changzhou Helpass Electronic Technologies Inc.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Hangzhou Ningbo etc

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name HELPASS

Model Number HPS2511

Display Type Digital Only

Measuring Range 10μΩ -20kΩ

Testing Voltage 220V

Accuracy Class 0.1%

Operating Temperature 0°C -40°C

Dimensions 270 x 120 x 325 mm

HPS2511Digital Micro Ohm Meter for low resistance with accuracy 0.1%

HPS2511series of DC low resistance tester is specially used for measuring the DC resistance of the low resistance, with display intuitive, the advantages of convenient operation; it can be widely used in all kinds of resistance measurement and metal detection and other applications. Used in the production line, in order to improve the production line automation test ability, we can use the Handler interface to output good or bad product signal.

Feature

♦ Ideal instrument for production test line

♦ Easy operation, display intuitive

♦ Good stability

♦ Zero adjustment, calibration convenient

♦ Set the comparison limit value conveniently

♦ Qualified and unqualified signal output and beep

♦ Display the sorting result

♦ Comprehensive communication interface for data communication with the PC and the instrument remote control

Application

♦ Various of switch contact resistance

♦ Enameled resistance,Small diameter coil resistance

♦ Contact resistance

♦ Relay line package and contact resistance

♦ Transformer, inductor, motor, deflection coil winding resistance

♦ Weld contact resistance

♦ Conductor resistance

Specification

Model	HPS2511
Features
Displayer	HD LED digital tube display
Display Digits	5Digits
Measurement Function
Basic Accuracy	0.1%
Measurement Range	10µΩ -20kΩ
Resolution	10µ
Test Current	100/10/1mA/100/10/1µA
Ranging Mode	Auto,Manual
Measurement Speed(time/sec)	Slow:5 Fast:10
Trigger mode	Internal,Manual,External
Correction Function	Full range short correction
Measurement Terminal	Four-wire system(2 detection terminals,2 drive terminals),five terminals
Display Method	Direct reading,ABS,%,Sorting Results
Sorting and interfaces
Sorting Function	Onlap,Downlap,Qualified sorting, Beep( OFF,IN,HI,LO)
Interfaces	RS-232C/HANDLER
General Specification
Working Environment	0°C -40°C ,≤90%RH
Power Requirement	198V -242V(AC),47.5Hz -63Hz
Power Consumption	≤15 VA
Dimension	270 mm(W) x 120 mm(H) x 325 mm(D)
Weight	2.5kg

Accessories

Standard accessories:

♦ AC power cord

♦ User's manual

♦ Testing report

♦ Warranty card and certificate

♦ HPS25002 Gold plated Kelvin clamp test line

♦ Communication Cable

Optional accessories:

♦ USB to RS232 universal serial line (1.8 meters)

♦ Software CD (PC Data Acquisition Software)

Technical Service:

♦ We have professional engineers who design the test methods and test fixture for the product,debugged test equipment parameter to reach the optimal performance.

♦ We provide free technical training and offer free equipment maintenance technology.

♦ We can design special test programs and test fixture according to the customer.
