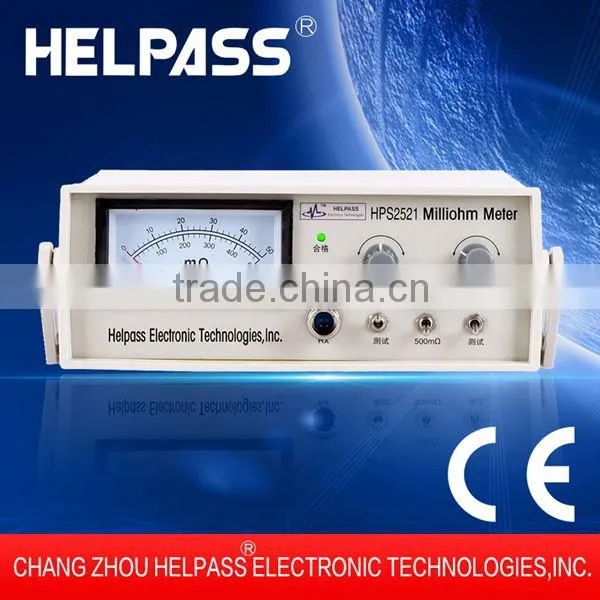

HPS2521 DC Micro Ohm Meter Low Ohm Meter for winding resistance
♦ Ideal instrument for production test line
♦ Easy operation, display intuitive
♦ Fast measurement speed, good stability
♦ Zero adjustment, calibration convenient
♦ Set comparison threshold easily
♦ Qualified, unqualified sound and light alarm
♦ Various of switch contact resistance
♦ Contact resistance
♦ Relay line package and contact resistance
♦ Transformer, inductor, motor, deflection coil winding resistance
♦ Weld contact resistance
♦ Conductor resistance
Model |
HPS2521 |
||
Feature | |||
Displayer |
Pointer type |
||
Measurement Function | |||
Accuracy |
5% |
||
Measurement Range |
0 -500mΩ |
||
Test Current |
100mA |
||
Measurement Speed(time/second) |
Fast:50 |
||
Correction |
Short-circuit Zero-Adjust for each range |
||
Sorting and Interfaces | |||
Sorting Function |
Qualified and unqualified indicator light and buzzer alarm |
||
Interface |
Relay switch output(option) |
||
General Specification | |||
Working Environment |
0°C -40°C ,≤90%RH |
||
Power Supply |
198V -242V(AC),47.5Hz -63Hz |
||
Power Consumption |
≤15 VA |
||
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ HPS24002 Gold plated Kelvin clamp test line/ HPS24002B Silver pen
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
We will arrange to ship your order with 3-15 working days after payment confirmed
1.Fedex/DHL/UPS:Reach most countries takes about 3-5 days
2.EMS:Reach most countries takes about 6-8 days
