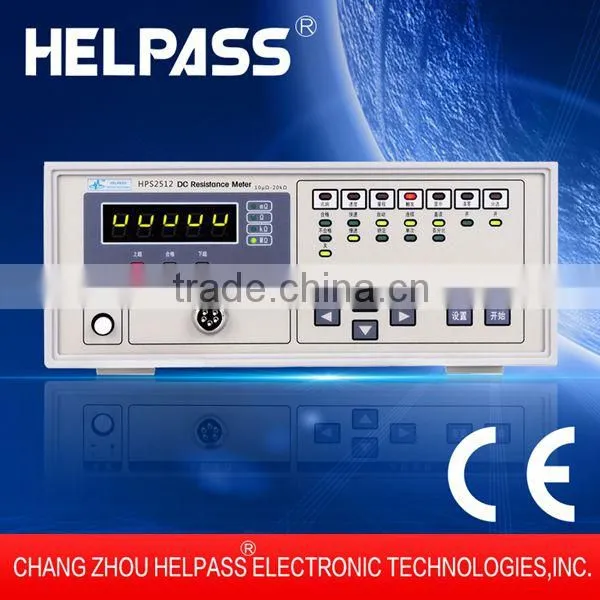

HPS2512 Digital micro ohm meter DC low resistance tester for motor resistance
♦ Easy operation, display intuitive
♦ Good stability
♦ Zero adjustment, calibration convenient
♦ Set the comparison limit value conveniently
♦ Qualified and unqualified signal output and beep
♦ Display the sorting result
♦ Switch contact resistance
♦ Enameled resistance,Small diameter coil resistance
♦ Contact resistance
♦ Relay line package and contact resistance
♦ Transformer, inductor, motor, deflection coil winding resistance
♦ Weld contact resistance
♦ Conductor resistance
Model |
HPS2512 |
||
Features | |||
Displayer |
HD LED digital tube display |
||
Display Digits |
5Digits |
||
Measurement Function | |||
Measurement Range |
10µΩ -2kΩ |
||
Resolution |
100µΩ |
||
Test Current |
100/10/1mA/100µA |
||
|
Measurement Speed(time/sec) |
Slow:5 Fast:10 |
||
Trigger mode |
Internal,Manual,External |
||
Measurement Terminal |
Four-wire system(2 detection terminals,2 drive terminals),five terminals |
||
Sorting | |||
Sorting Function |
Onlap,Downlap,Qualified sorting, Beep( OFF,IN,HI,LO) |
||
General Specification | |||
Working Environment |
0°C -40°C ,≤90%RH |
||
Power Consumption |
≤15 VA |
||
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ Communication Cable
