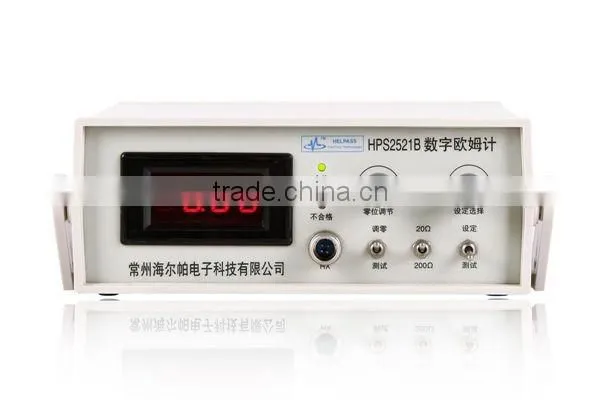

Digital Micro Ohm Meter /Milliohm Meter for contact resistance tester
♦ Ideal instrument for production test line
♦ Easy operation, display intuitive
♦ Fast measurement speed, good stability
♦ Zero adjustment, calibration convenient
♦ Set comparison threshold easily
♦ Qualified, unqualified sound and light alarm
♦ Several of switch contact resistance
♦ Enameled resistance,Small diameter coil resistance
♦ Contact resistance
♦ Relay line package and contact resistance
♦ Transformer, inductor, motor, deflection coil winding resistance
♦ Weld contact resistance
♦ Conductor resistance
Model |
HPS2521B |
||
Feature | |||
Displayer Digits |
4Digits |
||
Measurement Function | |||
Basic Accuracy |
1% |
||
Measurement Range |
0 -200Ω |
||
Resolution |
20 Ω:10mΩ 200 Ω:100mΩ |
||
Test Current |
100mA |
||
Measurement Speed(time/second) |
Fast:50 |
||
Correction |
Short-circuit Zero-Adjust for all range |
||
General Specification | |||
WorkingEnvironment |
0°C -40°C ,≤90%RH |
||
Power Consumption |
≤15 VA |
||
♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
We will arrange to ship your order with 3-15 working days after payment confirmed
1.Fedex/DHL/UPS:Reach most countries takes about 3-5 days
2.EMS:Reach most countries takes about 6-8 days
