Digital DC Resistance Tester/micro ohm meter for Contact Resistance
♦ Maximum resistance precision: 0.05%
♦ Resistance resolution:1µΩ
♦ Set upper and lower limits for each channel independently
♦ The fastest speed: 30times/second
♦ Complete communication interface
♦ Optional operation interface in English and Chinese
♦ Contact resistance
♦ Various of switch contact resistance
♦ Enameled resistance,Small diameter coil resistance
♦ Relay line package and contact resistance
♦ Transformer, inductor, motor, deflection coil winding resistance
♦ Weld contact resistance
♦ Conductor resistance
Model |
HPS2510 |
HPS2510A |
Features | ||
Displayer |
LCD display |
|
Display Digits |
6Digits |
|
Measurement Function | ||
Basic Accuracy |
0.05% |
|
Measurement Range |
1µΩ -20MΩ |
1µΩ -2MΩ |
Test Current |
1µA -1A |
|
Ranging Mode |
10 Automatic or Manual |
9 Automatic or Manual |
|
Measurement Speed(time/sec) |
Slow:5 Medium:15 Fast:30 |
|
Trigger delay |
0 -9999mS |
|
Correction |
Short-circuit Zero-Adjust |
|
Test Lead |
Four-wire system(2 check terminal and 2 driving terminal),five terminals |
|
Temperature Compensation |
Range:0-80°C,Accuracy:0.2°C(option) |
|
Display Method |
Direct reading,ABS,%,Sorting Results |
|
Sorting and interfaces | ||
Sorting Function |
16 build-in comparators: 14 qualified,onlap ,downlap |
|
Signal Output |
BIN1~BN13,HI,IN,LO |
|
Beep |
OFF,IN,HI,LO(Adjustable Volume) |
|
General Specification | ||
Working Environment |
0°C -40°C ,≤90%RH |
|
Power Consumption |
≤15 VA |
|

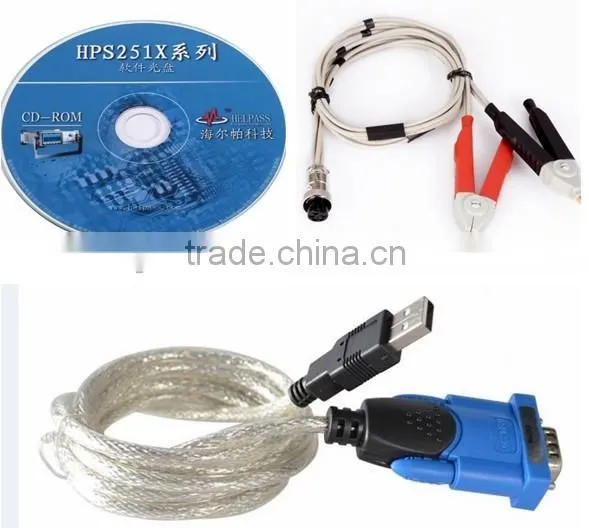

♦ AC power cord
♦ User's manual
♦ Testing report
♦ Warranty card and certificate
♦ Communication Cable
Technical Service:
♦ We have professional engineers who design the test methods and test fixture for the product, debugged test equipment parameter to reach the optimal performance.
♦ We provide free technical training and offer free equipment maintenance technology.
♦ We can design special test programs and test fixture according to the customer.
