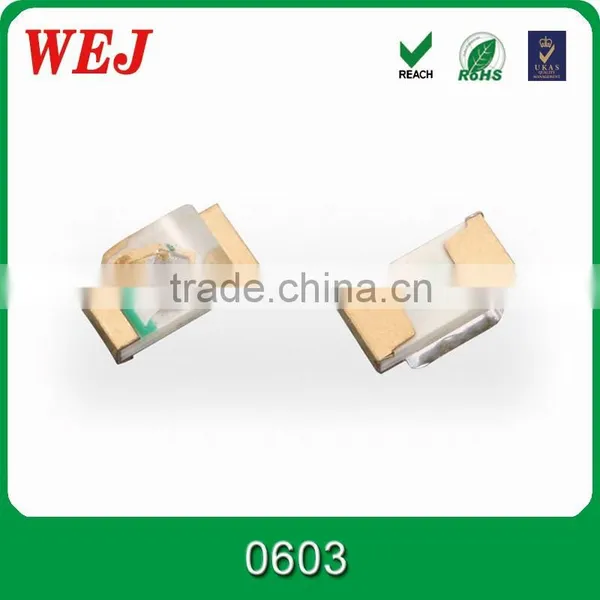

High brightness 520nm Green SMD LED 0603
Feature
*Low power consumption
*Long life-solid state reliability
*Available on tape and reel
*RoHS compliant
Electical characteristics datasheet
Selection Guide
| Part No. | Emitted Color | Resin color | Viewing Angle |
| WEJT61GC-S5 | Green | Water Clear | 130 degree |
Absolute Maximum Ratings at Ta=25 ℃
| Parameter | Symbol | Value | Unit |
| Power dissipation | Pd | 125 | mW |
| DC Forward Current | If | 30 | mA |
| Peak Forward Current | Ifp | 150 | mA |
| Reverse Voltage | Vr | 5 | V |
| Electro-Static-Discharge | ESD | 1000 | V |
| Operating Temperature | Topr | -25 to +85 | ℃ |
| Storage Temperature | Tstg | -40 to +100 | ℃ |
| Lead Solder Temperature | Tsol | 260 for 5sec | ℃ |
Notes:
1. 1/10 duty cycle, 0.1ms pulse width
2. The products are sensitive to static electricity and must be carefully taken when handling products.
Electrical/Optical Characteristics Ta=25 ℃
| Parameter | Symbol | Condition | Value | Unit | ||
| Min | Typ | Max | ||||
| Forward voltage | Vf | If=20mA | --- | 3.2 | 3.4 | V |
| Luminous intensity | Iv | If=20mA | 200 | 350 | --- | mcd |
| Dominant wavelength | WD | If=20mA | --- | 520 | --- | --- |
| Peak wavelength | WP | If=20mA | --- | 530 | --- | --- |
| Revese current | Ir | If=5V | --- | --- | 10 | μA |

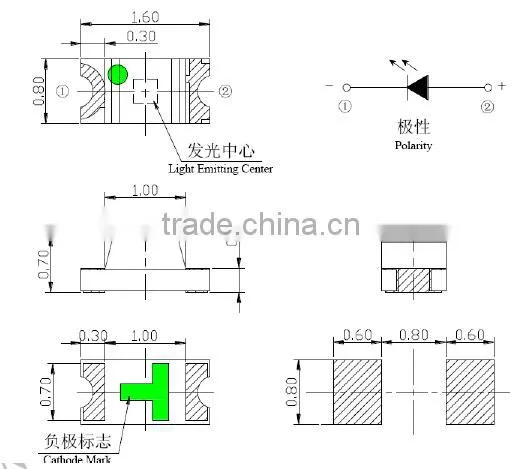

Package outline dimensions of SMD LED 0603:
Note:
1. All dimensions are in millimeters(mm);
2. X.X is +/-0.1mm, X.XX is +/-0.05mm unless otherwise noted;
3. The device has a single mounting surface, the device must be mounted according to the specifications.
| Product | Quantity/reel | Quantity/carton | GW/CTN | Carton size |
| SMD LED 003 | 4000pcs/reel | 43reels/ctn | 4.5kg | 47*22*26.5cm |
