0.5W 2835 Deep Red 660nm Smd Led for Growth

0.5W 2835 Deep Red 660nm Smd Led for Growth thumbnail-1
0.5W 2835 Deep Red 660nm Smd Led for Growth thumbnail-2
0.5W 2835 Deep Red 660nm Smd Led for Growth thumbnail-3
0.5W 2835 Deep Red 660nm Smd Led for Growth photo-1

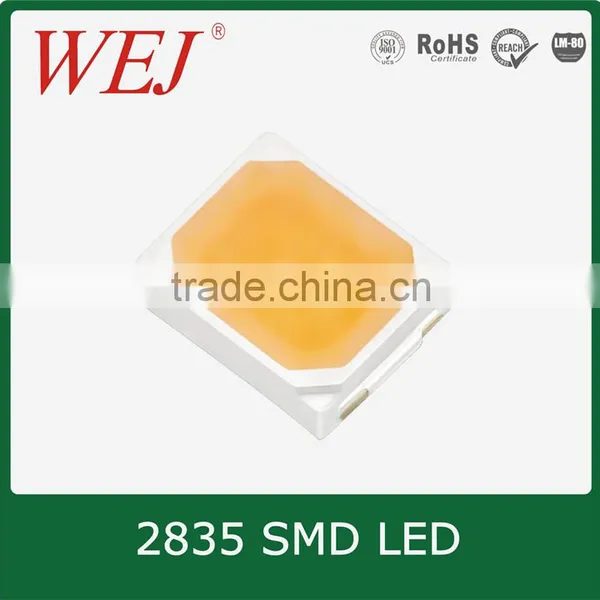

0.5W 2835 Deep Red 660nm Smd Led for Growth photo-2

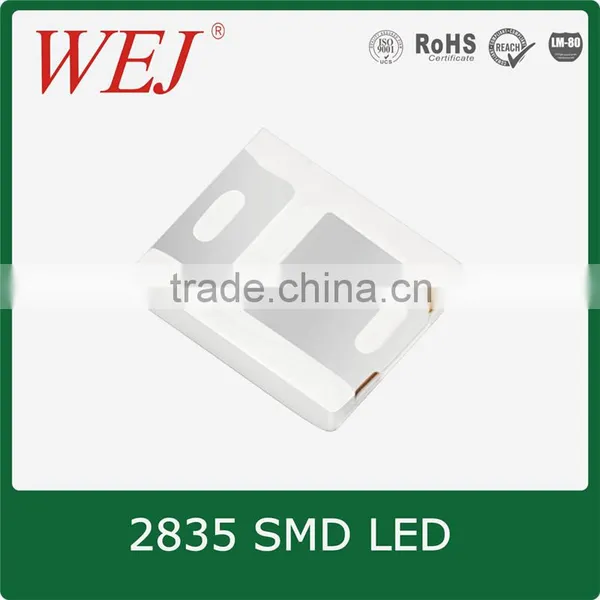

0.5W 2835 Deep Red 660nm Smd Led for Growth photo-3
US$ 0.021 - 0.045 MOQ: 4000 Pieces
Key Specifications
Get Latest Price
Model Number:
WEJT255R-ED5M-2DP
Chip Material:
AlGaInP
Emitting Color:
Red
Contact Supplier Request Quote Chat Now
Shenzhen Yongerjia Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number WEJT255R-ED5M-2DP
Chip Material AlGaInP
Emitting Color Red
Luminous Intensity 2310mcd
Luminous Flux(lm) 7
Power Other, 0.5W
Color Temperature /
Operating Temperature(℃) -25, +85
Storage Temperature(℃) -40, +100
Place of Origin Guangdong, China
Brand Name WEJ 2835 red 660nm smd led
Certification CE

0.5W 2835 Deep red 660nm smd led for growth





Features of 2835 SMD LED:

*Low power consumption

*Long life-solid state reliability

*Available on tape and reel

*RoHS REACH compliant

*Emitted Color: Deep red 660nm

*Viewing Angle:120 degree

*Compatible with SMT automatic equipment, Reflow soder and wave solder



Product Description
Part No. Emitted color Resin color Viewing angle
WEJT255R-ED5M-2DP Red Transparent 120



Absolute Maximum Ratings at Ta=25 ℃

Parameter Symbol Value Unit
Power dissipation Pd 250 mW
DC Forward current If 120 mA
Peak forward current Ifp 450 mA
Reverse voltage Vr 5 V
Electro-static-dischare(HBM) ESD 1000 V
Operating temperature Topr -25 to +85 ℃
Storage temperature Tstg -40 to +100 ℃
Lead solder temperature Tsol 260 for 5sec ℃

Notes:

1. 1/10 duty cycle, 0.1ms pulse width

2. The products are sensitive to static electricity and must be carefully taken when handling products.



Electrical/Optical Characterisics Ta=25 ℃

Parameter Symbol Condition Value Unit
Min Typ Max
Forward voltage Vf If=150mA --- 2.0 2.6 V
Luminous flux   If=150mA 3 4 7 lm
Dominant wavelength WD If=150mA 630 645 660 nm
Peak wavelength WP If=150mA --- 660 --- nm
Reverse current Ir Vr=5V --- --- 10 uA

Notes:

1. Forward voltage: +/-0.1V

2. Wavelength: +/-1.5nm

3. Luminous Flux: +/-10%

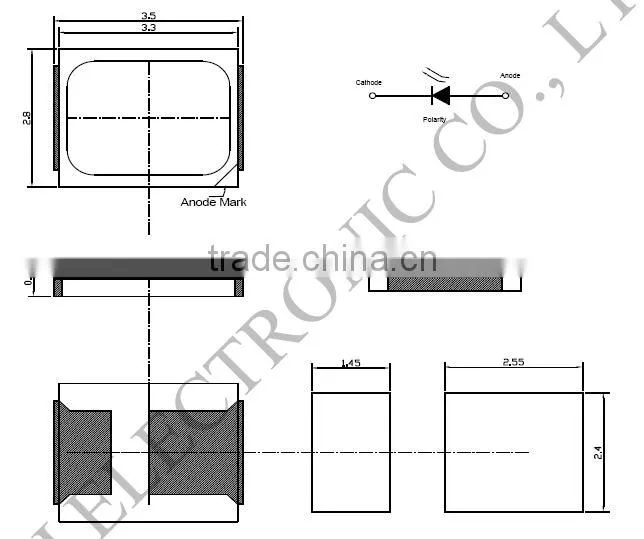

Package outline dimensions of 0.5W 2835 red 660nm smd led:

0.5W 2835 Deep red 660nm smd led for growth



Note:

1.All dimensions are in millimeters (mm);

2.XX is +/-0.1mm, XXX is +/-0.05mm unless otherwise noted;

3.The device has a single mounting surface, the device must be mounted according to the specifications.





Packaging & Shipping


Packaging Dimensions Specification

0.5W 2835 Deep red 660nm smd led for growth

0.5W 2835 Deep red 660nm smd led for growth











Company Information



WEJ Factory:

0.5W 2835 Deep red 660nm smd led for growth

 Other models of SMD LED we produce:

Model

Vf(V)

If(mA)

Power(W)

Luminous intensity

CRI(Ra)

3014

3.0-3.4

30

0.1

10-12-14

70+ or 80+

2835

3.0-3.4

60

0.2

22-24-26-28

70+ or 80+

3528

3.0-3.4

20

0.06

6-7-8-9

70+ or 80+

5050

3.0-3.4

60

0.2

18-20-22-24-26

70+ or 80+

5630

2.8-3.3

150

0.5

50-60

70+ or 80+

5730

2.8-3.6

150

0.5

50-60

70+ or 80+



We promise:

 1. Your inquiry will be replied within 24 hours

 2. Pack the goods very well and delivery them as soon as possible

 3. Protection of your sales area, ideas of design and all your private information

 4. Get in touch with us if you have any requirements. We also produce various kinds of LED SMD, such as 3014, 2835, 3528, 5630, 5050, etc.

 5. We will try our best to solve the problems within or out of the warranty time.
