High volt 9V 5500K 32lm White 2835 SMD LED

Specifications

2835 smd led
1.If=30mA,Vf: 9-10.2V,0.3W
2.Long Lifespan, high brightness:32LM
3.Pb-free,RoHS,REACH compliant
4. Free samples

High volt 9V 5500K 32lm White 2835 SMD LED





Features of 2835 SMD LED:

*Low power consumption

*Long life-solid state reliability

*Available on tape and reel

*RoHS REACH compliant

*Emitted Color: Cool white 5500-7000K

*Viewing Angle:120 degree

*Compatible with SMT automatic equipment, Reflow soder and wave solder







Specification of 2835 smd led:

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Lumen	Φ	30	32	---	lm	IF = 30mA
Color Rendering Index	Ra		80			IF = 30mA
Viewing Angle	2θ1/2	---	120	---	deg	IF = 30mA
CIE 1931 Coordinate	X/Y	---	X:0.31 Y:0.32	---		IF = 30mA
Color Temperature	CCT	-5500-		--7000-	K	IF = 30mA
Forward Voltage	VF	9	9.5	10.2	V	IF = 30mA
Reverse Current	IR	---	---	10	uA	VR=5V

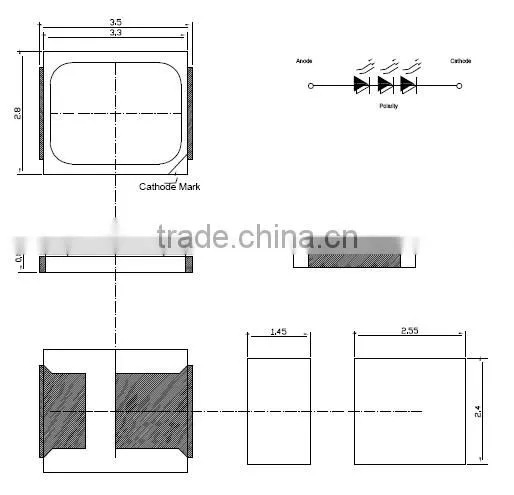

Mechanical Dimensions of 2835 smd led:





Note:

1.All dimensions are in millimeters (mm);

2.XX is +/-0.1mm, XXX is +/-0.05mm unless otherwise noted;

3.The device has a single mounting surface, the device must be mounted according to the specifications.

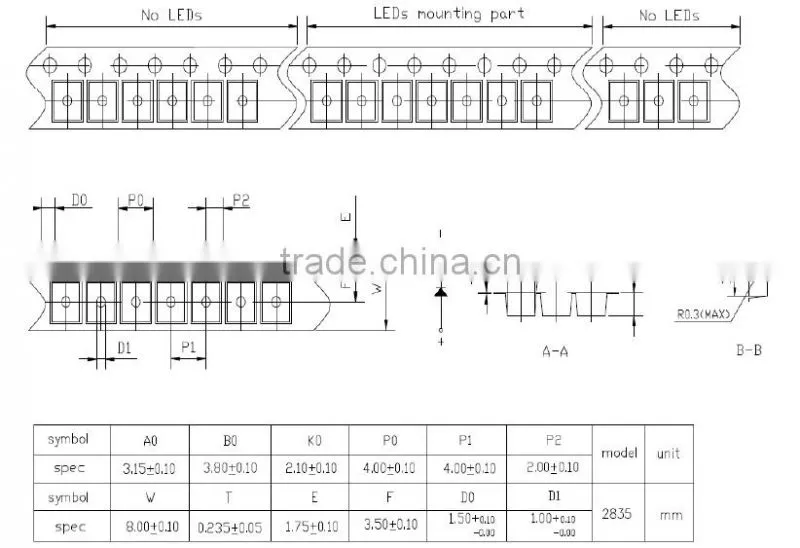

Packaging Dimensions Specification













WEJ Factory:

 Other models of SMD LED we produce:

Model	Vf(V)	If(mA)	Power(W)	Luminous intensity	CRI(Ra)
3014	3.0-3.4	30	0.1	10-12-14	70+ or 80+
2835	3.0-3.4	60	0.2	22-24-26-28	70+ or 80+
3528	3.0-3.4	20	0.06	6-7-8-9	70+ or 80+
5050	3.0-3.4	60	0.2	18-20-22-24-26	70+ or 80+
5630	2.8-3.3	150	0.5	50-60	70+ or 80+
5730	2.8-3.6	150	0.5	50-60	70+ or 80+
