Help Center0.2W 2800K Warm White 5050 Smd Led
US$ 0.01 - 0.02
MOQ: 20000 Pieces
Key Specifications
Get Latest Price
Model Number:
WWEJT50AM7-HSTB01
Chip Material:
InGaN
Emitting Color:
Warm White
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
660-670nm Red Grow Led Light Diode 2835 SMD LED DiodeUS$ 0.013 - 0.017MOQ: 2000 Pieces -
High Brightness 520nm Green SMD LED 0603US$ 0.03 - 0.05MOQ: 4000 Pieces
-
Ultra Bright Chip Led Backlight SMD 1608 0603 White SMD LEDUS$ 0.03 - 0.05MOQ: 4000 Pieces
-
High Quality and High Output 3528 PLCC2 LED Blue 450nm Blue LEDUS$ 0.001 - 0.025MOQ: 2000 Pieces
-
0.5W 2835 Deep Red 660nm Smd Led for GrowthUS$ 0.021 - 0.045MOQ: 4000 Pieces
Model Number
WWEJT50AM7-HSTB01
Chip Material
InGaN
Emitting Color
Warm White
Luminous Intensity
6400-7400mcd
Power
Other, 0.2W
Power Dissipation
200
Color Rendering Index(Ra)
71
Color Temperature
2800-3100K
Operating Temperature(℃)
-25, 85
Storage Temperature(℃)
-40, 100
Place of Origin
Guangdong, China
Brand Name
WEJ
Certification
CE
0.2W 2800K Warm White 5050 smd led
specification of 5050 smd led
Forward Current |
60mA |
Peak Forward Current |
300mA |
Reverse Voltage |
5V |
Power dissipation |
200mW |
Operation Temperature |
-25 to 85°C |
Storage Temperature |
-40 to 100°C |
Forward Voltage |
3.2~3.4V |
Chromaticity Coordinates |
X:0.437, Y:0.394 |
Color Rendering index |
72 Ra |
Lumen |
6400-7400mcd |
Chip |
Epistar |
Mechanical Dimensions of 5050 SMD LED:

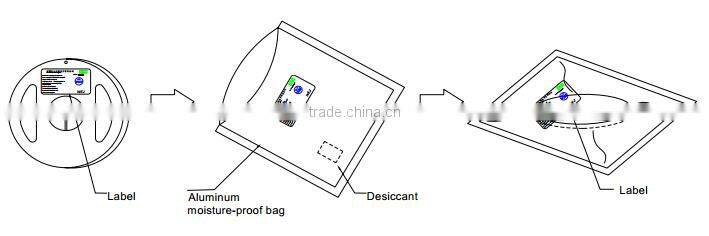

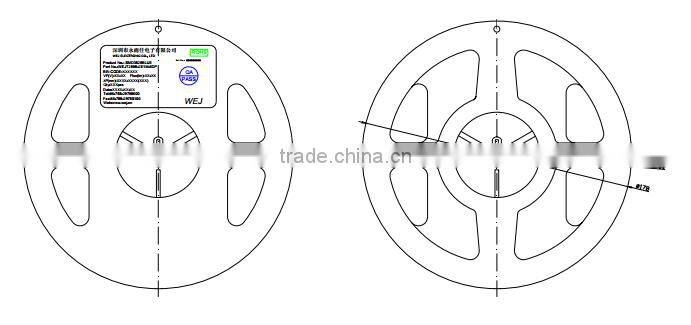

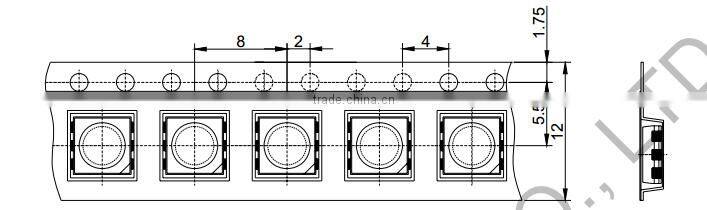

packaging of 5050 smd led
Packaging Details:1000pieces/reel; anti-static plastic bag
Shipping of 5050 smd led
Delivery detail:IN 5 DAYS,DHL/TNT/FedEx
Certification of our products
WEJ TEAM:
WEJ FACTORY
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2002
Factory Size
3,000-5,000 square meters
Total Employees
101 - 200 People
