Help Center4.8mm Straw Hat Lamp LED
US$ 0.012 - 0.038
MOQ: 20000 Pieces
Key Specifications
Get Latest Price
Model Number:
WEJ59BWC-CC2
Chip Material:
InGaN
Emitting Color:
Natural White
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5mm the Lowest Price 1.1-1.2V 940nm 5mm Infrared Led SpecificationsUS$ 0.02 - 0.03MOQ: 10000 Pieces -
5mm Round Lamp LED With Zener DiodeUS$ 0.011 - 0.017MOQ: 10000 Pieces
-
Glass Package DiodesUS$ 0.001 - 0.006MOQ: 2500 Pieces
-
Throught Hole 1.5A Bridge Rectifier DiodeUS$ 0.04 - 0.05MOQ: 3000 Pieces
-
Ultra Bright 3mm Blue Led Diffused With Wide Beam AngleUS$ 0.022 - 0.029MOQ: 20000 Pieces
Model Number
WEJ59BWC-CC2
Chip Material
InGaN
Emitting Color
Natural White
Luminous Intensity
1400mcd, 1400mcd
Optical Attenuation(%)
0.1
Power
Other, 0.12
Power Dissipation
0.12
Color Rendering Index(Ra)
75
Color Temperature
4000~4600K
Operating Temperature(℃)
-25, 85
Storage Temperature(℃)
-40, 100
Place of Origin
Guangdong, China
Brand Name
WEJ lamp led
Certification
CE

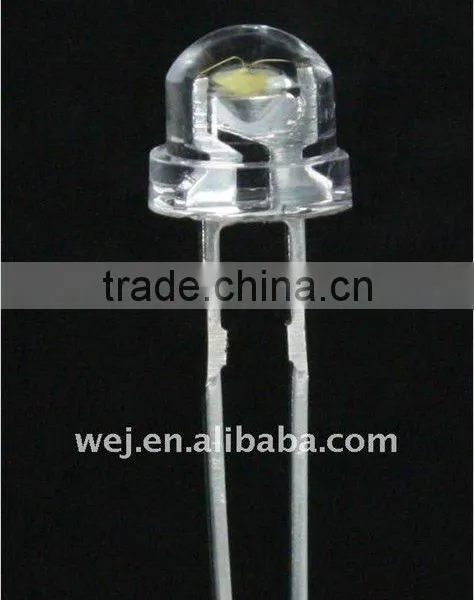

4.8mm straw hat lamp LED
Features
High intensity
Reliable and rugged
Low current requirement
IC compatible
Parameters of 4.8mm straw hat lamp led:
Power dissipation: 120mW
Forward Current(DC): 30mA
Forward Voltage:3.0-3.4V
View angle:120degree
Peak Forward Cerrent:100mA
Color temperature: 4000~4600k
Reverse Voltage:5.0V
Operation Temperature Range: -25~85°C
Storage Temperatuere Range: -40~100°C
Lead soldering temperature for 5 seconds: 260°C
Dimension of 4.8mm straw hat LED:
Sepecification of 4.8mm straw hat led:
Application:
Energy-saving Lamp, LED dispaly, electronics indicator, electronice display.etc..
Packing detail:
| Product | MPQ | Qty per inner box | Qty/carton | Carton size | GW/CTN |
| 4.8mm straw hat lamp led | 500pcs/antistatic bag | 8000pcs/box | 32000pcs | 56*29*31cm | 11KG |
