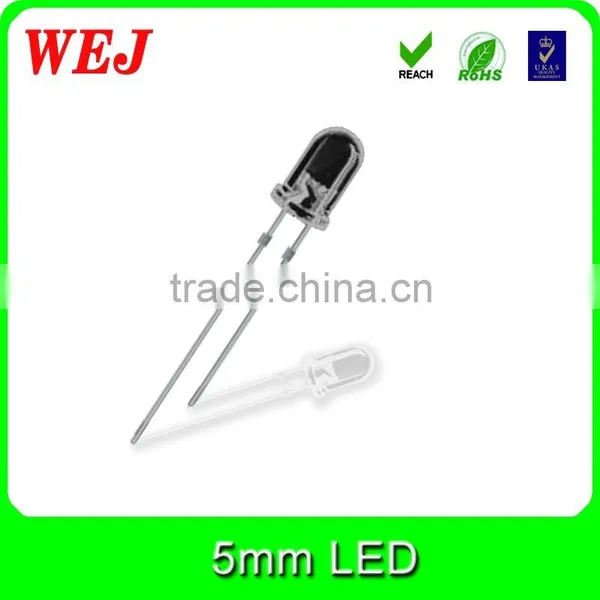

5mm round concave straw 0.02W 1.1-1.2V 940nm 5mm infrared through hole dip led
Parameter |
Symbol |
Value |
Unit |
Power dissipation |
Pd |
35 |
mW |
DC Forward Current |
If |
20 |
mA |
Peak Forward Current |
Ifp |
100 |
mA |
Reverse Voltage |
Vr |
5 |
V |
Electro-Static-Discharge |
ESD |
2000 |
V |
Operating Temperature |
Topr |
-25to+85 |
℃ |
Storage Temperature |
Tstg |
-40to+100 |
℃ |
Lead Solder Temperature |
Tsol |
260 for 5sec |
℃ |
Parameter |
Symbol |
Condition |
Value |
Unit |
||
Min. |
Typ. |
Max. |
||||
Forward voltage |
Vf |
If=20mA |
1.1 |
1.2 |
--- |
V |
Radiant Intensity |
Ie |
If=20mA |
7 |
8 |
--- |
mW/Sr |
Peak wavelength |
λp |
If=20mA |
--- |
940 |
--- |
nm |
Reverse current |
Ir |
Vr=5V |
--- |
--- |
50 |
μA |

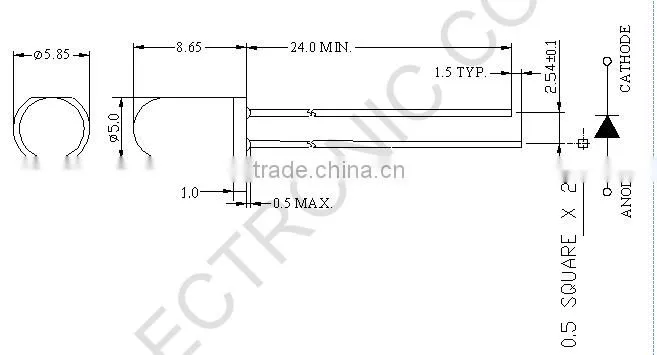

dimension of 5mm 940nm through hole led
Note:
1. All dimensions are in millimeters;
2. Tolerance is ±0.25 unless otherwise noted;
3. Lead spacing is measured where the leads emerge from the package;
4. Specifications are subject to change without notice
test item and results
Test Item |
Ref. Standard |
Test Condition |
Note |
Number of Damaged |
|
Resistance to Soldering Heat
|
JEITA ED-4701 300 301 |
Tsld=260℃, 10sec |
2 times |
0/50 |
|
Solder ability
|
JEITA ED-4701 300 303 |
Tsld=215±5℃, 3sec |
1time over 95% |
0/50 |
|
Thermal Shock
|
JEITA ED-4701 300 307 |
-40℃15min ↑↓ 100℃15min |
100cycles |
0/50 |
|
Temperature Cycle
|
JEITA ED-4701 100 105 |
-40℃ 30min ↓↑ 5min 100℃ 30min |
100cycles |
0/50 |
|
Moisture Resistance Cycle
|
JEITA ED-4701 200 203 |
65℃~25℃~ -10℃ 90%RH 24hrs./1cycle |
100cycles |
0/50 |
|
High Temperature Storage
|
JEITA ED-4701 200 201 |
Ta=100℃ |
1000 hrs |
0/50 |
|
High Temperature High Humidity Storage
|
JEITA ED-4701 100 103 |
Ta=60℃, 90%RH |
1000 hrs |
0/50 |
|
Low Temperature Storage
|
JEITA ED-4701 200 202 |
Ta= -40℃ |
1000 hrs |
0/50 |
|
Steady State Operating Life
|
|
Ta=25℃, IF=20mA |
1000 hrs |
0/50 |
|
Steady State Operating Life of High Temperature
|
|
Ta=85℃, IF=20mA |
1000 hrs |
0/50 |
|
Steady State Operating Life of High Humidity Heat
|
|
60℃, 90%RH, IF=20mA |
1000 hrs |
0/50 |
|
Steady State Operating Life of Low Temperature
|
|
Ta= -30℃, IF=20mA |
1000 hrs |
0/50 |
|
Drop
|
|
H=75cm |
3 cycles |
0/50 |
packaging of 5mm 940nm through hole led
1,500pcs/bag;
2,0.125kgs/bag
shipping of 5mm 940nm through hole led
1,we will delivery in 5-10 danys after payment.
2, we can find superior forwarders for you if you need.
3,you can choose:

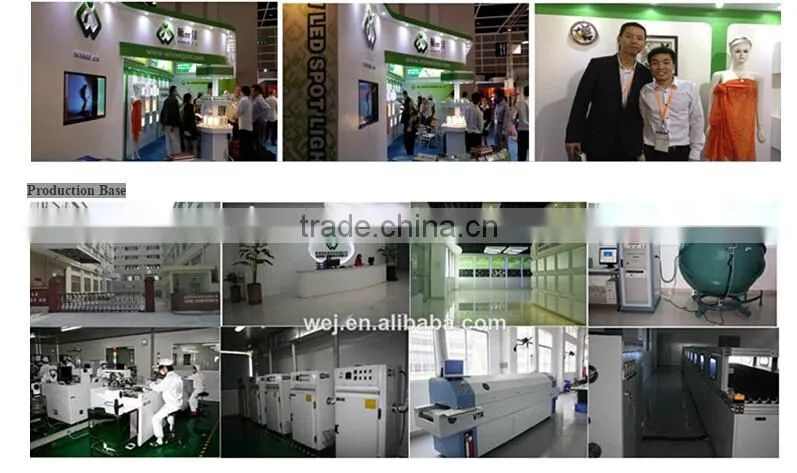

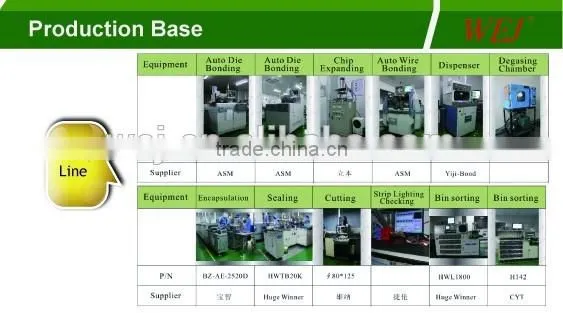

About us
we have over 10 years experience on leds.
we have professional and expert engineer team.
we have good capacity.
we will treat quality as life.
