Home > Lights & Lighting > LED Encapsulation Series > Lamp LED > Ultra Bright 3mm Blue Led Diffused With Wide Beam Angle
Ultra Bright 3mm Blue Led Diffused With Wide Beam Angle
US$ 0.022 - 0.029
MOQ: 20000 Pieces
Key Specifications
Get Latest Price
Model Number:
WEJ324BD-C76
Chip Material:
InGaN
Emitting Color:
Blue
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Super Brightness 10000mcd Round Type Through Hole Dip 5mm Led DiodeUS$ 0.018 - 0.024MOQ: 20000 Pieces -
5mm 0.1W 7000-8500K Pure White 5mm Led DiodeUS$ 0.02 - 0.04MOQ: 20000 Pieces
-
Water Clear Round Top Round Straw Hat 5mm LED Green DiodeUS$ 0.01 - 0.02MOQ: 10000 Pieces
-
Red and Green Water Clear 5mm Bi-color Led Lights Common AnodeUS$ 0.01 - 0.02MOQ: 10000 Pieces
-
he Best Selling Products Competitive Led Diode Prices From China Online ShoppingUS$ 0.01 - 0.02MOQ: 10000 Pieces
Model Number
WEJ324BD-C76
Chip Material
InGaN
Emitting Color
Blue
Luminous Intensity
1700mcd
Power
0.1W
Operating Temperature(℃)
-25, +85
Storage Temperature(℃)
-40, +100
Place of Origin
Guangdong, China
Brand Name
WEJ
Certification
CE
Specifications
3mm blue led diffused1.20mA,Vf:3.0-3.4V
2.Color:Blue Luminous intensity:1700mcd
3.Wavelength:460-475nm
4.ISO9001,CE,RoHS
Ultra bright 3mm blue led diffused with wide beam angle
Product Description
Electrical/Optical Characterisiecs Ta=25 ℃
| Parameter | Symbol | Condition | Value | Unit | ||
| Min | Typ | Max | ||||
| Forward voltage | Vf | If=20mA | 3 | 3.2 | 3.6 | V |
| Luminous intensity | Iv | If=20mA | 800 | 1700 | 3800 | mcd |
| Dominant wavelength | WD | If=20mA | 460 | --- | 475 | nm |
| Peak wavelength | PD | If=20mA | --- | 470 | --- | nm |
| Reverse current | Ir | Vr=5V | --- | --- | 10 | uA |
Absolute Maximum Ratings at Ta=25 ℃
| Parameter | Symbol | Value | Unit |
| Power dissipation | Pd | 120 | Mw |
| Forward Current | IF | 30 | mA |
| Peak Forward Current | Ifp | 100 | mA |
| Reverse Voltage | VR | 5 | V |
| Electro-Static-Discharge | ESD | 2000 | V |
| Operating Temperature | Topr | -25 to +85 | ℃ |
| Storage Temperature | Tstg | -40 to +100 | ℃ |
| Lead Solder Temperature | Tsol | 260 for 5sec | ℃ |
Package outline dimensions of 3mm blue led diffused:

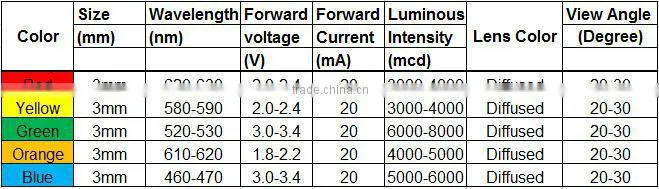

Other hot selling 3mm LED diffused models:
Packaging & Shipping
MPQ:1000pcs per bag,
Package: 1000pcs per bag, 60bags per carton. Carton size:56*29*31cm,GW/CTN:13.9kg
Production lead time: 2-3 working days for sample, 7-14 working days for mass order.
Our Services
1. Experienced R&D team,customized service is welcome.
2. Professional production process
3. Free samples support
4. Short lead time
5. Small order is acceptable.
Are you looking for more?
1.LED with holder

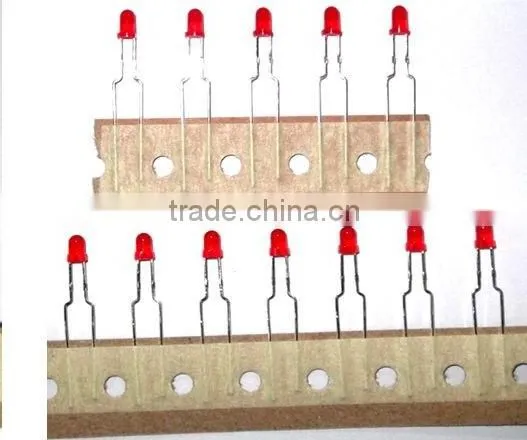

2.Forming and taping LED:
3000pcs per reel
