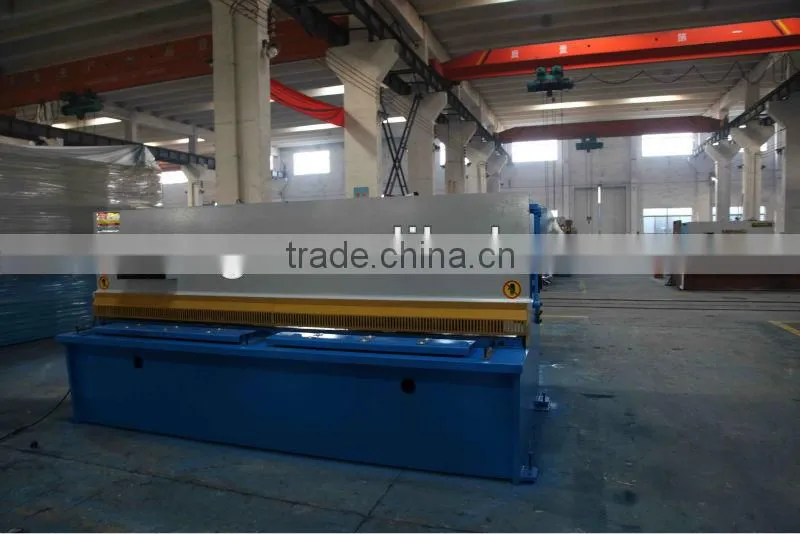

Shearing Machine QC12Y-8X3200

Name: Shearing Machine QC12Y-8X3200
Brand: Zhongwei
SKU: 130379903

Shearing Machine QC12Y-8X3200 thumbnail-1

US$ 10,000 - 12,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Zhongwei

Contact Supplier Request Quote Chat Now

Jiangsu Zhongwei Heavy Industry Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Jiangsu, China

Brand Name Zhongwei

Model Number QC12Y-8X3200

Voltage 380V/50HZ

Rated Power 7.5KW

Dimension(L*W*H) 3770X1745X1680

Weight 7T

Certification ISO9000

Warranty One years

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Plate welded construction; Vibration to eliminate stress; With high strength and good rigidity

Technical plan for Hydraulic Swing Beam Shear QC12Y—8×3200

Drawing for Hydraulic Swing Beam Shear QC12Y-8×3200

Performance

1,This machine adopts whole welded construction, it can eliminate the stress when vibrating, it with good rigid and perfect steady;

2,Adopts hydraulic driving, the blade’s swing running to carry out shearing, synchronism reliability, and steadily run;

3,The distance of blades adjust fast synchronism, and the dial show the value.

4,Back gauge moves fast, with hand light adjustment and numerical display;

5,With light indicate device, and it is easy for line and shearing;

6,Blade carrier with stepless adjustment, effectively improve the working effect.

Technical data

1,Max. Thickness                           8  mm

2,Max. width                              3200  mm

3,Strength of cutting plate                    450  N/mm2

4,Shearing angle                            1°30′

5,Stroke slide                              12  min-1

6,Blade length                             3300  mm

7,Height between working table and ground      800  mm

8,Main motor power                         11  kW

9,Motor power of back gauge                 0.55  kW

Components and constructions of the machine

1,Frame:Plate welded construction of Q235, with good rigidity and stability. Two oil cylinders are fixed on the two upper sides of the machine, and drive the blade carrier move up and down. There is secondary blade carrier on the working table for slightly adjusting the lower blade carrier. Also there are balls on the working table, and it makes the operation much easy.

2,Press cylinder

It consists of a set of cylinders fixed on the beam in the front of the beam. When the oil enters into the pressure cylinder, the pressure head press down after overcoming the spring, and tighten the plate. It reset by the spring after it shearing the plate.

3,Front and back gauge

Front gauge is fixed on the working table, and indicates by ruler. And it can be adjusted by the moveable block to meet the needed values.

Back gauge is fixed on the lower position of the upper blade carrier beam, and swings up and down according to the upper blade carrier. The adjustment of back gauge is driving by motor, and then through the reduction box. It is showed by the numerical display. Also, it can be adjusted by handwheel.

4,Hydraulic system: It consists of control valves, oil pump, oil cylinder, pressure cylinder, return cylinder and so on.

5,Electric: It consists of electric control box, center connecting wires, control face plate, motors, foot trample and so on.

6,Main parts of the machine

1) Main electric elements:Siemens;

2) Hydraulic valves: ShanDong Jining Taifeng;

3)Oil pump: Shanghai High Pressure Pump Factory

4)Seal rings:VALQUA from Japan;

5)Main motor:Nantong Hengli Motor Factory;

Acceptance standards

National standards:GB/T 14349-93 Shearing Machine Brake Precision and attached technical files.

Attached technical files

1,Operation manual(Hydraulic principle drawings, Electric principle drawings, Foundation drawings);

2,Certificate;

3,Packing list(Includes attached files).

Delivery time:25 days.

Installation, test, acceptance and after service

1. Seller should inform the buyer to exam the machine in our factory after the machine is finished.

2. Seller should supply corresponding files and foundation drawings in 7 days after confirming the order.

3. If buyer needs the installation, test by seller, then the charges in China will be taken by seller. And charges out of China, such as tickets, and hotels, should be taken by the buyer.
