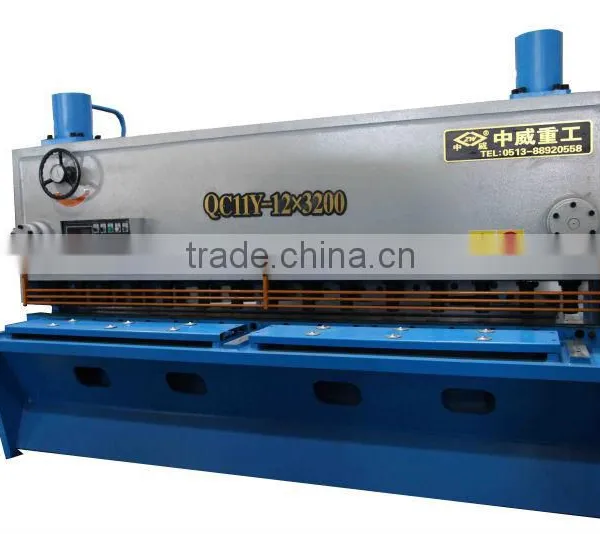

Help CenterQC11Y-12x3200 Hydraulic Guillotine Shearing Machine
Related Products
-
QC11Y-8*3200 Hydraulic Guillotine Shearing MachineUS$ 12,500 - 15,000MOQ: 1 Set -
QC11Y-20*6000 Hydraulic Guillotine Shearing MachineUS$ 100 - 100,000MOQ: 1 Set
-
QC11Y30*2500 Hydraulic Guillotine Shearing MachineUS$ 100 - 100,000MOQ: 1 Set
-
QC11Y6*2500 Hydraulic Guillotine Shearing MachineUS$ 100 - 100,000MOQ: 1 Set
-
QC11Y6*3200 Hydraulic Guillotine Shearing MachineUS$ 100 - 100,000MOQ: 1 Set
Specifications
The machine is with good quality,best price and good after-sale service.
Main features and usages of the machine
1.The machine adopts plate welded construction, eliminate the stress, with good rigidity and stability;
2.Adopts blade clearance adjusting system. It is much fast and easy to adjust it.
3.Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce
deformation of sheet.
4.Upper blade holder has inward tilting structure to facilitate material falling and to enhance working accuracy.
Function of shearing in sections and aligning with light.
5,Mechanical back gauge with manual fine tuning, and digital indication.
6.Integrated hydraulic transmission system, pneumatic linked return, with good reliability.
Parameters:
No |
Name |
Data |
Unit |
Remarks |
1 |
Max thickness of cutting plate |
20 |
mm |
|
2 |
Max width of cutting plate |
2500 |
mm |
|
3 |
Strength of cutting plate |
450(Q235) |
N/mm2 |
|
4 |
Length of blade |
2600 |
mm |
|
5 |
Cutting angle |
3° |
||
6 |
Throat depth |
100 |
mm |
|
7 |
Number of stroke |
5-15 |
min-1 |
|
8 |
Range of backgauge |
750 |
mm |
|
9 |
Main motor power |
30 |
kw |
Within 30 working days after payment.
It equip with front support material device and it is convenient to store and transport.
1.After finished the producing of the machine, we will inform the buyer to inspect the machine in the manufacture’s factory.
2.We provide some documents and foundation drawing within 7 days after contract date.
3.If need seller to guidance the installation, adjustment and trial, the seller is responsible for the charges within home, and
other charges on board should be paid by the buyer.

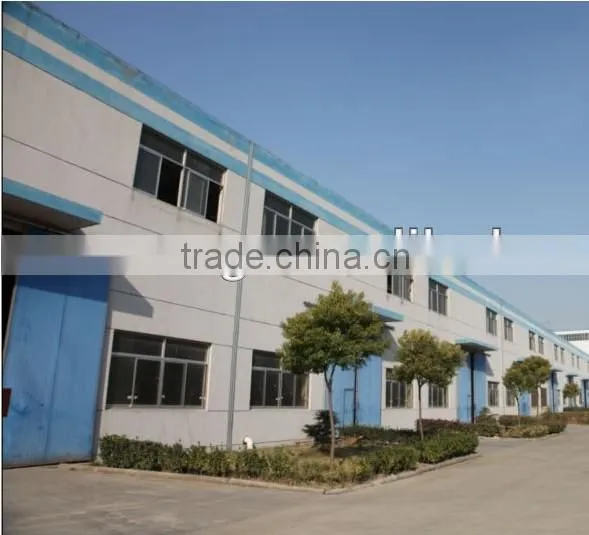

Zhongwei has forty years company history,it recorded the glorious development of shearing,press and rolling machine.Zhongwei is located in globals
economically developed Changjiang Delta.It is east to Yellow Sea,south lean on Changjiang River,west to Ningyang and north to Yanfu,the superior
geographical advantages supply the company’s development with good element.Zhongwei is bursting out of the booming energy,ranked the top 30
largest taxpayer,we won the “national high and new technology enterprise”.
Our company has participated in the Carton Fair for many times, meet ing friends from all around the world, and exported machines to the United States, India, Russia, Mexico, Vietnam and so on.
