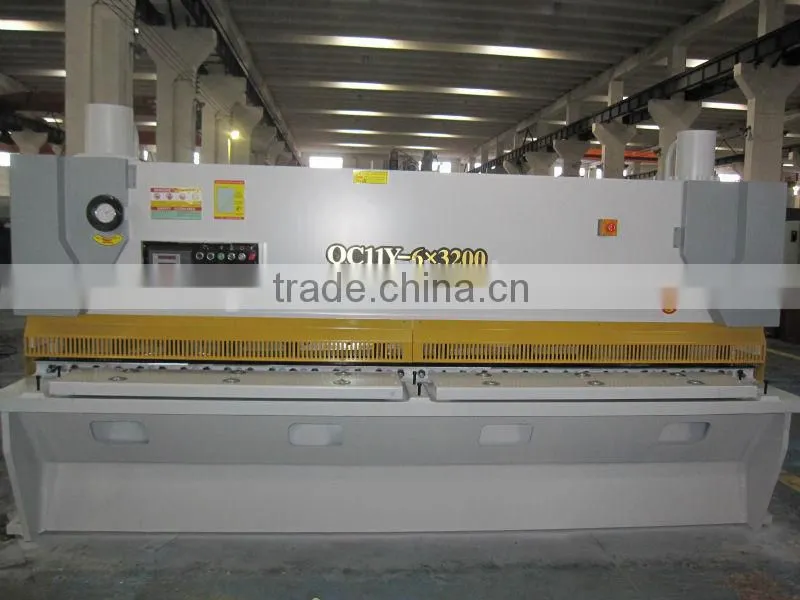

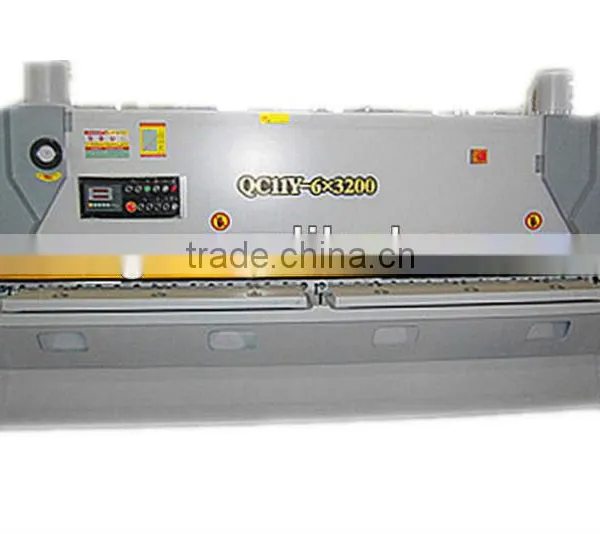

Help CenterQC11Y-6*3200 Hydraulic Shearing Machine
Related Products
-
QC11Y-20*9000 Guillotine Shearing MachineUS$ 160,000 - 170,000MOQ: 1 Set -
QC12Y-12*6000 Shearing MachineUS$ 45,900 - 52,400MOQ: 1 Set
-
QC12Y-8*3200 Shearing MachineUS$ 12,300 - 13,900MOQ: 1 Set
-
QC11K-20*12500 Guillotine Shearing MachineUS$ 295,000 - 310,000MOQ: 1 Set
-
QC12Y-16*4000 Shearing MachineUS$ 24,500 - 27,800MOQ: 1 Set
Specifications
this machine can make with DRO E10, or NC control E200, or CNC system from Holland Delem company: DAC310. DAC350. or DAC360 etc.Main features and usages of the machine
1,The machine adopts plate welded construction, eliminate the stress, with good rigidity and stability;
2,Adopts blade clearance adjusting system. It is much fast and easy to adjust it.
3,Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of sheet.
4,Upper blade holder has inward tilting structure to facilitate material falling and to enhance working accuracy. Function of shearing in sections and aligning with light.
5,Mechanical back gauge with manual fine tuning, and digital indication.
6,Integrated hydraulic transmission system, pneumatic linked return, with good reliability.
Parameters:
1,Shearing thickness 6 mm
2,Shearing width 3200 mm
3,Strength of shearing plate 450 N/mm²
4,Shearing angel 0.5~2°
5,Blade length 3300 mm
6,Stroke number 6-18 min-1
7,Back gauge range 600 mm
8,Depth of throat 100 mm
9,Main motor power 7.58 KW
10,Axial plunger pump 25MCY14-1B
Components and constructions of the machine
1,Frame:Plate welded construction, with good rigidity and stability. Two oil cylinders are fixed on the two upper sides of the machine, and drive the blade carrier move up and down. There is secondary blade carrier on the working table for slightly adjusting the lower blade carrier. Also there are balls on the working table, and it makes the operation much easy.
The guider of upper blade carrier is rolling one. And the pre-bending spring fixed on the supporting axis eliminate the guider clearance. It improves the accuracy of the machine.
2,Adjustment of blade clearance
The supporting roller fixed on the blade carrier is eccentric shaft. You can adjust it and let the blade carrier moves forward and backward to adjust the blade carrier.
There is dial fixed on the machine. The dates on the dial are the thickness of the shearing plate. Users can read the numbers on it and choose a correct one.
3,Press cylinder
It consists of a set of cylinders fixed on the beam in the front of the beam. When the oil enters into the pressure cylinder, the pressure head press down after overcoming the spring, and tighten the plate. It reset by the spring after it shearing the plate. Pressure reduce or increase according to the thickness of the plate.
4,Front and back gauge
Front gauge: It is fixed on the working table, and indicates by ruler. And it can be adjusted by the moveable block on the left and right of the carrier frame to meet the needed values.
Back gauge: It is fixed on the lower position of the upper blade carrier beam, and moves up and down according to the upper blade carrier. The adjustment of back gauge is driving by motor. Press the button “+”or“-” to adjusting the back gauge. The back gauge is showed by the numerical display on the left side of the beam.
The range of back gauge is 20-600mm.
5,Hydraulic system: It consists of control valves, oil pump, oil cylinder, pressure cylinder, return cylinder and so on.
6,Electric: It consists of electric control box, center connecting wires, contreo face plate, motors, foot trample and so on.
7,Main parts of the machine
1 Main electric elements:Germany Siemens(made in China);
2 Hydraulic valves: American OMG brand (made in China);
3 Oil pump: Shanghai High Pressure Pump Factory
4Seal rings:VALQUA from Japan;
5Main motor:Germany Siemens(made in China)
6Blade: Material 6CrW2Si.
