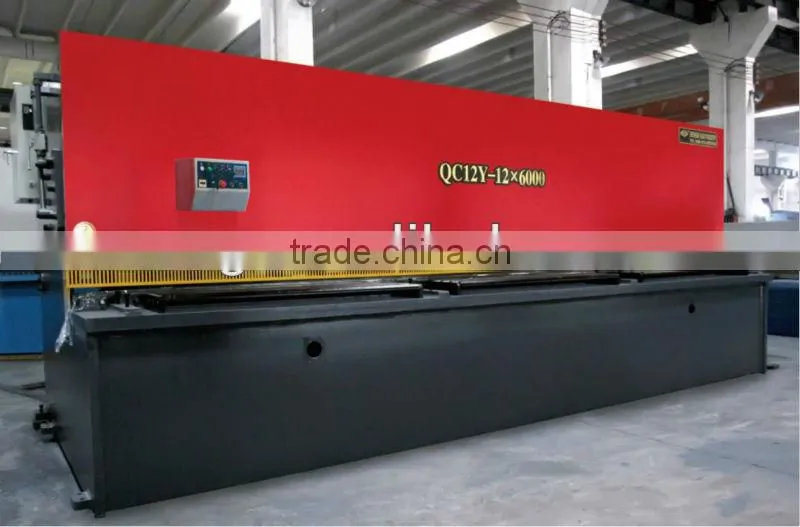

Help CenterQC12Y-12*6000 Shearing Machine
Related Products
-
QC12Y-8*3200 Shearing MachineUS$ 12,300 - 13,900MOQ: 1 Set -
QC11K-20*12500 Guillotine Shearing MachineUS$ 295,000 - 310,000MOQ: 1 Set
-
QC12Y-16*4000 Shearing MachineUS$ 24,500 - 27,800MOQ: 1 Set
-
CNC Guillotine Shearing MachineUS$ 295,000 - 310,000MOQ: 1 Set
-
QC11Y-25*3200 Hydraulic Shearing MachineUS$ 34,000 - 50,900MOQ: 1 Set
Specifications
this model shearing machine can be swing beam, or guillotine type, as customer's request.Performance
1,This machine adopts whole welded construction, it can eliminate the stress when vibrating, it with good rigid and perfect steady;
2,Adopts hydraulic driving, the blade’s swing running to carry out shearing, synchronism reliability, and steadily run;
3,The distance of blades adjust fast synchronism, and the dial show the value.
4,Back gauge moves fast, with hand light adjustment and numerical display;
5,With light indicate device, and it is easy for line and shearing;
6,Blade carrier with steepless adjustment, effectively improve the working effect.
Technical data
1,Max. Thickness 12 mm
2,Max. width 6000 mm
3,Strength of cutting plate 450 N/mm2
4,Shearing angle 1°45′
5,Stroke slide 4 min-1
6,Blade length 6050 mm
7,Height between working table and ground 1180 mm
8,Main motor power 18.5 kW
9,Motor power of back gauge 1.1 kW
10,Gear pump NT5-G50F
11,Overall dimension 6700*2750*2600mm
12,Weight about 28500kgs
13,Cylinder diameter 160mm
Components and constructions of the machine
1,Frame:Plate welded construction of Q235, with good rigidity and stability. Two oil cylinders are fixed on the two upper sides of the machine, and drive the blade carrier move up and down. There is secondary blade carrier on the working table for slightly adjusting the lower blade carrier. Also there are balls on the working table, and it makes the operation much easy.
2,Press cylinder
It consists of a set of cylinders fixed on the beam in the front of the beam. When the oil enters into the pressure cylinder, the pressure head press down after overcoming the spring, and tighten the plate. It reset by the spring after it shearing the plate.
3,Front and back gauge
Front gauge is fixed on the working table, and indicates by ruler. And it can be adjusted by the moveable block to meet the needed values.
Back gauge is fixed on the lower position of the upper blade carrier beam, and swings up and down according to the upper blade carrier. The adjustment of back gauge is driving by motor, and then through the reduction box. It is showed by the numerical display. Also, it can be adjusted by handwheel.
4,Hydraulic system: It consists of control valves, oil pump, oil cylinder, pressure cylinder, return cylinder and so on.
5,Electric: It consists of electric control box, center connecting wires, control face plate, motors, foot trample and so on.
6,Main parts of the machine
1 Main electric elements: Germany Siemens(made in China) ;
2 Hydraulic valves: American OMG brand(made in China);
3 Oil pump:gear pump
4Seal rings:VALQUA from Japan;
5Main motor:Germany Siemens(made in China);
6Blade: Material 6CrW2Si.
