Specifications
This machine is with good quality and best price,we can supply you with the best service.

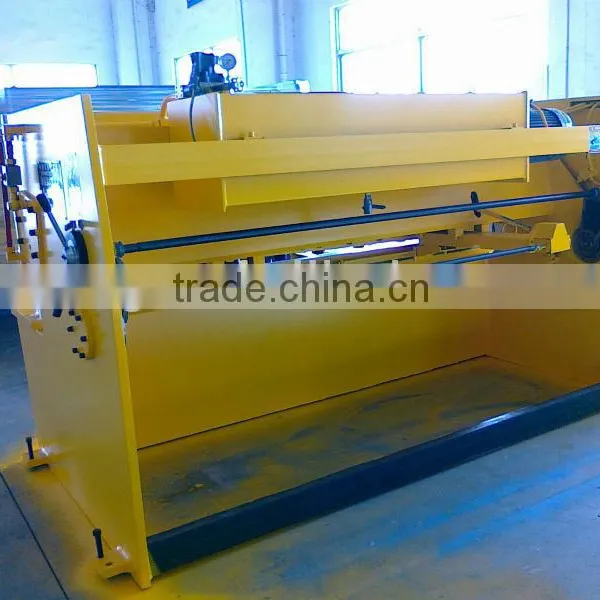

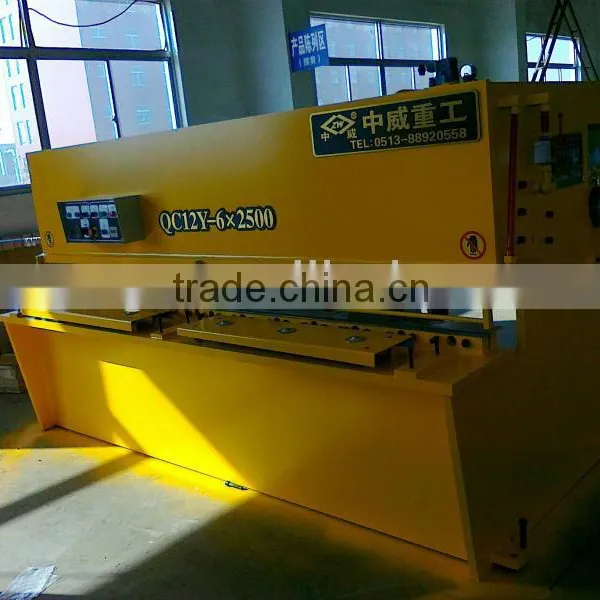

QC12Y-6×2500Hydranlic Swing Shearing Machine
Technical Scheme
One.Performance
1,This machine adopts whole welded construction, it can eliminate the stress when vibrating, it with good rigid and perfect steady;
2,Adopts hydraulic driving, the blade’s swing running to carry out shearing, synchronism reliability, and steadily run;
3,The distance of blades adjust fast synchronism, and the dial show the value.
4,Back gauge moves fast, with hand light adjustment and numerical display;
5,With light indicate device, and it is easy for line and shearing;
6,Blade carrier with steepless adjustment, effectively improve the working effect.
Two,Technical parameter
1,cutting thickness 6mm
2,cutting width 2500mm
3,strength of sheet 450N/mm2
4,shearing angle 1°30′
5,times of travel 17min-1
6,blade length 2600mm
7,height of working table to ground 800mm
8,main motor 7.5KW
9,back gauge motor 0.55KW
10,axis plunger pump 25MCY14-1B
Three.Components and constructions of the machine
1,Frame:Plate welded construction of Q235, with good rigidity and stability. Two oil cylinders are fixed on the two upper sides of the machine, and drive the blade carrier move up and down. There is secondary blade carrier on the working table for slightly adjusting the lower blade carrier. Also there are balls on the working table, and it makes the operation much easy.
2,Press cylinder
It consists of a set of cylinders fixed on the beam in the front of the beam. When the oil enters into the pressure cylinder, the pressure head press down after overcoming the spring, and tighten the plate. It reset by the spring after it shearing the plate.
3,Front and back gauge
Front gauge is fixed on the working table, and indicates by ruler. And it can be adjusted by the moveable block to meet the needed values.
Back gauge is fixed on the lower position of the upper blade carrier beam, and swings up and down according to the upper blade carrier. The adjustment of back gauge is driving by motor, and then through the reduction box. It is showed by the numerical display. Also, it can be adjusted by handwheel.
4,Hydraulic system: It consists of control valves, oil pump, oil cylinder, pressure cylinder, return cylinder and so on.
5,Electric: It consists of electric control box, center connecting wires, control face plate, motors, foot trample and so on.
6,Main parts of the machine
1.Main electric elements:Siemens;
2. Hydraulic valves: SHANGHAI YEER HYDRAULIC CO., LTD;
3 Oil pump: Shanghai High Pressure Pump Factory
4Seal rings:VALQUA from Japan;
5.Main motor:Siemens beide motor
6Blade: Shanghai Jinshan, Material 6CrW2Si.
Four.Acceptance standards
National standards:GB/T 14349-93(Shearing Machine Brake Precision)and attached technical files.
Attached technical files
1,Operation manual(Hydraulic principle drawings, Electric principle drawings, Foundation drawings);
2,Certificate;
3,Packing list(Includes attached files).
After service
1. Seller should inform the buyer to exam the machine in our factory after the machine is finished.
2. Seller should supply corresponding files and foundation drawings in 7 days after confirming the order.
3. If buyer needs the installation, test by seller, then the charges in China will be taken by seller. And charges out of China, such as tickets, and hotels, should be taken by the buyer.
