Specifications
Digital color smd LED RGB pixel module1.DC12V
2.IP Rating:IP66
3.LED Type:SMD 5050 led
4.Diameter:45m

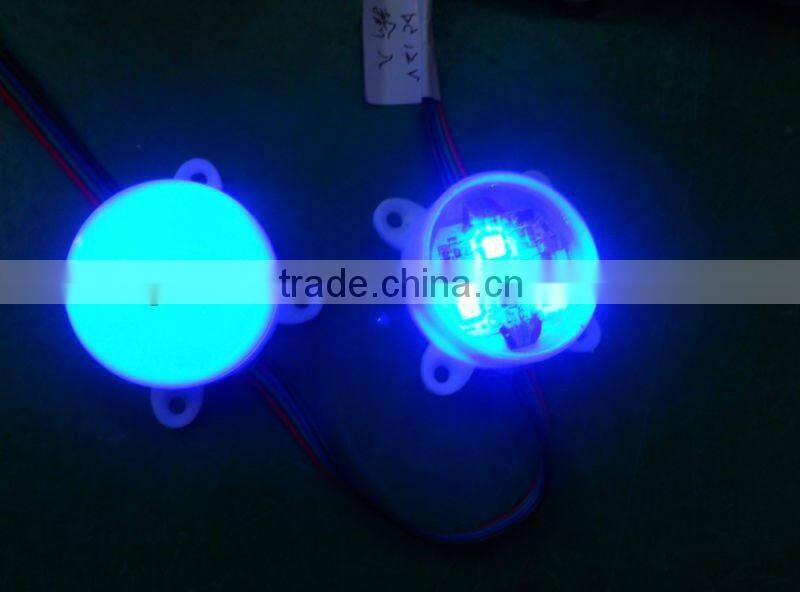

Digital color smd LED RGB pixel module
1.3pcs SMD5050 Epistar Chip

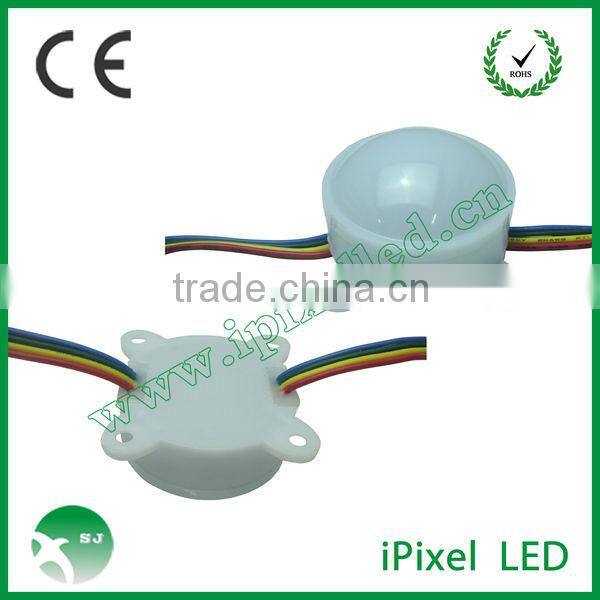

2.Plastic cover, Transparent and Milky white cover.
3.2 years experience on Led Sign module, Led dot Matrix point pixel light
4.Cheap price factory in Shenzhen shiyan
5.SD Controller
Advantages
1.Direct from factory DMX&matrix LED RGB IC color changing pixel light
2.RGB pixel LPD6803/WS2801
2.Epistar chip with 50.000 hours
3.CE/RoHS
4. from factory with 1-7 working days delivery
5.Patent LED Pixel light
6.OEM/ODM accept
7.Pixel light with DMX 512
SJ-45-ICRGB Series
Product Feature
1.SJ-45-ICRGB is a combination of a plastic (thermostability,cold-resistant,resistant to UV) shell and PCB board,also 4 spell line with blue,green,yellow,red ntain 1PCSΦ3RGBLED.
2.This product can achieve effects of full-color running water,chasing and scanning. Depending on the different installation methods may compose different dynamic effect of different color's character and design.
3.Easy installation, high brightness, safe and energy conservation, long lifespan,Low brightness declines.
4.Widely used in LOGO, advertising billboard,exposed luminous characters, painted screen, can replace the traditional neon signs. The distance between the lights can be choosed as customer's request.

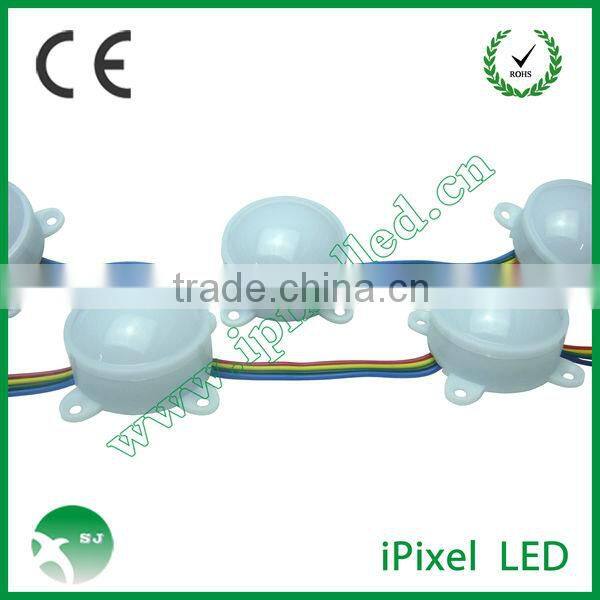

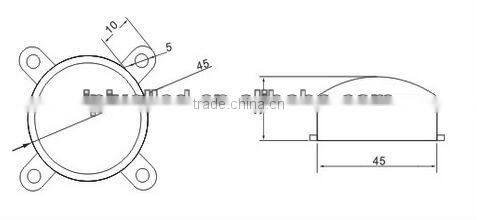

5.This product could be linked up to 20pcs. Punching diameter is 45mm. The diameter of the power cord should bebased on the actual maximum current, the product power, cabling length (recommended no more than 5 meters), and the voltage of transmission line.
Specification
| Items | LED Qty | Color |
Wavelength Scope(nm/K) |
LED |
PCB dimension |
units |
| SJ-45-ICRGB | 3 | Red | 619-635K | 3pcs SMD5050 | 45mm diameter | 20pcs |
SJ-45-ICRGB Full color led single light Parameter
| Items | Parameter | Units |
| Vlotage | DC12 | V |
| Power | 0.72 | W |
| Temperature | -40-60 | °C |
| IP grage | IP66 | |
| demension | 45 | mm |
| lifespan | 50000 | hours |
| View angle | 140 | °C |
Technical Parameter of controller
| Items | Parameter |
| Input Voltage | AC110V/220V(configurate according to end-user) |
| Battery Plug | GB, UK, U.S. regulations, etc.(configurate according to end-user) |
| Power dissipation | 2w |
| Control Protocol | ICC,DMX512/1990 |
| Stand by IC | LPD6803,WS2801,DMX512 Decoder/ Driver |
| Control points | 1200 points 2048 points 512 address(channel) |
| Gray scale | 32 level, 256 level |
| SD card | Support FAT or FAT16 files system |
| Working Temperature | –35°C—75°C |
| Play speed | Default 20 frames / sec; DIP switch can switch between 1-40, 8-level speed adjustable |
| Indicator light | power indicator light(Green,Power),Play speed light(Red,State) |

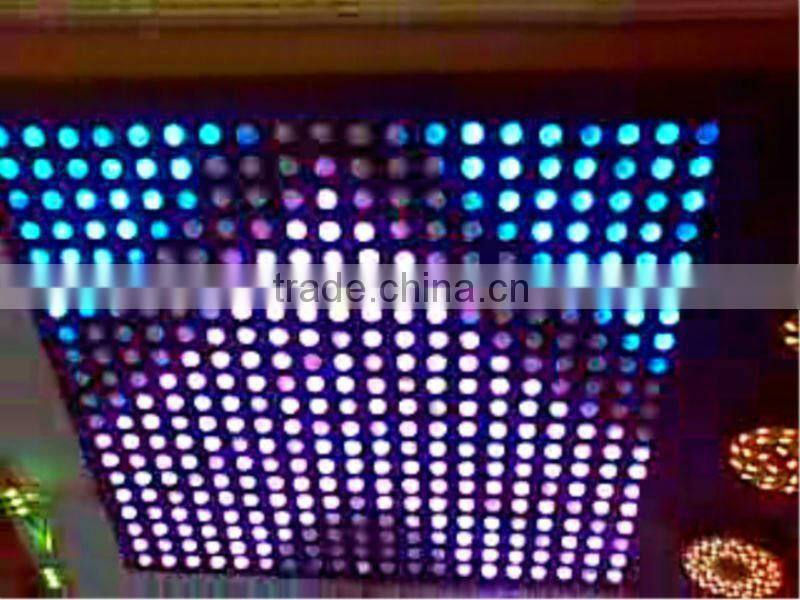

LED Pixel Module light Applications
1.channel letter
2.Advertisements sign
3.KTV,Disco
4.LOGO, advertising billboard,exposed luminous characters
5.LED display screen, painted screen
Trade Terms
1.Payment: T/T 100% in advance T/T,Western Union
2.Production lead time: 1 - 7 Working Days
3.Sample can be delivered in 3days
4.Shipping freight are quoted under your requests
5.Shipping port: Shenzhen, Mainland China
6.MOQ: 100 pcs
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
