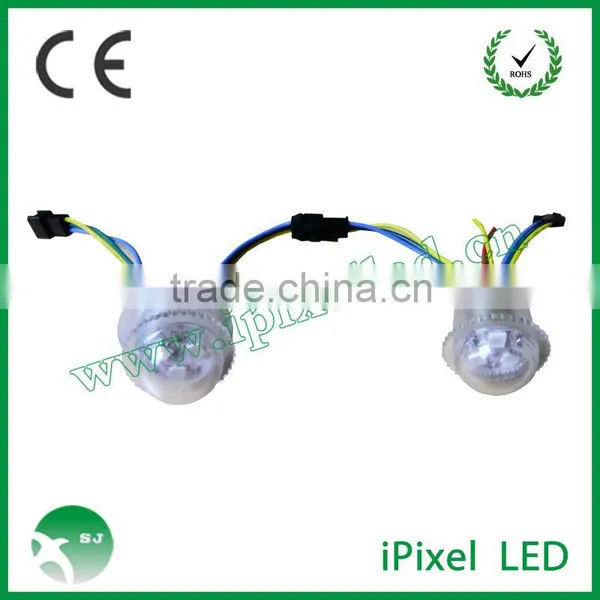

Waterproof Smd 5050 Pixel Rgb Led Bulb DC 12V for KTV , Bar , Amusements Ect

Waterproof Smd 5050 Pixel Rgb Led Bulb DC 12V for KTV , Bar , Amusements Ect thumbnail-1
Waterproof Smd 5050 Pixel Rgb Led Bulb DC 12V for KTV , Bar , Amusements Ect photo-1
US$ 0.8 - 1.2 MOQ: 20 Pieces
Key Specifications
Get Latest Price
LED Light Source:
epistar
Input Voltage(V):
DC
Lamp Power:
0.72
Contact Supplier Request Quote Chat Now
Shenzhen Centuryled Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source epistar
Input Voltage(V) DC
Lamp Power 0.72
Lamp Luminous Flux(lm) 16-19
Lamp Luminous Efficiency(lm/w) 25
Color Temperature(CCT) Warm White
Working Temperature(℃) -40, 40
Working Lifetime(Hour) 50000
Lamp Body Material PVC
IP Rating IP67
Certification CE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name sj
Model Number sj-26-ICRGB

Specifications

1 dmx 512 led pixel
2 addressable
3 factory direct price
4 Matrix ,artnet ,arduino compatible
5 2 years warranty

P66 DC12V  rgb led pixel light string(outdoor led signboard)



26mm LED Video Point Light
1.DC12V.0.72W/pcs
2.UCS1903 IC chip
3.Waterproof IP66
4.20pcs/string

Features:



RGB Pixels are digitally-controllable lights you can set to any color, or animate
Each RGB LED and controller chip is molded into a 'dot' of silicone.
The dots are waterproof and rugged.
There are four flanges molded in so that you can 'push' them
into a 26mm drill hole in any material up to 1.5mm/0.06" thick
They're typically used to make outdoor signs. Compared to our other  LED dots
The pixels are connected by a 3-conductor cable. Blue is +12V, Yellow is Ground, Green is Data
Data is shifted down from one pixel to the next so that you can easily
connect to  the strand or attach more onto the end.



the  datesheet



Model NO.

SJ-219

IC chip

UCS1903

Power Consumption

0.72W

Work Voltage

DC 12V

Beam Angle

≥120

LED Quantity

3 smd  5050 led

Color

Full color (ICRGB)

shape

round

Waterproof Grade

IP66

Work Temperature

-40-+60°C

Life-span

50,000H

Certificate

CE&RoHS

Warranty

2 years



Applications:



Cove and cornice lighting

Channel lighting

POP advertising

Backlight or edge-light for signage

Stair and contour marking

Mood and effect lighting

Counter, bars, and reception desks lighting

LED Display

Project video:  1.  /watch?v=hneOc43mMrA

2.  /watch?v=GSbrHL_ULtE



LEDs Advantage:



1. Green lighting,with CE&RoHS,DC5V input,50pcs per strand or as customer requirement

2. Energy saving, saving 50% ,0.3W,8cm distance between each LEDs

3. WS2801 IC,256 gray leval with more pixel flash and animations.



LEDs Attention:



 Part 1   LED is 50pcs per string.8cm wire between each LED,punching diameter is 12mm

 Part 2   Installation to avoid the risk of electric shock.

 Part 3   LED lamp,if any, when deformed or damaged,replace.

 Part 4   This LED has different IC model,please notice different IC different wire define
 Part 5   LED input voltage is DC5V,used the sd-card controller normally,DMX compatiable.
 Part 6   It is not suitable for use in the climax of the environment in the high humidity





the  images





waterproof smd 5050 pixel rgb led bulb DC 12V for KTV , bar , amusements ect







the  other  images



waterproof smd 5050 pixel rgb led bulb DC 12V for KTV , bar , amusements ectwaterproof smd 5050 pixel rgb led bulb DC 12V for KTV , bar , amusements ect



 waterproof smd 5050 pixel rgb led bulb DC 12V for KTV , bar , amusements ectwaterproof smd 5050 pixel rgb led bulb DC 12V for KTV , bar , amusements ect


the connection  of  SD controller in work









 DMX512  Artnet  controller working  photos







the  packing
