Specifications
RGB LED strip digital led strip 60/m WS2812B1.5050 LED
2.DC 5 volt input
3.60 LEDs/m
4.WS2812B/WS2812S chip available
RGB LED strip digital led strip 60/m WS2812B
Spec.data
5050 smd rgb led strip ws2812B;
Input voltage :DC5v;
Power: 14.4watt/meter, 72watt/roll;
LED resource:High brightness 5050 RGB;
Q'ty of LED:60leds/meter, 300leds/roll, each LED is separately controlled;
IC Type: WS2812B IC(built inside the 5050 smd rgb led) ;
Q'ty of IC: 60IC/meter (1 IC drives 1 led chip);
Pixels:60/meter;
Pitch: .25mm(1000/32);
Grey scale: 256;
Bits/color: 8-bits/color;
FPC size: Width: 10mm, High: 2.5mm;
FPC color: white & black;

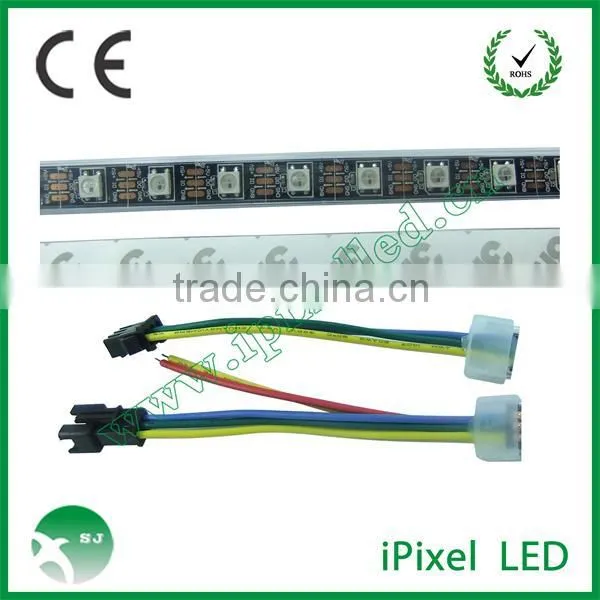

Connection:+5v(blue),DAT(green),GND(yellow),3pin JST SM connector,extra power wire without connector +5v(red)&GND(yellow)
Protection rate: IP20/IP65/IP68;
Colors: Full color RGB, dream color changing;
Cuttable:every LED is cuttable;
Package: 5meters/reel in anti-static bag.
Control System
Compatible with Arduino and DMX512.
Featrue
Excellent, high quality intelligent lighting! Based on high quality SMD5050 RGB LEDs embed(Built-in) integrated WS2812B control ICs, each LED is independently addressable (60 individually addressable LEDs in 1 meter), opening up entirely new lighting possibilities.
Protection Rate
IP20--No waterproof ,for interior use
IP65---Epoxy coating /Silicone tube (easy maintance ) ,for exterior use
IP68---Silicone filled in silicone tube ,can work underwater( not recommended)
Packing
5 meter per roll, packing in antistatic bag.
58 rolls each carton
Weight:0.2KG/IP20,0.4KG/IP65
Difference between WS2812B & WS2812S
General description
WS2812S/WS2812 family is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. effectively ensuring the pixel point light color height consistent.
The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel,the signal to reduce 24bit. pixel adopt auto resha-ping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.
LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.
Product upgrading
WS2812B is the development and new generation of product based on WS2812/WS2812S.It not only inherited all the good qualities of WS2812/WS2812S but also improved the IC from mechanical arrangement outside to the structure inside, further enhance the stability and efficiency.

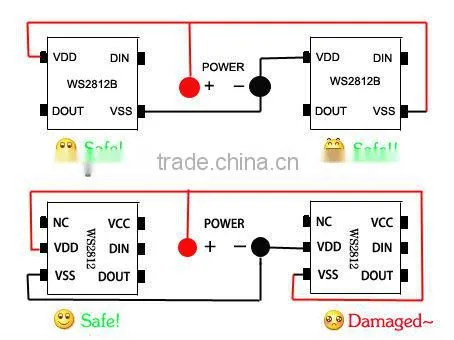

1. Safety performance comparison.
Compared to the WS2812/WS2812S WS2812B, we add a reverse protection circuit. It will ensure you to reverse connection of power supply without any damage to the product, to increase the stability of the product which in effect.
Graphical representation:
2.Mechanical properties comparison.
Through drawing comparison, it is easy to find that the,, WS2812B WS2812/WS2812S consistent in size, but the PAD number of the former are reduced to 4 Pin, with the decrease of the spacing between adjacent legs increases greatly, reduces circuit applications due to some causes problems such as short circuit. an the chip power supply PIN( VDD) and VSS are arranged diagonally, when in PCB layout area of copper foil bearing power, the power and ground can be very wide, power capacity is stronger, the higher the stability.
3.The brightness is higher.
An extrude advantage of is that the RGB chip on WS2812B has a higher brightness and color uniformity than WS2812/WS2812S.
4.Internal structure improved.
WS2812B has a better structure than WS2812/WS2812S, after we modified the structure, the control circuit and the RGB light have been separated, it has a better heat dissipation performance. The two modules work independently, one does not relate to the other, line distance is shorter and makes the work more stable than that of before.
