digital RGB LED weatherproof strip 60LED-1m black/white PCB board

Specifications

digital RGB LED weatherproof strip
dc5v 14.4w/m
each ic inserted in LED
ws2811 ic
dmx ,artnet ,sd card controller

Digital RGB LED Weatherproof strip WS2812B





Features



Brand New Smart RGB Pixel Strip Light---IC Built-in WS2811 Digital LED Strip

1.Each SMD 5050 has an IC(WS2811) inserted in ,each LED individually address controlled

2.The latest 4pin LED lamps(ws2812b) for the digital strips

3.you can design many different lighting effects and animations you want

4.This is the highest resolution for the moment

5.Controller ,Power supply are avalible





Specificaions



Product Name	Digital RGB LED Weatherproof strip WS2812B
Model NO.	SJ-10060-2811
IC Model	WS2811
Power Consumption	14.4W/M
Working Voltage	DC5V
PCB Color	Black/White
LED Qty	60  leds
Emitting Color	Changeable
IP Grade	IP66
Working Temperature	-40-60°c
Life-Span	≥60,000h
Certificate	CE&RoHS
Warranty	2 years
Controller	DMX ,Arduion,SD card





Controller System



1.Offline Controller:SJ-T-1000S,SJ-T-8000C for off-line working ,can control max 2048,8192 pixels

2.Online Controller:SJ-T-200K,300K for on-line working ,can controller max 4096,8192 pixels

3.Compatible with DMX,arduion





Connection

1.Signal wire:DC+,DAT,GND

2.DC+ and GND connnect to power ,DAT and GND connect to controller

3.Relative controller:SPI controller support  ws2811,when use DMX decorder ,can connect to DMX system

4support online controller





Product Images

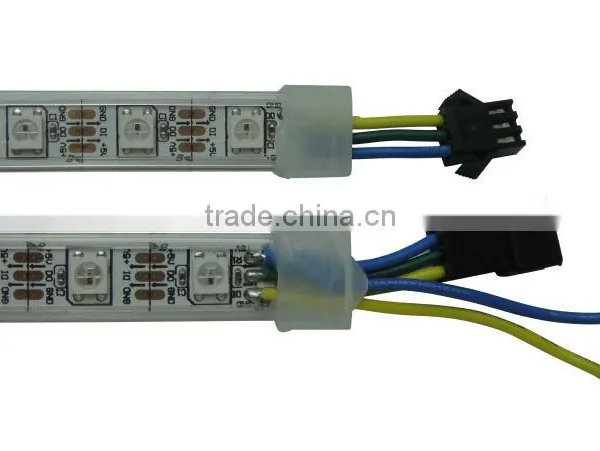

Signal Define and Connectors:









Waterproof Level available:



IP40--Non waterproof ,for interior use



IP65---Epoxy coating,easy cut,exterior use



IP67---Silicone tube,need reseal after cut,exterior use



IP68---can work underwater



Check where led strips are used:



1.Edge lighting



2.Cabinet lighting



3.Cove lighting



4.Wall color wash lighting



5.Residential kitchens



6.Decorative lights for holiday, event, show, exhibition



7.Automobile and bicycle decoration





Application







package



Thanks for your  attention
