Specifications
1.60 leds per meter2.DC5V
3.14.4W
4.smd 5050
5.black and white PCB both available
ws2812b IP65 5m addressable each led embedded with ws2811IC
Features:
1)60 leds per meter
2)1 integrated RGB LEDs per segment, individually controllable
3)5VDC power requirement
4)10mm wide self-adhesive Tape
5) over 50,000 hours life expectancy
Specification:
Input Voltage: |
5VDC |
Max Power Consumption: |
14.4W per mtr |
LED Quantity: |
60 per mtr |
LED Classification: |
Pixel RGB SMD |
IC Type |
WS2811 |
Viewing Angle: |
120° |
Standard Reel Length: |
5mtr |
Custom Lengths Available: |
Yes |
Dimensions: |
1000mm(L) x 10mm(W) x 7mm(H) |
Operating Temperature: |
-20 ~ +60°C |
Storage Temperature: |
-40~+80 °C |
IP Rate: |
non-waterproof,IP65,IP67,IP68 |
| Material: | Super slim flexible PCB |
| PCB Color: | Black and White both avaliable |
| Flexibility: | 360° |
| Brand: | SJ or OEM |
Description:
1.The tape is extremely thin with a depth of just 3mm. It has a 3M self-adhesive backing so
is easily applied to most smooth surfaces by simply removing the backing paper
2.The LEDs used in the tape are 3 Chip SMD LEDs like the ones uses to backlight the screens
of the latest Mobile Phones and MP4 Players
3.The LEDs are encapsulated in resin for a splashproof seal
4.There are 60 RGB LEDs per meter, you can control each LED individually.This is the digitally
addressable type of LED strip. You can set the color of each LED's red,green and blue
5.The tape can be cut or joined, connections and cutting points are at 1 LED
Detailed Images:

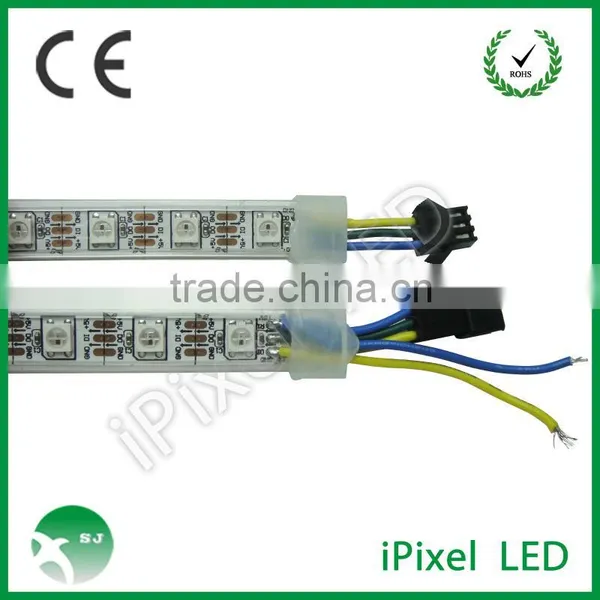

Signal Define and Connectors:
Waterproof Level available:
IP40--Non waterproof ,for interior use
IP65---Epoxy coating,easy cut,exterior use
IP67---Silicone tube,need reseal after cut,exterior use
IP68---can work underwater
Check where led strips are used:
1.Edge lighting
2.Cabinet lighting
3.Cove lighting
4.Wall color wash lighting
5.Residential kitchens
6.Decorative lights for holiday, event, show, exhibition
7.Automobile and bicycle decoration
Service:
1.Reply your inquiry in 24 hours
2.Experienced staffs answer all your questions in fluent English
3.Customized design is available.OEM&ODM are welcomed
4.Exclusive and unique solution can be provided to our customer by our well trained and professional technicians
5.Special discount and protection of sales area provided to our distributor
Shipment:
1.Goods will be delivered within 3-5 working days after the payment received
2.We ship item via Door to Door service express or air and sea.
Warranty:
1. All products we sell are in good quality and have been tested before they are shipped out
2. We offer 2 years Warranty
Shipping: Door to door shipping by DHL,UPS,Fedex,etc.
Packaging:
