Home > Products > ATC cnc router > Table Moving System With Reduction Drive,4 Axis CNC Router DT4A1325ATC, Wooden Door Design Cnc Router Machine

Table Moving System With Reduction Drive,4 Axis CNC Router DT4A1325ATC, Wooden Door Design Cnc Router Machine

Name: Table Moving System With Reduction Drive,4 Axis CNC Router DT4A1325ATC, Wooden Door Design Cnc Router Machine
Brand: Dragontech
Availability: InStock

FOB Price

US$ 1,000 - 100,000 / Piece

1 Piece(Min. Order)

Port qingdao
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Place of Origin	Shandong, China	Brand Name	Dragontech
Model Number	DT1325F	Voltage	AC380V/3Ph
Power(W)	13kw	Dimension(LWH)	13002500400mm
Weight	1600kg	Certification	CE
Warranty	1year	After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Wooden case/plywood case

Product Description

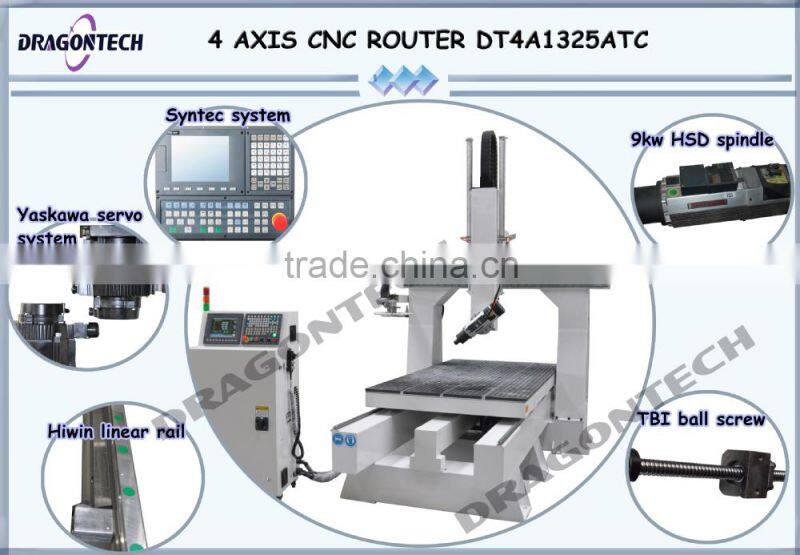

Table moving system with Reduction drive,4 axis CNC Router DT4A1325ATC, wooden door design cnc router machine

Product Description

Applications:

Dragon Tech ATC CNC Router is suitable for hard wood-working, cutting and engraving on rosewood for furniture, indoor decoration, MDF, and so on, with high speed and high precision.

Parameters:

No.	Description	DT4A1325ATC
1	X,Y,Z working size	13002500600mm*180 degree
2	Working table	T-slot vacuum table
3	Spindle	9KW ATC HSD spindle
4	Spindle speed	0-24000RPM
5	4th swivelling axis in spindle	±90 degree
6	Tool magazine	Carousel magazine,12 pcs
7	Max. travelling speed	30000mm/min for X,20000mm/min for Y,15000mm/min for Z
8	Max. working speed	15000mm/min
9	Control system	Syntec
10	Transmission system	Helical Rack pinion for X/Y, Ball screw for Z; Table moving system with Reduction drive for Y;Hiwin linear Rails for X/Y/Z
11	Driving system	Yaskawa
12	Command code	G code(uoo,uc,mmg,plt)

Options:

Driving system: Panasonic/Yaskawa/Delta servo system

Spindle: HSD, Colombo, Chinese GS/HQD

Inverter: Delta, Fulling, Sunfar

Carousel magazine:8pcs, 12pcs, 18pcs

P.S.

All the parts of machine can do some changes to meet your requirements, such as the motor (Panasonic or YASKAWA), control system(Syntec, DSP or Ncstudio), and the size of the table of the machine also can be customized and so on

Options:

Driving system: Panasonic/Yaskawa/Delta servo system

Spindle: HSD, Colombo, Chinese GS/HQD

Inverter: Delta, Fulling, Sunfar

Carousel magazine:8pcs, 12pcs, 18pcs

Packaging & Shipping

Company Profile

Beijing Vigers Co., Ltd.

Our company is a professional CNC Router manufacturer, which focuses on the design and production of high-quality precise carving machines.Our main products are DT series CNC Routers for woodworking, advertising, marble, metal and plasma. We also produce special machines according to customers' requirements. We supply the different options for machines, for example HSD, COLOMBO and GS spindles, DSP, MACH3 and SYNTEC control systems, BECKER and Chinese vacuum pumps, PANASONIC and YASKAWA servo systems, Rotaries, and so on.We have a professional sales team and engineer team with more than 10 years' experience. Therefore, we can supply good training and services to customers perfectly. High quality machines and good services have earned us a good reputation in world markets. We hope to establish long-term business relationships with all customers and enjoy the benefits together.
