CNC Router ATC engraving DT1325ATC/cnc router wood carving machine for sale
- Qingdao Port China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
ATC cnc router, atc cnc machine,atc engraving machine 1325
-
1325atc, Automatic cnc router DT1325ATC
-
CNC Router Auto Tools Changing machine DT1325ATC
-
engraving machine 1325,Wood Furniture CNC Production Line DT1325, woodworking cnc router with loading and unloading device
-
wood cnc router 1325,Wood Furniture CNC Production Line DT1325, woodworking cnc router with loading and unloading device
-
woodworkiprice router cnc 3d,Wood Furniture CNC Production Line DT1325, woodworking cnc router with loading and unloading device
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | DragonTech | |
| Model Number | DT1325ATC | Voltage | AC380V/3Ph | |
| Power(W) | 13kw | Dimension(L*W*H) | 1300*2500*200mm | |
| Weight | 1.5t | Certification | CE | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
wooden case
Product Description

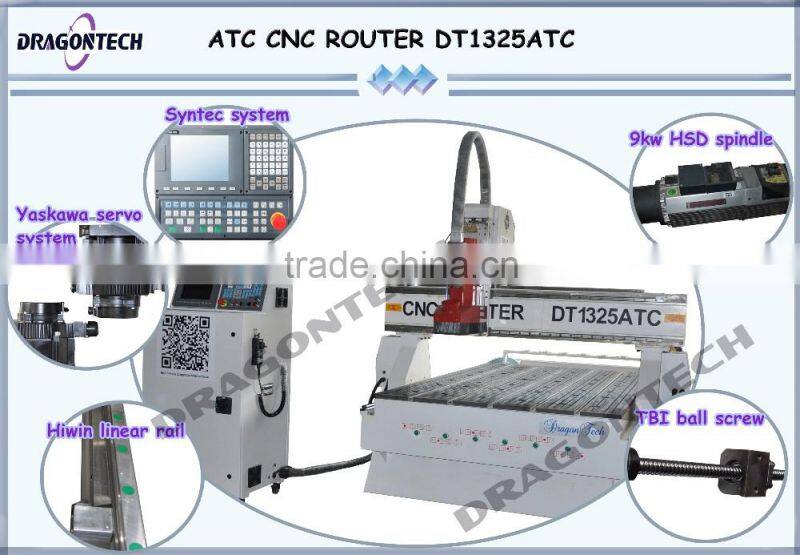

CNC Router ATC engraving DT1325ATC/cnc router wood carving machine for sale
Specifications:
1. The lathe structure is hard steel frame, reliable, high precision, durable.
2. Taiwan ball screw ensures the high precision of the machine.
3. The machine adopts Taiwian Hiwin linear rails with high quality wich promises the reliable of X,Y,Z.
4. GS water cooling spindle, high precision, steady.
5. Mach3 control system.

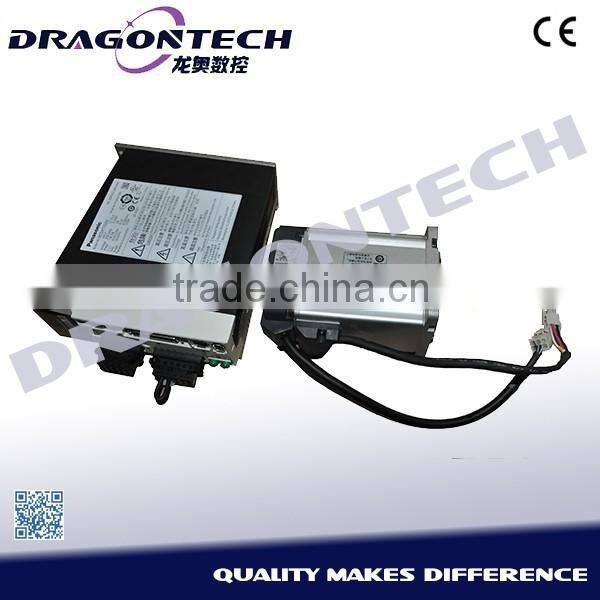

6. Japanese Panasonic servo, high speed and much more power.
7. Lubrication for X, Y, Z.
Options:
1. Spindle: Colombo spindle, chinese GS spindle
2. Gantry: aluminum gantry and steel gantry
3. Control system: Mach3 system, Ncstudio system
4. Motor:Yaskawa servo motor
5.Inverter: Yaskawa, Panasonic
6. Mist cooling system

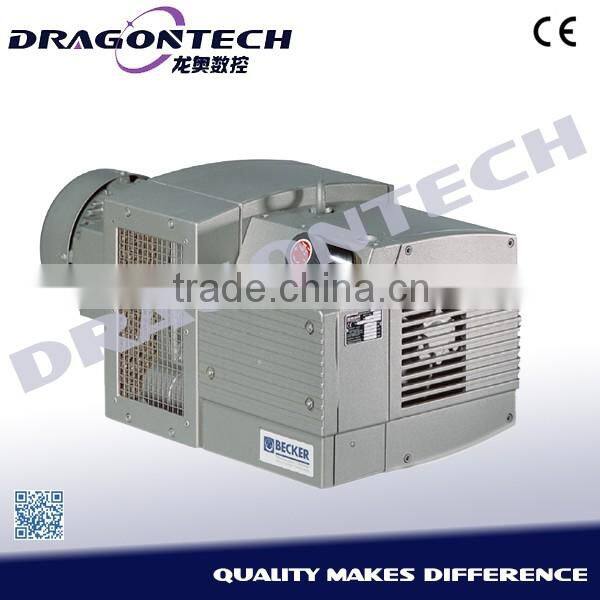

7. Vacuum pump: Germany Becker pump, chinese copy Becker pump
8. Rotary
Descriptions:
| NO. | Description | Parameter |
| 1 | X, Y, Z working size | 1300x2500x200mm |
| 2 | Table size | 1470X3300mm |
| 3 | Lathe structure | Welding Steel Frame |
| 4 | X Y structure | Rack pinion, HIWIN linear Rails |
| 5 | Z structure | Ball screw, HIWIN linear Rails |
| 6 | Max. speed | 35000mm/min |
| 7 | Max. working speed | 30000mm/min |

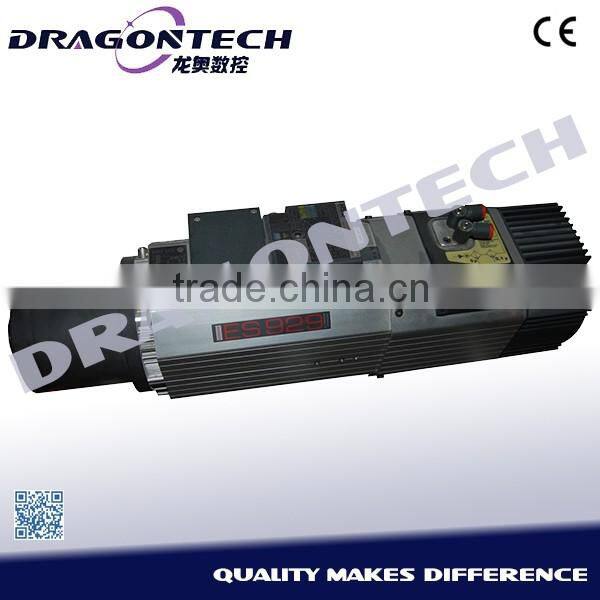

| 8 | Spindle | Chinese ATC Spindle 4.5KW |

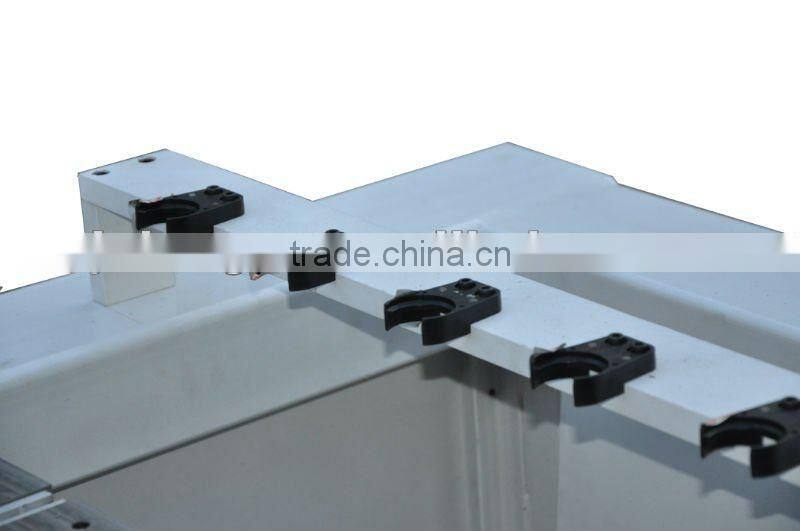

| 9 | Tools | 6pcs tools |
| 10 | Spindle speed | 0-24000RPM |
| 11 | Working mode | Panasonic Servo System |
| 12 | Working table | T-slot vacuum table |
| 13 | Working voltage | AC380V/3Phase |
| 14 | Operating system | Mach3 |
| 15 | Collet | ER32 |
| 16 | Software | Type3 |
| 17 | Packing size | 3200x1900x1900mm |
| 18 | Gross weight | 1400kgs |
Spare parts:
P.S.
All the pars of machine can do some changes to meet your requirements ,such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ),inverter(DELTA or FULING) and the table of the machine also can be customized and so on .
Certification:
Package:
Company Profile
Our company is a professional CNC Router manufacturer, which focuses on the design and production of high-quality precise carving machines.Our main products are DT series CNC Routers for woodworking, advertising, marble, metal and plasma. We also produce special machines according to customers' requirements. We supply the different options for machines, for example HSD, COLOMBO and GS spindles, DSP, MACH3 and SYNTEC control systems, BECKER and Chinese vacuum pumps, PANASONIC and YASKAWA servo systems, Rotaries, and so on.We have a professional sales team and engineer team with more than 10 years' experience. Therefore, we can supply good training and services to customers perfectly. High quality machines and good services have earned us a good reputation in world markets. We hope to establish long-term business relationships with all customers and enjoy the benefits together.
