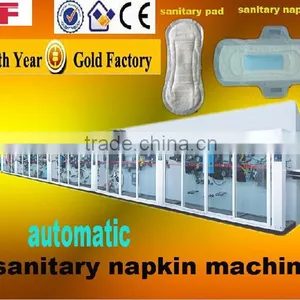

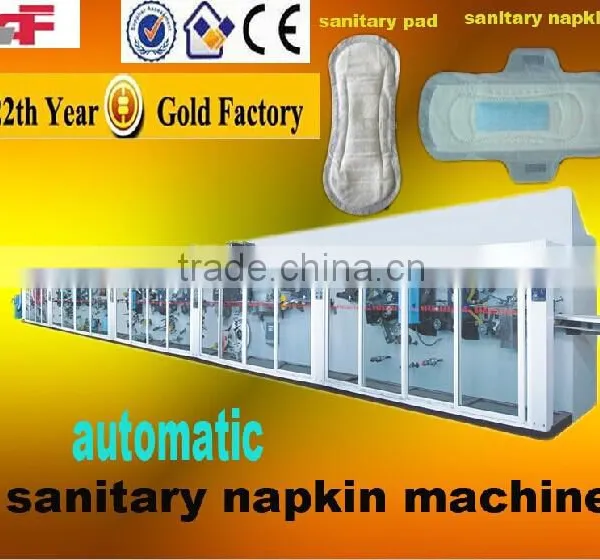

Help CenterRF-KYA CE Certification Full-servo Lady Winge Sanitary Napkin Manufacturing Machine
Related Products
-
RF-KYA CE Certification Full-servo Lady Winge Woman Sanitary Napkin Machine,sanitary Napkin Machine Price,sanitary Napkin MakingUS$ 100,000 - 300,000MOQ: 1 Set -
RF-KYB CE Certification Full-servo Lady Winge Sanitary Napkin Making MachineUS$ 110,000 - 300,000MOQ: 1 Set
-
RF-KYB CE Certification Full-servo Lady Winge Sanitary Napkin Machine PriceUS$ 120,000 - 300,000MOQ: 1 Set
-
RF-KYB CE Certification Full-automatic Women Sanitary Napkin MachineUS$ 120,000 - 300,000MOQ: 1 Set
-
RF-KYB CE Certification Full-servo Lady Winge Used Sanitary Napkin MachineUS$ 110,000 - 300,000MOQ: 1 Set
Specifications
the speed is 400PCS/minit is full automatic and servo
it need 2-3 worker to operate'
we can offer raw material
Power supply |
380V 50HZ |
Installation capacity |
50 KW |
Designed production speed |
350 pcs/min |
Product size |
280×160mm (designed by client's demand) |
Waster Percent |
less than 2% (excluding caused by glue applicators failure) |
Machine dimension |
22m×3m×3m (L×W×H) |
Weight |
30Tons |
Main functions and features
- It can produce ultra-thin or fluffy pulp cotton core type sanitary napkin, which is fast-easy package.
- Main material like Non-woven, PE film, packing film, air-laid paper auto splicing, tension control, auto guider and unqualified parts will remove automatically.
- Cutter material use 45 # steel, extend life of the cutter.
- Higher speed crusher machine can crush treated or untreated fluff pulp.
- Touchable Screen: Motor switch on/off, running speed, time, counting pieces, parameter setting, alarm, error display, error enquiry (functions setting appear on screen are different according to different machine type)
- Machine with safety door
Main technical parameters
- Designed speed: 140m/min
- Running speed: 400-500pcs/min
- Product Size: Single type (product lengh can according to customers’ require)
- Capacity: 140kw 380V, 50 HZ (Including glue Applicators)
- Practical capacity: 100kw Breaker: 400A
- Electricity: 3phases 4 lines Cable: 3x70mm2+1x50mm2+1x25mm2
- The lowest air pressure: ≥0.6mpa, 1.3m3/min
- Total weight: about 35Tons
- Noise: <80db (A)
- Main machine overall dimensions: (22x5x3)M (LxWxH)
- Machine taking total space: (26x9x4)M (LxWxH)
- Container: 2x40HQ
apple china india machine
our factory
Main technic parameters:
1.) Power supply:380V,50HZ
2.) Air pressure:1200L/MIN, 6-8BARs
3.) Production: cotton core and winged sanitary napkin
4.)Product Size:by the client
5.) Structure of the product:
a.Cotton core product:
1,non-woven fabrics;2,T-shirt non-woven;3,toilet paper;4,SAP;5,fluff pulp;6,back sheet;7,side release paper;8,back relerse paper;9,diolame;10,fast and easy tape;11,hot melt glue
b.super thin product:
1,non-woven fabrics;2,T-shirt non-woven;4,dust-laid paper;5,SAP; 6,back sheet;7,side release paper;8,back release paper;9,diolame;10,fast and easy tape;11,hot melt glue
Host machine configurations
Unwinding system:material servo drive unwinding,control by constant sension,full speed auto exchanging material.
1.) Wood pulp unwinding
Wood pulp shaft can hold maximal diameter 1400 width 520 roll material.
2.) Interleaving paper unwinding
Constant sension control system,“S” type touch roll tension compensation system(auto exchanging material one set, inflatable shaft two sets, coil frequency conversion motor two sets)
3.) Surface layer non-wovem fabrics unwinding
Constant sension control system,“S” type touch roll tension compensation system(auto exchanging material one set, inflatable shaft two sets, coil frequency conversionmotor two sets)
4.) T-shirt non-woven fabrics unwinding
Constant sension control system,“S” type touch roll tension compensation system(auto exchanging material one set, inflatable shaft two sets, coil frequency conversionmotor two sets)
5.)Basement membrane auto unwinding
Constant sension control system,“S” type touch roll tension compensation system(auto exchanging material one set, inflatable shaft two sets, coil frequency conversion motor two sets)
6.)Backing interleaving paper auto unwinding
Constant sension control system(auto exchanging material one set, inflatable shaft two sets, coil frequency conversion motor two sets)
7.) Winging interlearving paper unweinding
Constant sension control system(auto exchanging material one set, inflatable shaft two sets, coil frequency conversion motor two sets)
8.)Small packaging film auto unwinding
Constant sension control system,“S” type touch roll tension compensation system(auto exchanging material one set, inflatable shaft two sets, coil frequency conversion motor two sets)
9.)Sealing tape passive unwinding
2 material shaft,mechanical manual exchanging material one set
<
| high speed machine | automatic women sanitary napkin machine |
| napkin paper machine | Lady sanitary napkin machine |
| Serviette paper folding machine | napkin machine manufacturer |
| mini sanitary napkin machine | women's sanitary napkin machine |
| napkin machine | napkin machine |
| sanitary napkin equipment | sanitary napkin equipment |
| automatic machine | wing sanitary napkin machine |
| india sanitary napkin machine price | woman sanitary napkin machine |
| automatic sanitary napkin machine | sanitary pad machine |
| new automatic sanitary napkin machine | sanitary napkin equipment |
| high-speed new automatic sanitary napkin machine | sanitary napkin making machine |
| MH-280 Automatic Sanitary Napkin Machine (CE Certificate) | Fast-Easy Packing Winged Sanitary Napkin Machine |
| MH-280 Automatic Sanitary Nautomatic crepe machine | feminine sanitary napkin machine |
| MH-280 Automatic Sanitary Napkin Machine (CE Certi | womens sanitary napkin machine manufacturer |
| sanitary napkin making machine | sanitary napkin machine |
| Wowen sanitarty napkin machine | used sanitary napkin machine |
| sanitary napkin vending machine | sanitary napkin machine manufacturer |
| Lady napkin production machine | Tissue making Machine |
| Sanitary pad making machine | full servo sanitary napkin machine |
| Woman sanitary napkin equipment | sanitary napkin machine |
| sanitary towel machine | sanitary napkin machine |
| sanitary napkin making machine | high-speed baby diaper sanitary napkin machine |
| Napkin machine | sanitary pads machine |
| High tecnology Napkin machine | Sanitary Pad Machine |
| Double-mould Wheel lady napkin machine | sanitary napkin disposal machine |
| lady napkin machine | sanitary napkin making machine |
| feminine napkin machine | sanitary napkin disposal machine |
| sanitary napkin machine price | sanitary napkin making machine |
| sanitary napkin making machine | woman sanitary napkin machine |
after-sales service: We provide one-year warranty,we will send technicist to your factory and install the machine and train the workers ,but the traveling expenses, the charge of room and eating for the technicist should be bear by yourselves
Delivery time:120 Days after receiving the 30% of total as deposit and the drawing confirmed by both buyer and seller.
payment term:T/T,L/C
You can send technician to our factory to learn operate the machine before the machine delivery for 1-2 month. We can offer food and accommodation.
When the baby diaper machine arrive your workshop, we will send technician to your workshop installing, testing the machine and training your workers.
If you need one Chinese technician work for you, we can help you find one work for you.
Life-long after service for the under pad machinery
