Direct Cooling Block Ice Machine with Top Quality

Specifications

1,Min. Order: 1 Set
2,FOB Price: US $1-100000 / Set
3,Payment Terms: L/C,T/T,Western Union
4,Supply Ability: 50 Sets/month

• ice block machine Capacity: 1000kg ice blocks per day;
• Without brine water for freezing ice;
• freezing time: 2-3hrs newest tech;
• ice block size: 5kg per piece.



2. Advantages:

Our DK series ice block machine adopt aluminum plate as ice can, the refrigerant will evaporate inside the aluminum plate so the plate can freeze ice making water quickly. This is the intergrated system, meanwhile, we design the lifting system to harvest ice blocks directly, no need hands to harvest ice blocks one by one.



3. Features:

DK10 Block ice machine
Technical parameters
NO.	Description	Details
1	Freezing time per cycle	2-3 hours(approx)
2	Weight of each ice block	5kg,11×9.3×50cm
3	Outdimensions	1820×1070×1365mm
4	Ice making capacity	1000kg/day
5	Evaporator for ice tank	Aluminum plate
6	Cover	Stainless steel sheet
7	Compressor	Copeland (ZB45KQ/ZB45KQE) or             Danfoss (MT-80/MTZ-80)
8	Refrigerant	R22
9	Condenser	Air cooler
10	water inlet temperature	20-25°C
11	ambient operating temperature	35-40°C
12	Control and safety devices	autormatic electic control panel box;
		HP/LP switch with automatic reset
13	Cooling systerm	Copper pipes, liquid separator,
		solenoid valve,filter and so on
14	Install power	4.5KW,380-450V/3ph/50HZ

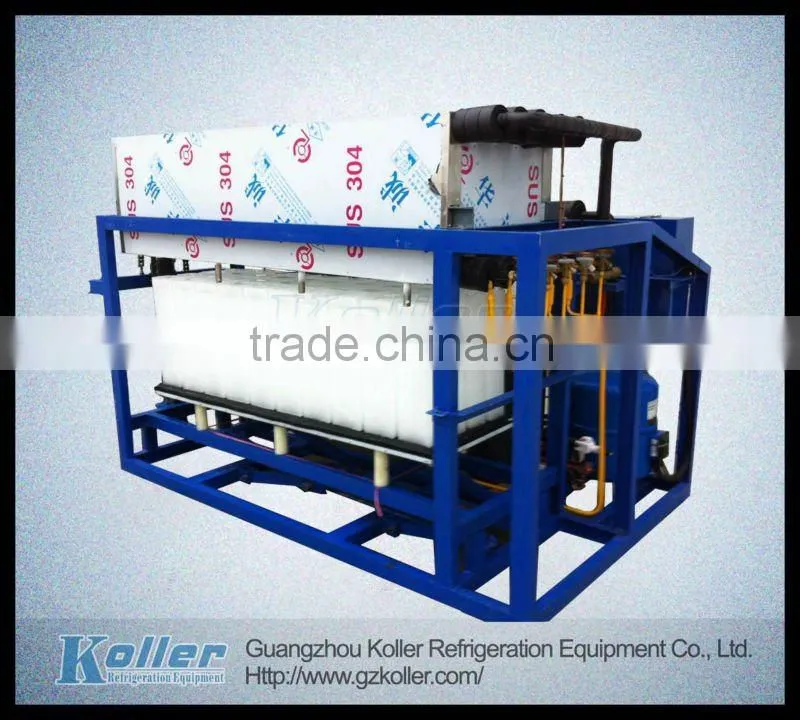

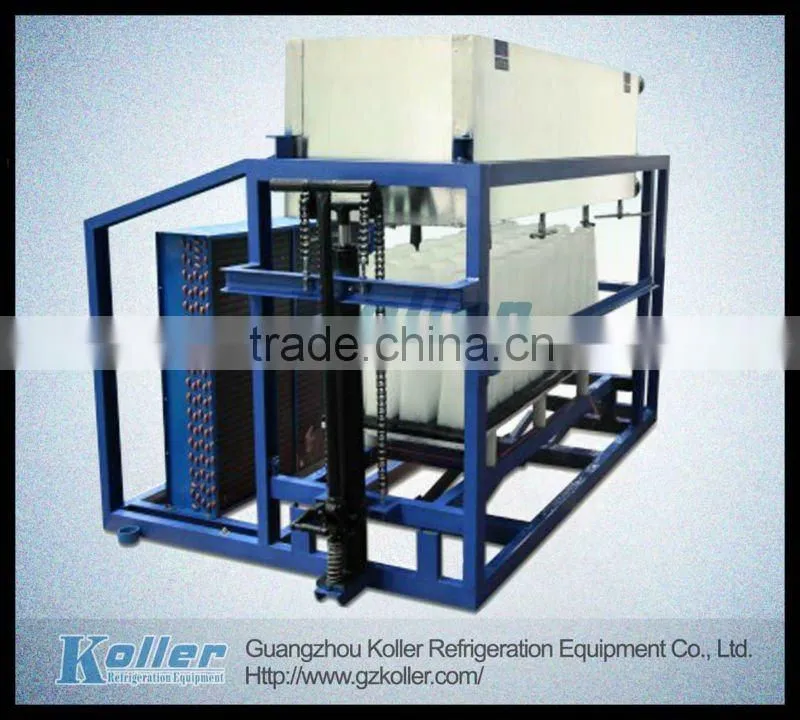

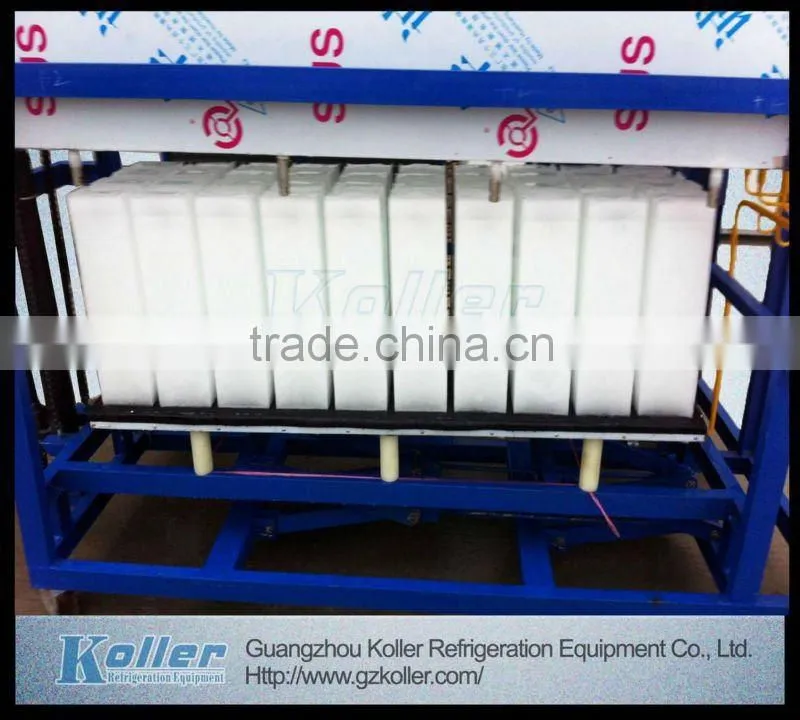

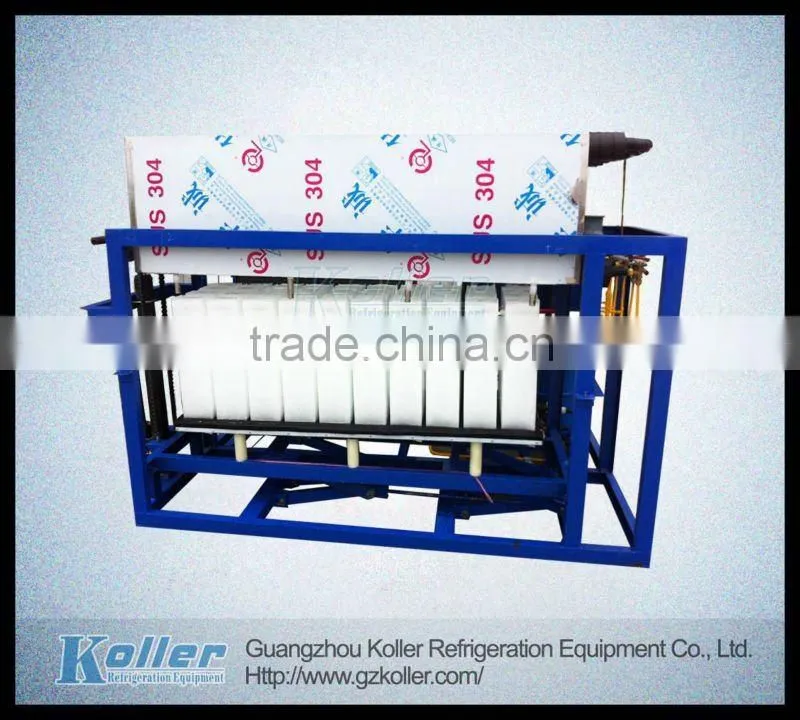

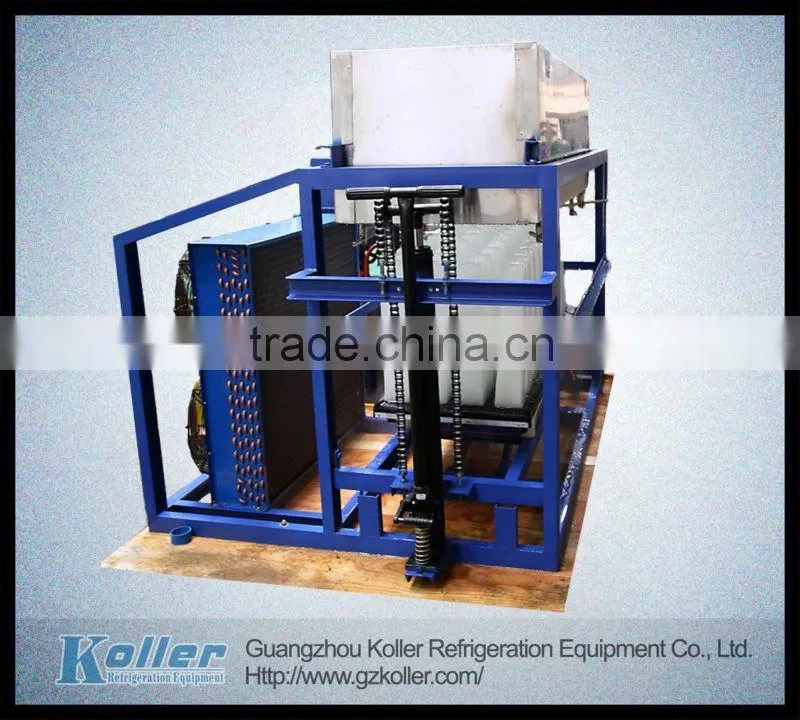

4. Pictures:
