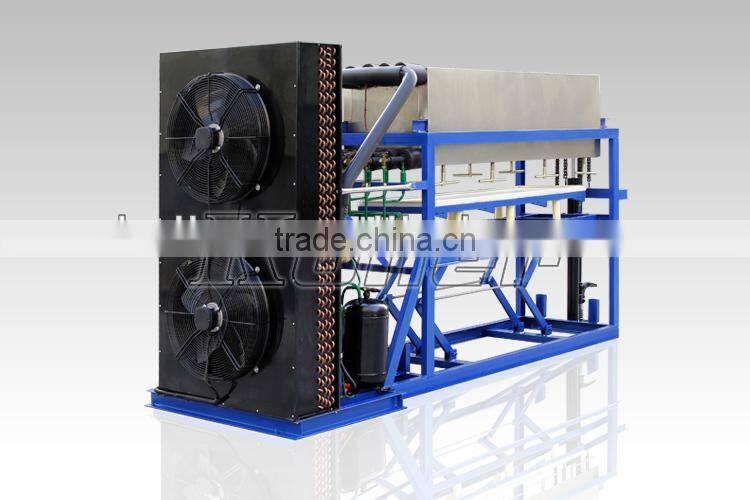

High Efficiency Direct Cooling Block Ice Making Machine for Human Consumption

Specifications

1,Min. Order: 1 Set
2,FOB Price: US $1-100000 / Set
3,Payment Terms: L/C,T/T,Western Union
4,Factory
5.Edible type ice

• Ice block machine Capacity: 1000kg ice blocks per day;
• Without brine water for freezing ice;
• Freezing time: 2-3hours;
• Ice block size: 5kg per piece.



2. Advantages:

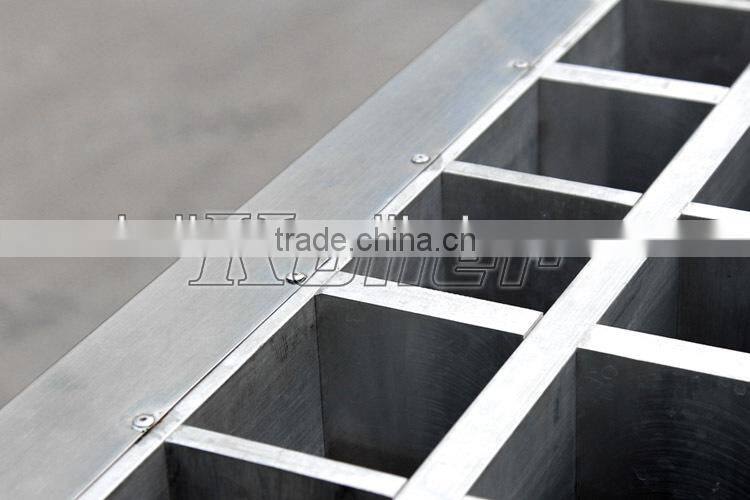

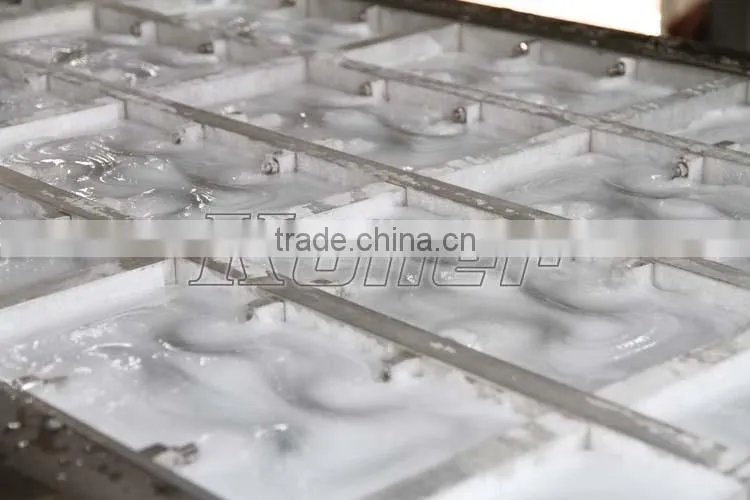

Our DK series ice block machine adopt aluminum plate as ice can, the refrigerant will evaporate inside the aluminum plate so the plate can freeze ice making water quickly. This is the intergrated system, meanwhile, we design the lifting system to harvest ice blocks directly, no need hands to harvest ice blocks one by one.









3. Features:

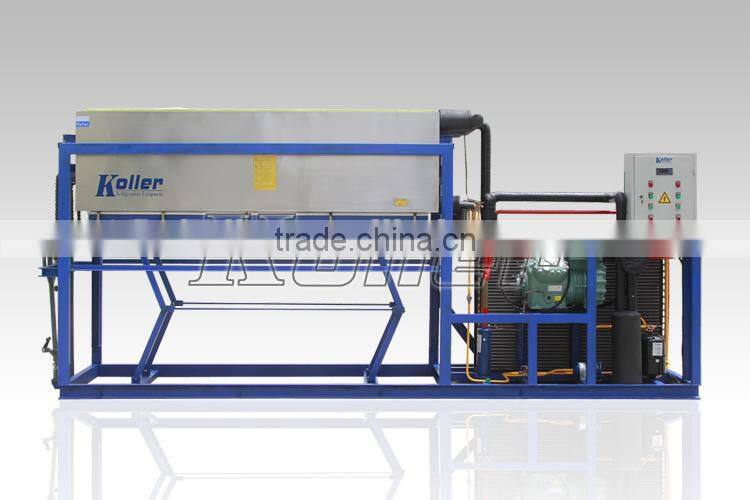

DK10 Block ice machine
Technical parameters
NO.	Description	Details
1	Freezing time per cycle	2-3 hours(approx)
2	Weight of each ice block	5kg,80mm*165mm*500mm
3	Outdimensions	1800×1100×1200mm
4	Ice making capacity	1000kg/day
5	Evaporator for ice tank	Aluminum plate
6	Cover	Stainless steel sheet
7	Compressor	Copeland (ZB45KQ/ZB45KQE) or             Danfoss (MT-80/MTZ-80)
8	Refrigerant	R22
9	Condenser	Air cooler
10	water inlet temperature	20-25°C
11	ambient operating temperature	35-40°C
12	Control and safety devices	autormatic electic control panel box;
		HP/LP switch with automatic reset
13	Cooling systerm	Copper pipes, liquid separator,
		solenoid valve,filter and so on
14	Install power	4.5KW,380-450V/3ph/50HZ



De

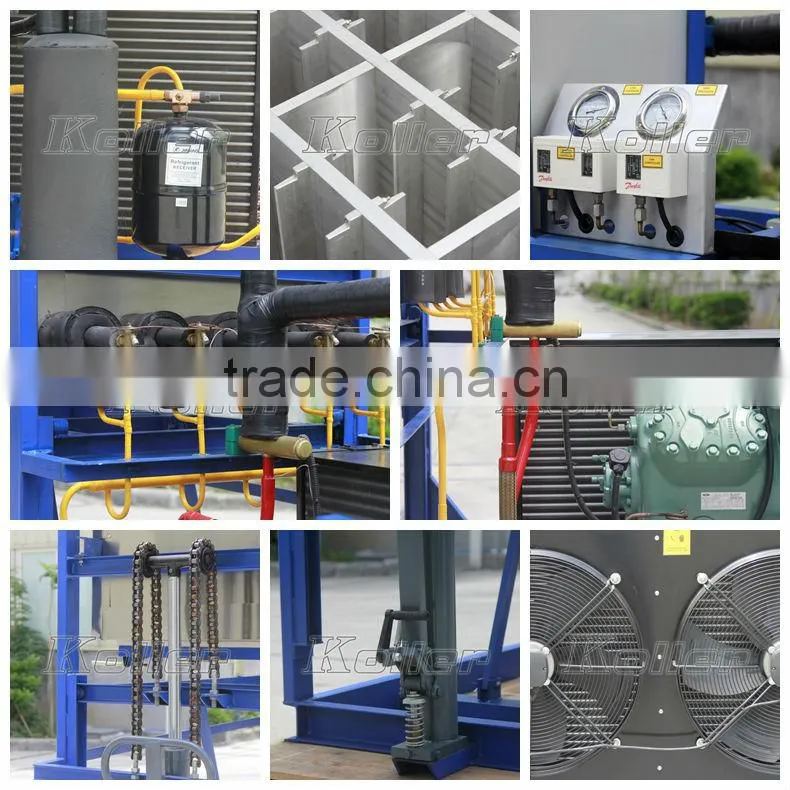

Detail Components of Direct Cooling Block Ice Making Machine

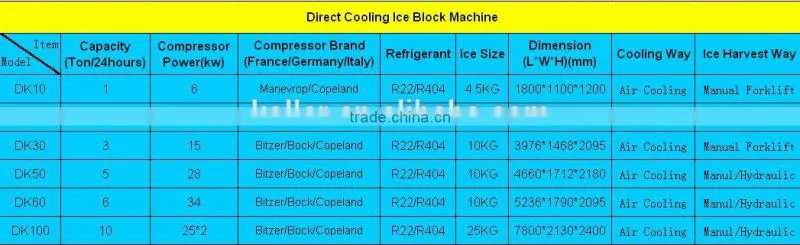

4. Koller DK Series Block Ice Making Machine Technical Parameter:

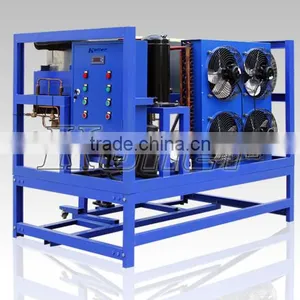

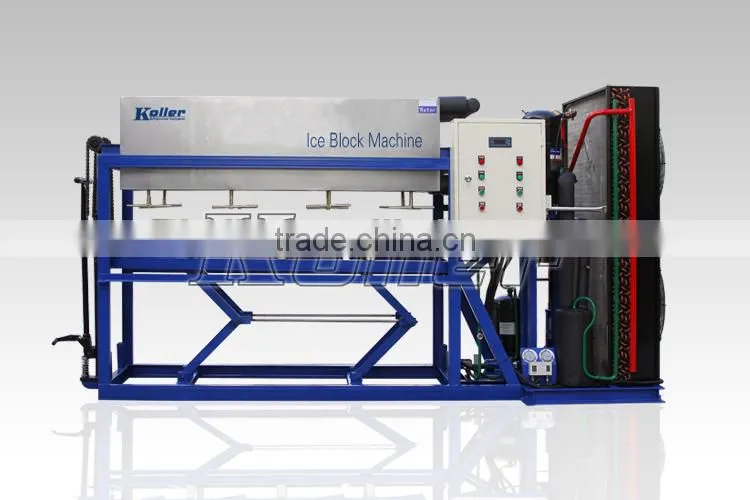

5. Pictures of Koller Other Direct Cooling Block Ice Making Machines:

DK20 Block Ice Making Machine



DK30 Block Ice Making Machine
