Ejointech high quality gsm gateway 16 ports 64 sims gsm remotely control

Specifications

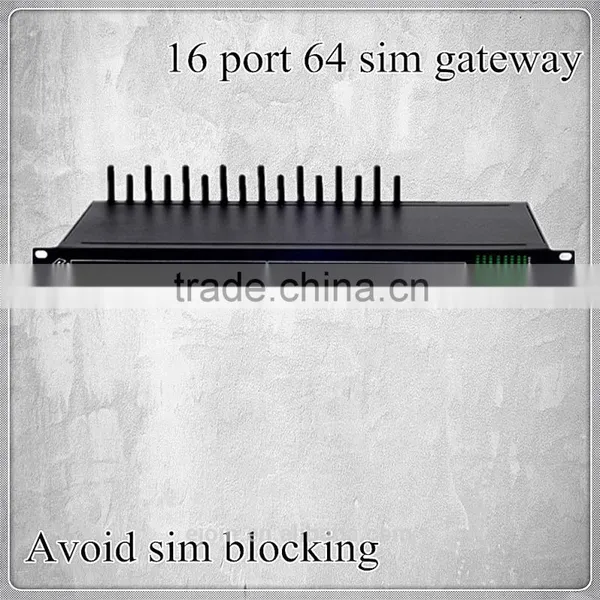

16 port 64 sims gsm gate
Ejoin Bandwidth Optimization
Sim Card Rotating
Port Inter-calling
Fake Ring-back





   16 port 64 sims gsm gate



    ACOM516 series is able to process traditional voice call service and internet data service. Compare to the ACOM508 GSM/CDMA/WCDMA series VoIP Gateway,ACOM516 series adapt new hardware and software structure, which supports up to 16 concurrent calls.



Front

Back

Motherboard





Special Features:

lSupport G729a/b/e,G723.1,G.711 A/U law, iLBC auto-selecting

lEBO(EjoinBandwith Optimization)

lProxy Encryption Solution for IP Block

lSupport SIM Bank

lVPN(pptp)

lSIM Card Rotating(ACOM516-64)

uSolution to solve the SIM card blocked by:

²Accumulated Call Duration

²Accumulated Connected Calls

²Accumulated Calls

²Consecutive Failed Calls

²Consecutive No-Alert Calls

²Consecutive No-Answer Calls

²Consecutive No Carrier Calls

²Consecutive Short-Duration Calls

lStation intelligent switching

lERMS(Ejoin Remote Management System)

lPort Inter-Calling

lFake Ringback

lCall Duration Limitation for SIM Card/Single

lDial Plan/Prefix Inward Translation/Intelligent Routing

lWeb Browser: Firefox/Chrome /IE/Opera





Specification:

Model	ACOM 516-16/64
Number of Channels	16 channels
Frequency	GSM: 850/900/1800/1900MHz
	CDMA:450/800/1900MHz
	WCDMA:850/900/1800/1900/2100MHz
SIP Specification	SIP/2.0 RFC3261
	Session Timer RFC4028
	STUN
Network Protocols	DHCP/PPPoE/VPN(pptp)
	NTP
	Telnet/HTTP/FTP/TFTP
	Encryption:Ejoin,VOS2000,RC4,XOP.Base64
Telephony Features	Hot-line call ,Dial plan, Speed dial, Phone book, CDR, LCR, White/Black list
Telephony Signaling	DTMF tone dectection/generation
	DTMF relay: in-band, RFC 2833 and SIP info
	Call forward: unconditional, no answer and busy
	N-way conferencing
	Caller ID display/generation, Mobile Number Portability
Voice Capability	Voice codecs:G729a/b/e,G723.1,G.711 A/U law, iLBC
	Echo cancellation
	Silence suppression & detection(VAD, CNG)
	Adaptive jitter buffer
	Volume adjustable
	IVR customized
Number of Ports	1 WAN 10/100Base-T ethernet(RJ-45 connector)
	1 LAN 10/100Base-T ethernet(RJ-45 connector)
	1 Console(USB)
LEDs	1 Power and 16 groups of card online and running status indicator
Power Supply	100-240VAC, 50 - 60 Hz IN, 12V/5A OUT
Operating Environment	Operating temperature: 0 - 50ºC
	Operating humidity: 10 – 90%RH
Warranty	12 Months





Mobile Features:

lSMS Send,Receive and Forward(GSM/SIP/HTTP)

lSMS Inbox

lAT Command , USSD

lSMS Format: PDU/TXT

lPIN Code Management

lCDMA Delay Answer

lGSM Polarity Reversal

lCarrier Selection

lCaller ID Hidden(need SIM Card support)



Maintenance and Management:

lMulti-language Interface

lUSB Serial COM

lConfiguration Backup and Restore

lSupport HTTP/TFTP Upgrade

lCall statistics: ASR,ACD,PDD

lEjoin Remote Management System
