Specifications
Pure water making machine for ice plant-1. can make pure water
-2. have different mode suit for different ice machines
Pure water making machine for drinking ice plant
Technology instruction:
1. It adopts current advanced RO system , the output water pure and clean.
2. This system adopts American technolory and use ULP-4040 RO membrane,the rate of removing salt is 98%,recovery 50%-75%. The rate of the whole system to get rid of bacterial virus, hardness ions, radioactive elements, organic pollutant are 99%, 95%, 99%, 95% respectively. The machine also can get rid of toxic and harmful substances, such as carbon tetrachloride, benzenes, hydrocarbon, agrochemical, and lead, mercury, chrome ...etc from water source. The quality of treated water is drinkable, clean and pure.
Technical data
Parameters | |
Product |
One-stage RO(Reverse Osmosis) water treatment system |
Model |
RO-1000I(300L/H) |
Pure Water Production Capacity |
300 litre per hour(25°C) |
Input water quality |
TDS≤1000PPM |
Salt Rejection Rate |
≥97% |
Recovery Rate(pure water : drain) |
50~65% |
Recommended Working Temp. |
5~35°C |
Input Power(standard) |
AC380V / 50Hz / 2.75KW |
Dimension(standard) |
1700*710*1700(MM) |
Pre-treatment | |
Quartz Sand Filter |
1054 fiber glass tank with 50 KG quartz sand |
Active Carbon Filter |
1054 fiber glass tank with 25 KG active carbon |
Micron (PP Sediment) Filter |
90×1000MM UVC-U PP sediment filter 2 pieces |
Booster Pump |
China Nanfang CHL2-30 |
Multi-stage Pump |
China Nanfang CDL2-180 |
RO System | |
Membrane |
ULP-4040×1PCS |
Housing |
Stainless steel 4040 housing×1PCS |
Accessories | |
Piping |
U-PVC quick connection |
Structure |
Full SUS304 stainless steel |
Electrical Parts |
China Tengen |
Others |
Flow metre, pressure metre, electromagnetic valve, etc. |
OPTIONAL |
UV sterilizer, ozone sterilizer, and water tank |

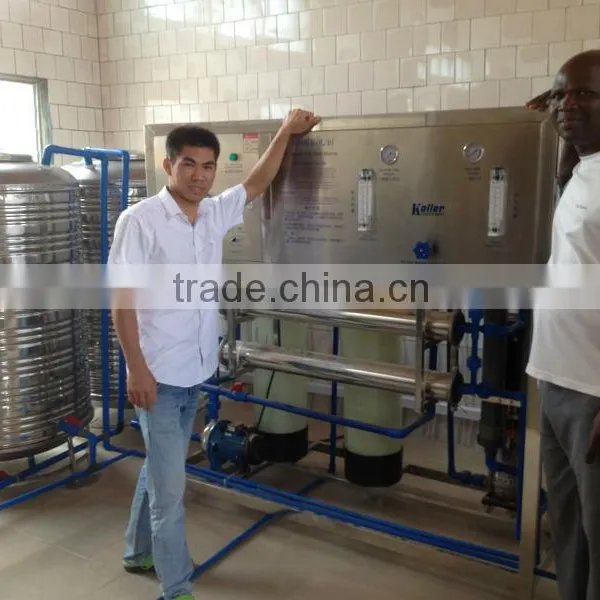

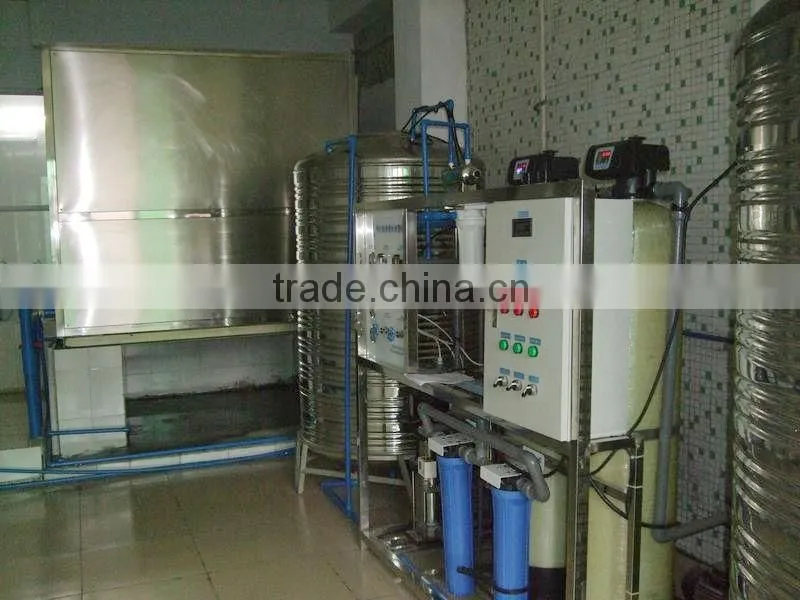

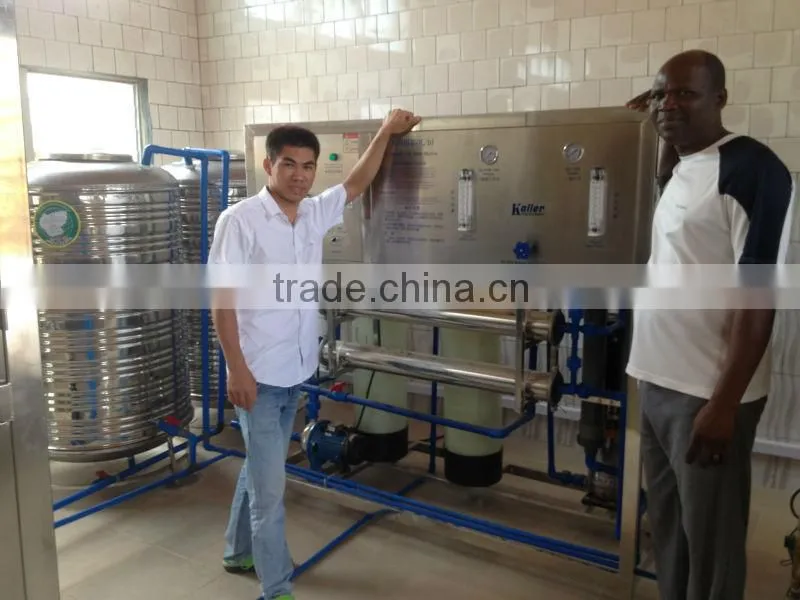

Koller ice plant with water treatment
Internation pack in wooden cases.
We guarantee the warranty for 12 months. Regarding after-sales service, once machine is out of work, you only need to send us pictures or videos about the fault, we will get back to you with the solution within 24 hours. If the parts is broken and proved by our engineer for non-personal reason, we will offer free parts to replace within guarantee period by DHL, usually 3~4 days to arrive your factory; if it is beyond guarantee period, we will charge market price for the new parts.
