Specifications

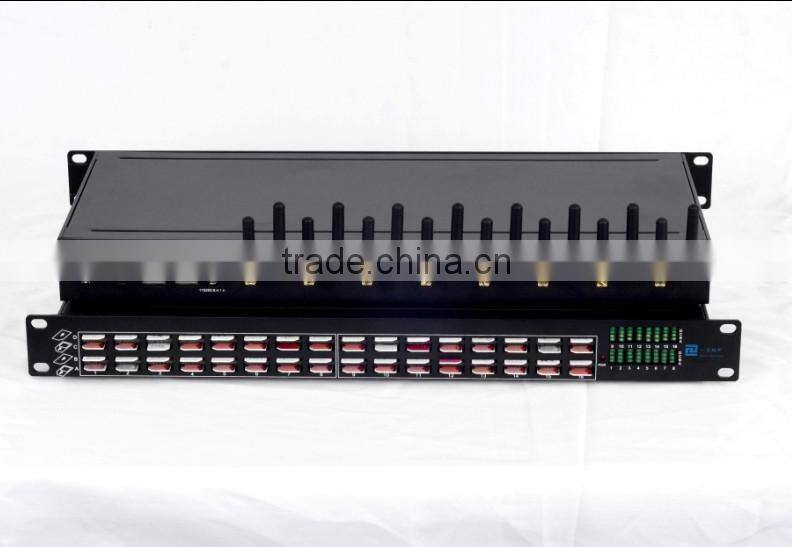

Goip 16 ports 800 mhz cdma voip gateway with imei change1.Ejoin Remote Management System
2.Support SIM bank
3.Support sms
Ejoin 16 port 16 sim 800 mhz cdma voip gateway

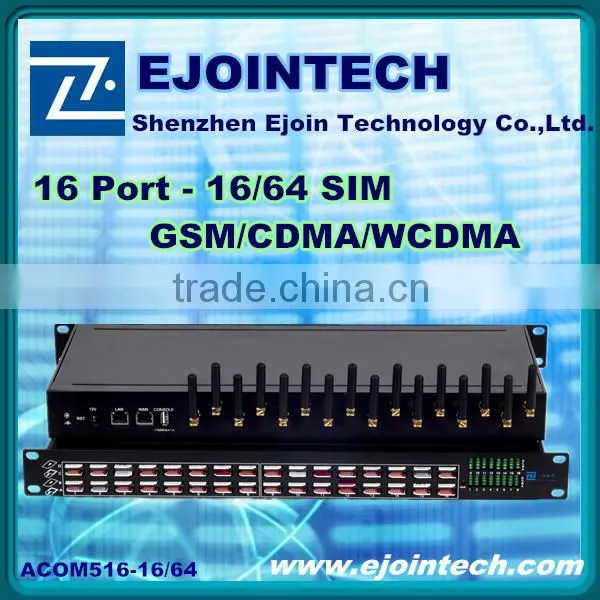

ACOM516-64 CDMA VoIP Gateway
ACOM516 series is able to process traditional voice call service and internet data service. Compare to
the ACOM508 GSM/CDMA/WCDMA series VoIP Gateway,ACOM516 series adapt new hardware and
software structure, which supports up to 16 concurrent calls.
Special Features:
l Support G729a/b/e,G723.1,G.711 A/U law, iLBC auto-selecting l EBO(Ejoin Bandwidth Optimization)
l Proxy Encryption Solution for IP Block
l Support SIM Bank
l VPN(pptp)
l SIM Card Rotating(ACOM516-64)
u Solution to solve the SIM card blocked by:
²Accumulated Call Duration
²Accumulated Connected Calls
²Accumulated Calls
²Consecutive Failed Calls
²Consecutive No-Alert Calls
²Consecutive No-Answer Calls
²Consecutive No Carrier Calls
²Consecutive Short-Duration Calls
lStation intelligent switching
lERMS(Ejoin Remote Management System)
lPort Inter-Calling
lFake Ringback
lCall Duration Limitation for SIM Card/Single
lDial Plan/Prefix Inward Translation/Intelligent Routing
Specification:
Model |
ACOM 516-16/64 |
Number of Channels |
16 channels |
Frequency |
GSM: 850/900/1800/1900MHz CDMA:450/800/1900MHz WCDMA:850/900/1800/1900/2100MHz |
SIP Specification |
SIP/2.0 RFC3261 Session Timer RFC4028 STUN |
Network Protocols |
DHCP/PPPoE/VPN(pptp) NTP Telnet/HTTP/FTP/TFTP Encryption:Ejoin,VOS2000,RC4,XOP.Base64 |
Telephony Features |
Hot-line call ,Dial plan, Speed dial, Phone book, CDR, LCR, White/Black list |
Telephony Signaling |
DTMF tone dectection/generation DTMF relay: in-band, RFC 2833 and SIP info Call forward: unconditional, no answer and busy N-way conferencing Caller ID display/generation, Mobile Number Portability |
Voice Capability |
Voice codecs:G729a/b/e,G723.1,G.711 A/U law, iLBC Echo cancellation Silence suppression & detection(VAD, CNG) Adaptive jitter buffer Volume adjustable IVR customized |
Number of Ports |
1 WAN 10/100Base-T ethernet(RJ-45 connector) 1 LAN 10/100Base-T ethernet(RJ-45 connector) 1 Console(USB) |
LEDs |
1 Power and 16 groups of card online and running status indicator |
Power Supply |
100-240VAC, 50 - 60 Hz IN, 12V/5A OUT |
Operating Environment |
Operating temperature: 0 - 50ºC Operating humidity: 10 – 90%RH |
Warranty |
12 Months |
Mobile Features:
l SMS Send, Receive and Forward(GSM/SIP/HTTP) l SMS Inbox
l AT Command , USSD
l SMS Format: PDU/TXT
l PIN Code Management
l CDMA Delay Answer
l GSM Polarity Reversal
l Carrier Selection
l Caller ID Hidden(need SIM Card support)
Maintenance and Management:
l Multi-language Interface
l USB Serial COM
l Configuration Backup and Restore
l Support HTTP/TFTP Upgrade
l Call statistics: ASR,ACD,PDD
l Ejoin Remote Management System
