SIM 64 CDMA Gateway 16 port gsm voip gateway with imei change

Specifications

SIM 64 CDMA Gateway dinstar 16 port gsm voip gateway with imei change
Ejoin Bandwidth Optimization
Sim Card Rotating
Port Int

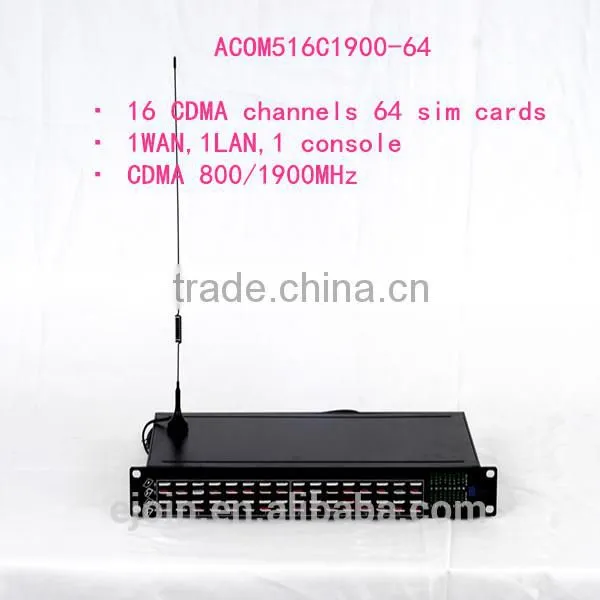

SIM 64 CDMA  Gateway  16 port gsm voip gateway with imei change



    ACOM516 series is able to process traditional voice call service and internet data service. Compare to the ACOM508 GSM/CDMA/WCDMA series VoIP Gateway,ACOM516 series adapt new hardware and software structure, which supports up to 16 concurrent calls.



Front

Back

Motherboard





Special Features:

lSupport G729a/b/e,G723.1,G.711 A/U law, iLBC auto-selecting

lEBO(EjoinBandwith Optimization)

lProxy Encryption Solution for IP Block

lSupport SIM Bank

lVPN(pptp)

lSIM Card Rotating(ACOM516-64)

uSolution to solve the SIM card blocked by:

²Accumulated Call Duration

²Accumulated Connected Calls

²Accumulated Calls

²Consecutive Failed Calls

²Consecutive No-Alert Calls

²Consecutive No-Answer Calls

²Consecutive No Carrier Calls

²Consecutive Short-Duration Calls

lStation intelligent switching

lERMS(Ejoin Remote Management System)

lPort Inter-Calling

lFake Ringback

lCall Duration Limitation for SIM Card/Single

lDial Plan/Prefix Inward Translation/Intelligent Routing

lWeb Browser: Firefox/Chrome /IE/Opera





Specification:

Model	ACOM 516-16/64
Number of Channels	16 channels
Frequency	GSM: 850/900/1800/1900MHz
	CDMA:450/800/1900MHz
	WCDMA:850/900/1800/1900/2100MHz
SIP Specification	SIP/2.0 RFC3261
	Session Timer RFC4028
	STUN
Network Protocols	DHCP/PPPoE/VPN(pptp)
	NTP
	Telnet/HTTP/FTP/TFTP
	Encryption:Ejoin,VOS2000,RC4,XOP.Base64
Telephony Features	Hot-line call ,Dial plan, Speed dial, Phone book, CDR, LCR, White/Black list
Telephony Signaling	DTMF tone dectection/generation
	DTMF relay: in-band, RFC 2833 and SIP info
	Call forward: unconditional, no answer and busy
	N-way conferencing
	Caller ID display/generation, Mobile Number Portability
Voice Capability	Voice codecs:G729a/b/e,G723.1,G.711 A/U law, iLBC
	Echo cancellation
	Silence suppression & detection(VAD, CNG)
	Adaptive jitter buffer
	Volume adjustable
	IVR customized
Number of Ports	1 WAN 10/100Base-T ethernet(RJ-45 connector)
	1 LAN 10/100Base-T ethernet(RJ-45 connector)
	1 Console(USB)
LEDs	1 Power and 16 groups of card online and running status indicator
Power Supply	100-240VAC, 50 - 60 Hz IN, 12V/5A OUT
Operating Environment	Operating temperature: 0 - 50ºC
	Operating humidity: 10 – 90%RH
Warranty	12 Months





Mobile Features:

lSMS Send,Receive and Forward(GSM/SIP/HTTP)

lSMS Inbox

lAT Command , USSD

lSMS Format: PDU/TXT

lPIN Code Management

lCDMA Delay Answer

lGSM Polarity Reversal

lCarrier Selection

lCaller ID Hidden(need SIM Card support)



Maintenance and Management:

lMulti-language Interface

lUSB Serial COM

lConfiguration Backup and Restore

lSupport HTTP/TFTP Upgrade

lCall statistics: ASR,ACD,PDD

lEjoin Remote Management System
