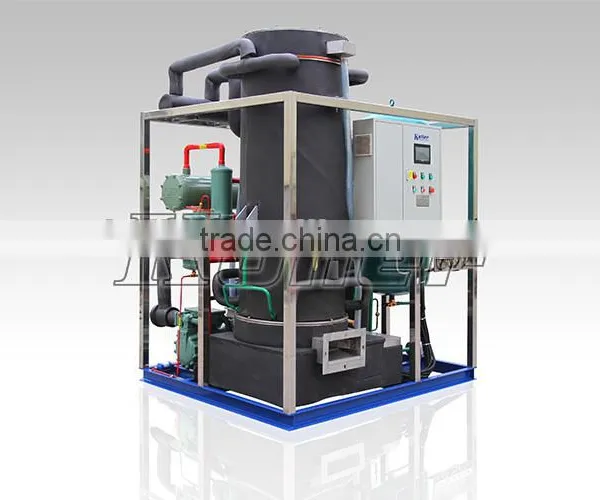

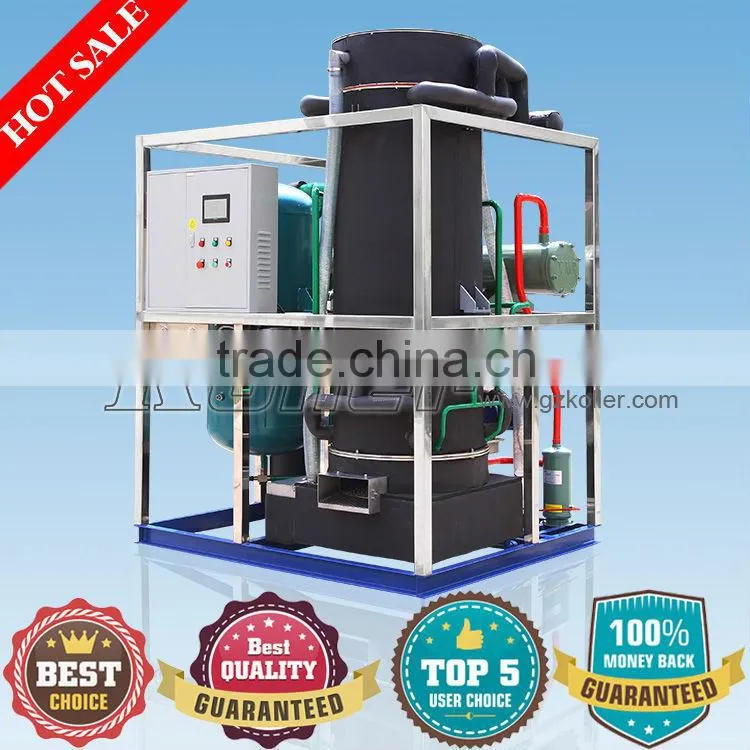

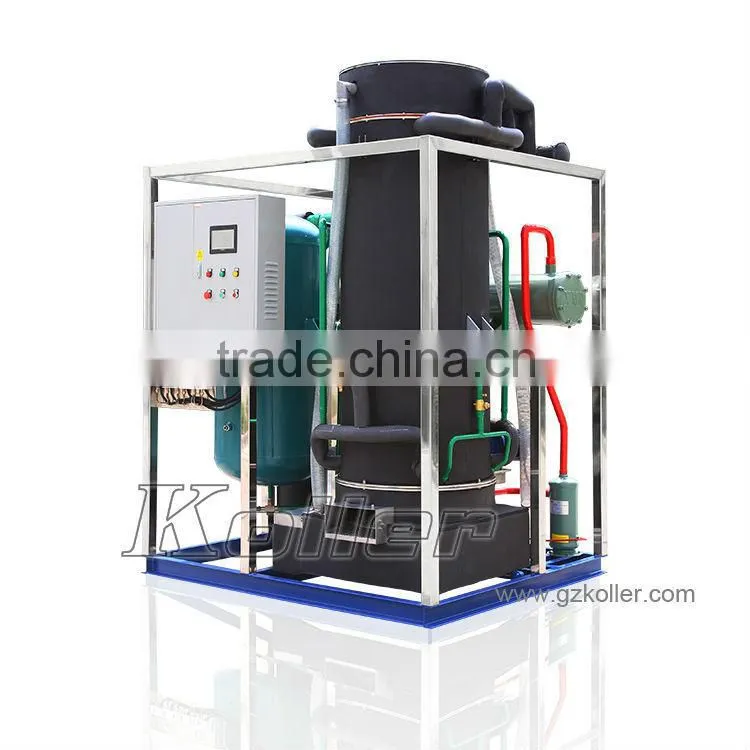

Koller Industrial 10TPD tube ice maker machine with semi-automatic packing for restaurant TV100

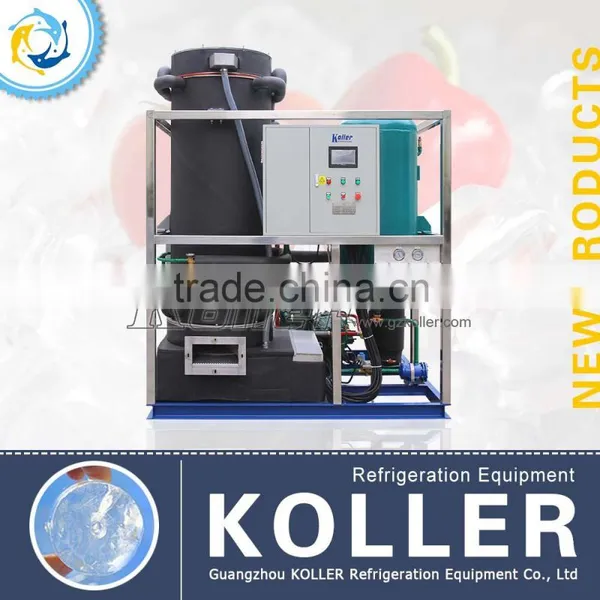

KOLLER TV Series Ice Tube Machine
We can promise it`s high efficiency and stable capacity.
Through our engineer `s test, we have confidence to our high production performance even in summer, you may visit our factory, and witness the whole process on the spot. We won`t let a unqualified product flow into the market.
video introduction link: /watch?v=yG1CCZK3izo

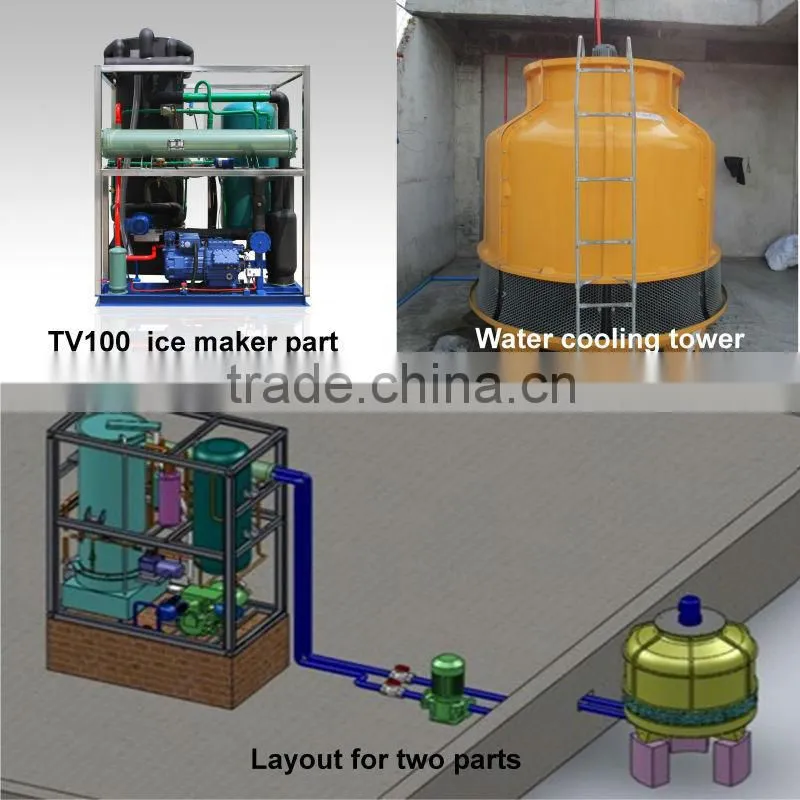

This kind of ice tube machine freeze the water directly. So a whole set of ice block machine may consists of 2 parts:machinery unit and cooling tower.
TV100 Ice Tube Machine:
It consists the following two pars:

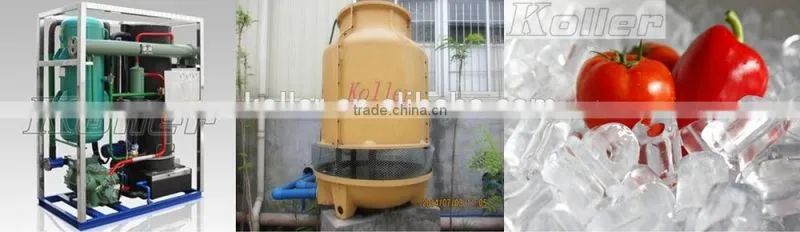

TV100 Tube ice machine + water cooling tower +tube ice

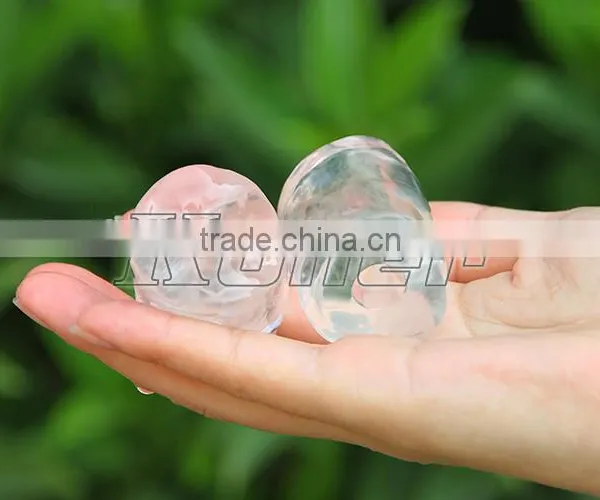

About tube ice
With our unparalleled design of the water cycling system, we solved tube`s white problem ,and the transparent is ensured. The hole is in the middle of the tube, the thickness can be adjusted as you need, and make it even into solid. Widely used in fishery or cool drinks. It is the best choice for bars, hotel, restaurant .
there are three tube size may just ask for your needs :28mm, 34mm,and the length is optional
Product Features:
Harvest ice way: Hot gas defrosts and ice cuting way
Evaporator: tube vessel, its top and bottom part was welded with quality joining.

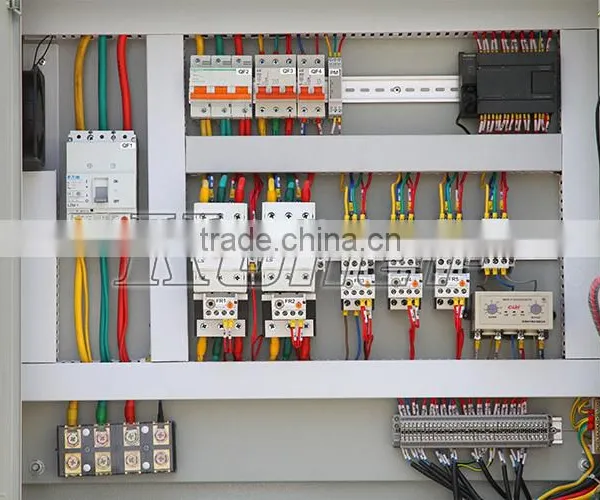

PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.
Rotating Driver Ice Cutter: stainless steel 304 Ice Cutter Blade run by medium speed gear motor.
Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.
Special Design
Special ice making method can get rid of the impurities in water.
Ice making method uses water circulation to meet the clean demand. The ice is sparking and transparent.
The ice making time and production is stable, that is suitable to control your business.
The shape of ice is suitable for storage and delivery, it can be used in all kinds of business.
Main Components for Ice Cube Machine:
Item |
Name of Components |
Brand Name |
Original Country |
1 |
Compressor |
BITZER/COPELAND |
Germany/U.S.A |
2 |
Ice Maker Evaporator Grid |
KOLLER |
China |
3 |
Water cooled condenser |
KOLLER |
|
4 |
Refrigeration components |
DANFOSS/CASTEL |
Denmark/Italy |
5 |
PLC Program control |
SIEMENS |
Germany |
6 |
Electrical components |
LG (LS) |
South Korea |
Installation:
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by Koller engineers:
- (1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
- (2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
- (3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
- (4) 2~ 3 workers are required to assist the installation for big project.
- (5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
Warranty:
- 12 months warranty after delivery.
- Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
- Over 10 engineers available to service machinery overseas.
- Free spare parts replacement within warranty period.
- Beyond guarantee period, we will charge market price for spare parts.
Koller Ice Maker/Tube Ice Machine Product Model:
| Model | TV10 | TV20 | TV30 | TV50 | TV80 | TV100 | TV200 |
Capacity(Tons/24H) |
1 | 2 | 3 | 5 | 8 | 10 | 20 |
| Compressor Power(KW) | 3 | 6 | 9 | 18.75 | 27.75 | 37.5 | 75 |
| Ice Cutting Motor(KW) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Circulating Water Pump(KW) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Cooling Water Pump(KW) | 1.5 | 2.2 | 2.2 | 4 | 5.5 | 5.5 | 7.5 |
| Cooling Fan Power(KW) | 0.37 | 0.55 | 0.75 | 1.5 | 2.2 | 2.2 | 2.2 |
| Weight(KG) | 900 | 1300 | 1600 | 2500 | 3500 | 4000 | 5000 |
Measurement(L*W*H)(MM) |
1650*1270*2000 | 1560*1270*2090 | 1640*1630*1939 | 1940*1670*2330 | 2000*1800*2200 | 2100*1830*2500 | 3200*2100*2500 |
| Cooling Way | Water/Air Cooling | Water/Air Cooling | Water/Air Cooling | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
KOLLER Clients:
Why choose us?
- So far, we have exported ice machines to 150 countries in the world
- Excellent Brand of Chinese Ice Machine Industry.
- The Drafting Committee of National Ice Machine Industry Standard.
- Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
- Independent after-sales department, 10 engineers are ready to service abroad.
