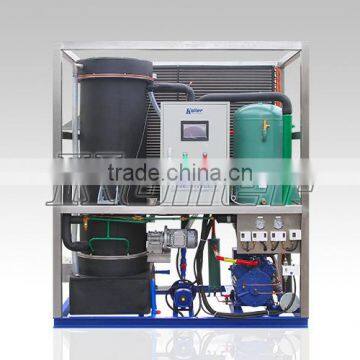

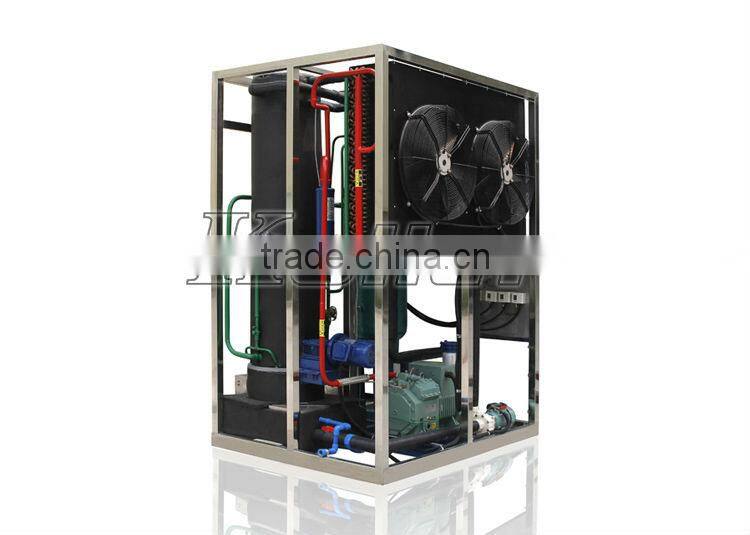

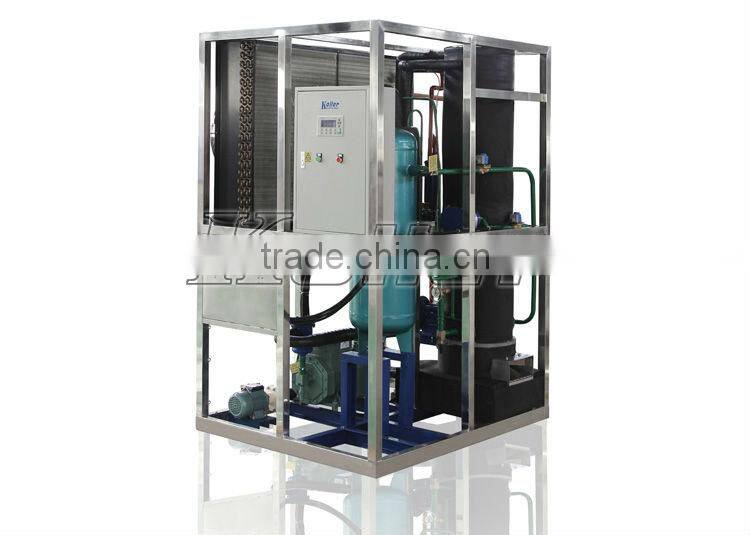

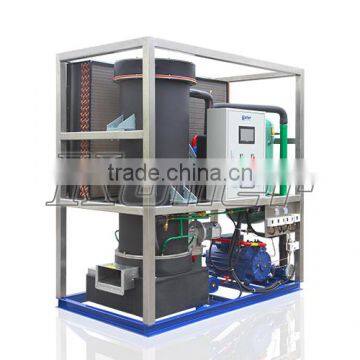

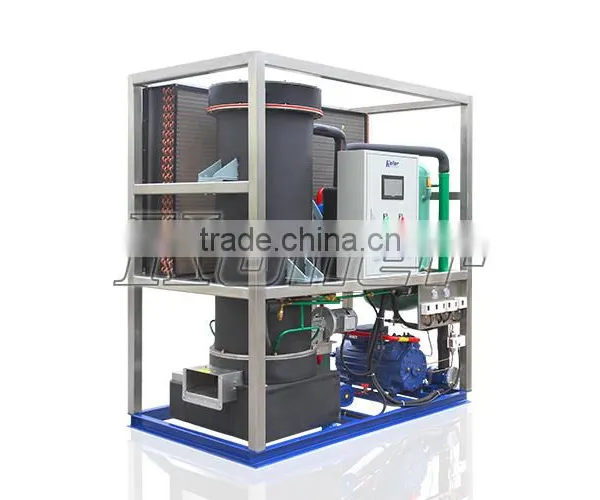

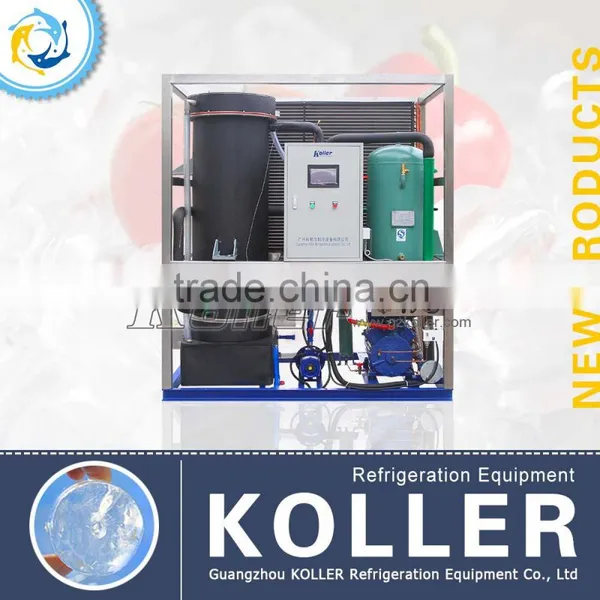

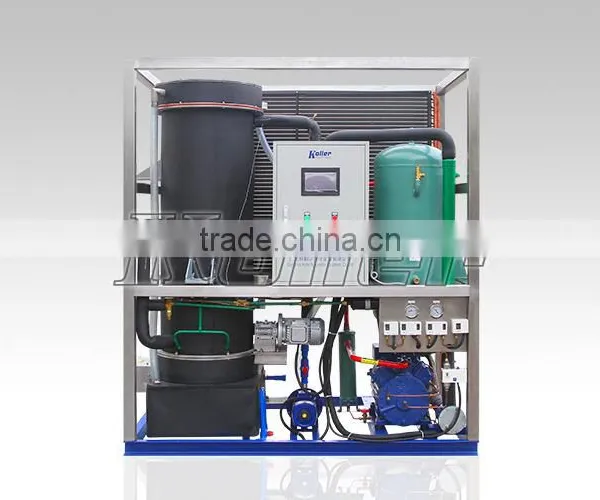

Help CenterKoller Hot Sale 3 Tons per Day Ice Tube Machine With PLC Program Control System
Related Products
-
Guangzhou Koller Food-grade Ice Tube Machine 5 Tons/day TV50 for Daily UsingUS$ 1 - 100,000MOQ: 1 Set -
2 Tons per Day Ice Tube Making Machine With PLC for Drinks Plants TV20US$ 1 - 100,000MOQ: 1 Set
-
Cylinder Tube Ice Machine 5Tons for Latin AmericaUS$ 1 - 10MOQ: 1 Set
-
5 Tons Tube Ice Maker For SalesUS$ 1 - 10MOQ: 1 Set
-
Low-power Consumption Tube Ice Maker for Hotels/Wine ShopsUS$ 1 - 100,000MOQ: 1 Set
3 tons tubo de la maquina de hacer hielo TV30

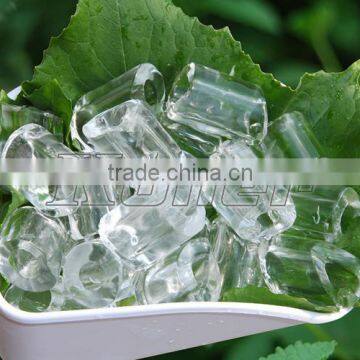

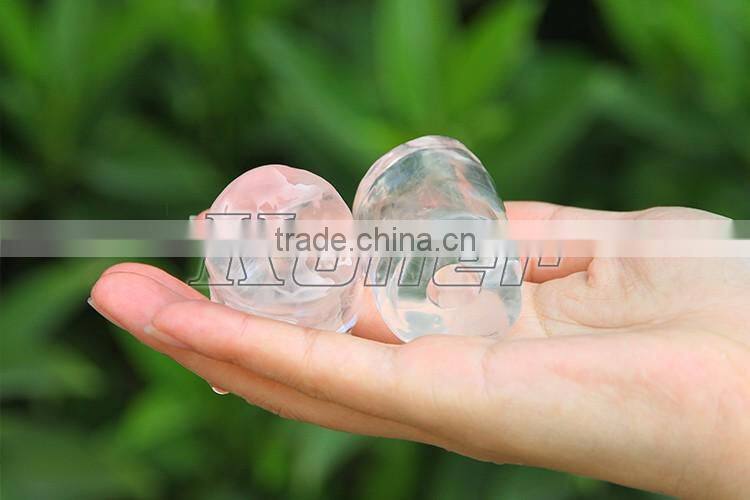

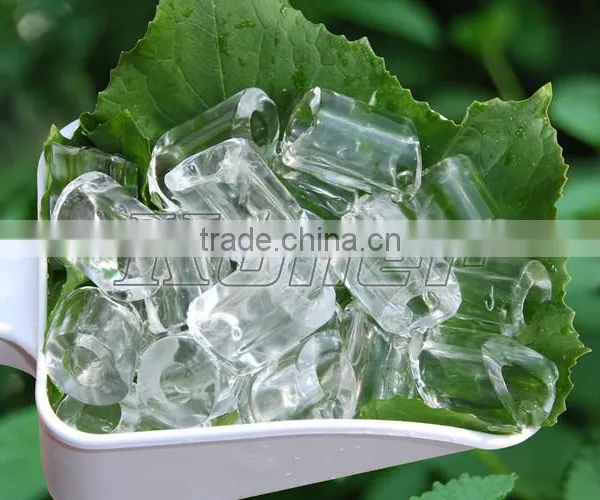

Tube ice introduction:

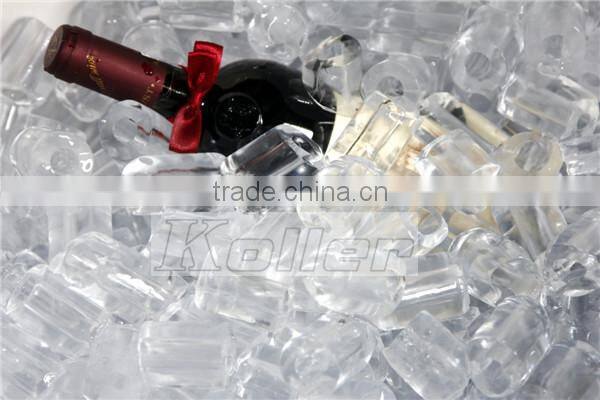

The ice tube looks like hollow cylinder.which has external diameter 18mm, 30mm, 34mm.Length ranging from 25-50mm, and the inner hole diameter can be adjusted according to ice-making time.
The ice appears to be tasteless, sanitary, transparent, good-looking, shape of unity, completely conforms to food standards. Which can be directly eaten, for human consumption.
Application
1 Human consumption ice plant
2 Port ice plant
3 Freezing drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh etc.
4 Widely used in hotel, coffee shop, bar, KTV, restaurant, catering, supermarket, ballroom, etc
5 Aquatic products and food fresh preservation
6 Logistic fresh preservation
7 Chemical industry and concrete projects.
Product Features:
1. Harvest ice way: Hot gas defrosts and ice cuting way
2. Evaporator: tube vessel, its top and bottom part was welded with quality joining.

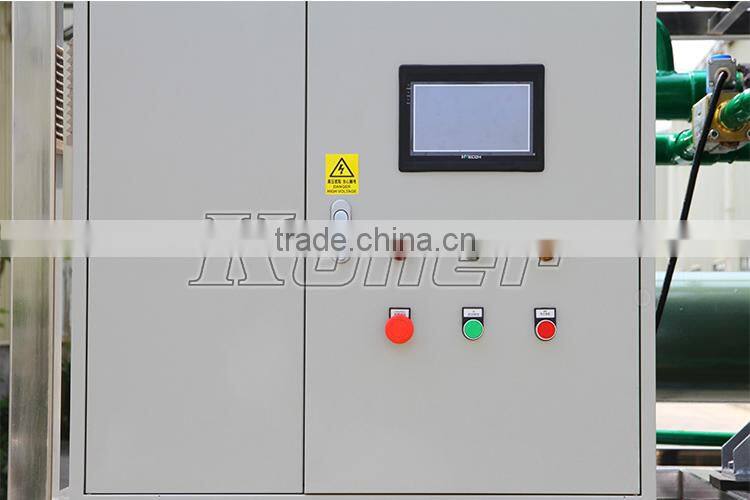

3. PLC program Logic Controller, which allows multiple functions such as automatic machine start and shut down; ice falling automatically when the freezing time is ensured, Automatic water making up.
4. Rotating Driver Ice Cutter: stainless steel 304 Ice Cutter Blade run by medium speed gear motor.

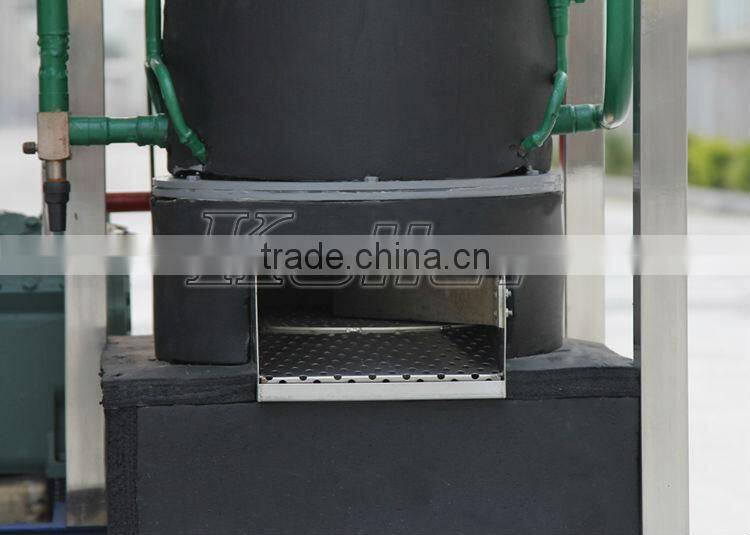

5. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.
6. Special Design
1 Special ice making method can get rid of the impurities in water.
2 Ice making method uses water circulation to meet the clean demand. The ice is sparking and transparent.
3 The ice making time and production is stable, that is suitable to control your business.
4 The shape of ice is suitable for storage and delivery, it can be used in all kinds of business.
Main Components for Ice Cube Machine:
Item |
Name of Components |
Brand Name |
Original Country |
1 |

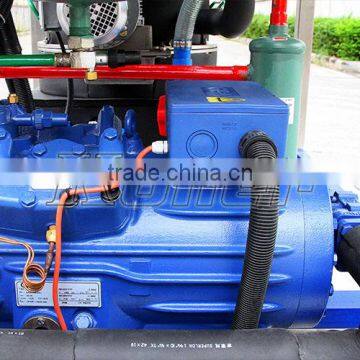

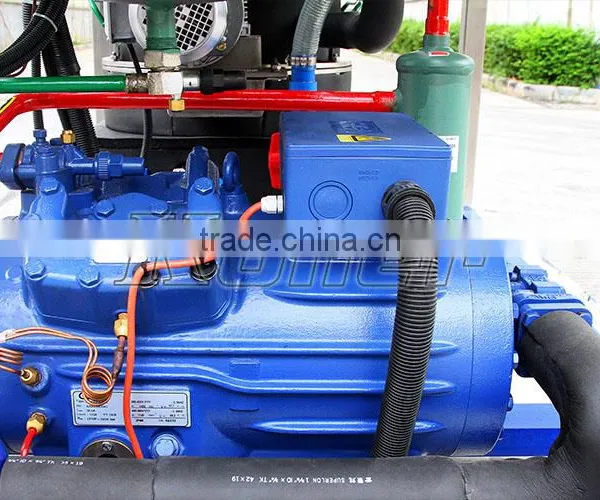

Compressor |
BITZER/COPELAND |
Germany/U.S.A |
2 |
Ice Maker Evaporator Grid |
KOLLER |
China |
3 |
Water cooled condenser |
KOLLER |
|
4 |

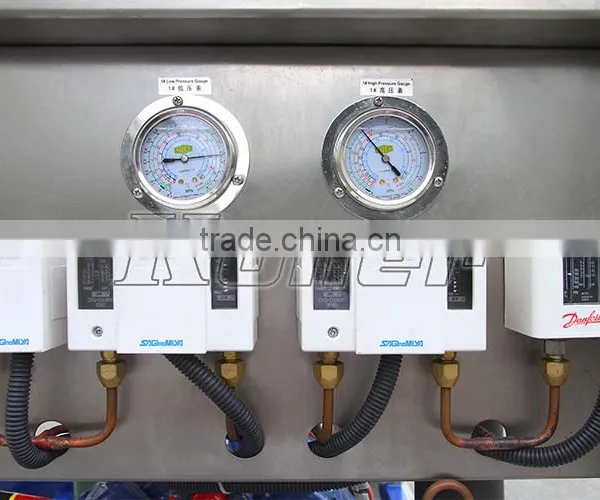

Refrigeration components |
DANFOSS/CASTEL |
Denmark/Italy |
5 |
PLC Program control |
SIEMENS |
Germany |
6 |
Electrical components |
LG (LS) |
South Korea |
7.Installation:
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by Koller engineers:
- (1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
- (2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
- (3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
- (4) 2~ 3 workers are required to assist the installation for big project.
- (5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
8.Warranty:
- 12 months warranty after delivery.
- Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
- Over 10 engineers available to service machinery overseas.
- Free spare parts replacement within warranty period.
- Beyond guarantee period, we will charge market price for spare parts.
Koller Ice Maker/Tube Ice Machine Product Model
Model |
TV10 |
TV20 |
TV30 |
TV50 |
TV80 |
TV100 |
TV200 |
Capacity(Tons/24H) |
1 |
2 |
3 |
5 |
8 |
10 |
20 |
Compressor Power(KW) |
3 |
6 |
9 |
18.75 |
27.75 |
37.5 |
75 |
Ice Cutting Motor(KW) |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
1.5 |
1.5 |
Circulating Water Pump(KW) |
0.75 |
0.75 |
0.75 |
1.5 |
1.5 |
1.5 |
1.5 |
Cooling Water Pump(KW) |
1.5 |
2.2 |
2.2 |
4 |
5.5 |
5.5 |
7.5 |
Cooling Fan Power(KW) |
0.37 |
0.55 |
0.75 |
1.5 |
2.2 |
2.2 |
2.2 |
Weight(KG) |
900 |
1300 |
1600 |
2500 |
3500 |
4000 |
5000 |
Measurement(L*W*H)(MM) |
1650*1270*2000 |
1560*1270*2090 |
1640*1630*1939 |
1940*1670*2330 |
2000*1800*2200 |
2100*1830*2500 |
3200*2100*2500 |

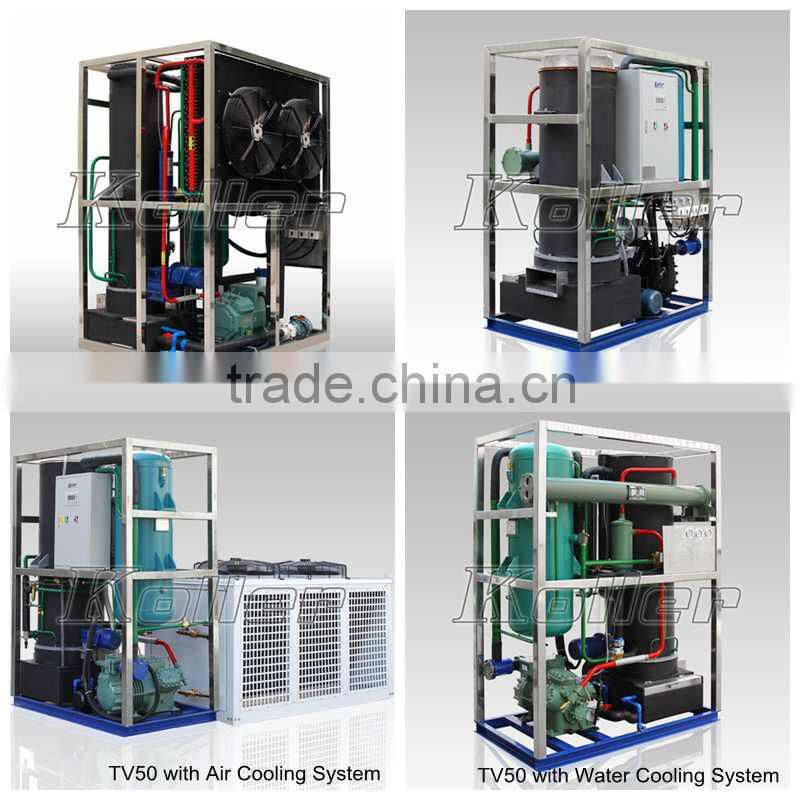

Cooling Way |
Water/Air Cooling |
Water/Air Cooling |
Water/Air Cooling |
Water Cooling |
Water Cooling |
Water Cooling |
Water Cooling |
9. Why choose us?
So far, we have exported ice machines to 150 countries in the world
Our clients is widely-spread in over 150 countries like Malaysia, Philippine, Indonesia, Vietnam, Papua New Guinea, Australia, Fiji, French Polynesia, South Korea, Cyprus, Greece, Belgium, Croatia, Ireland, UK, Jordan, Iran, Syria, Saudi Arabia, Bahrain, Lebanon, Sudan, Nigeria, Angola, Congo, Guinea, Guinea Bissau, Ghana, Cote D'Ivoire, South Africa, Mozambique, Tanzania, Venezuela, Surinam, Chile, Haiti and so on.
Excellent Brand of Chinese Ice Machine Industry.
The Drafting Committee of National Ice Machine Industry Standard.
Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
Independent after-sales department, 10 engineers are ready to service abroad.
Contact Mr.Daniel
Mobile / Whatsapp/ Viber: 0086-181 2683 2539
Skype: danielyang825
Welcome your inquiry! And please chat with us through Trade Manager to know more.
I am always online at your service. It is our great pleasure to offer our best quality,competitive price and best service to you.
