Plate Ice Maker HYF50
Product Description:
1.Unique Structure: having owned two unique technologies: flat-plate heat exchange technology & circulating hot gas for ice dropping technology.
2.Quality advantages: the evaporator of plate ice machine is for falling film plate, its material is stainless steel 304 with stable chemical properties, and reasonable evaporator structure.
3.Prominent in energy saving: only 60 KW power per one ton plate ice, can save power greatly.

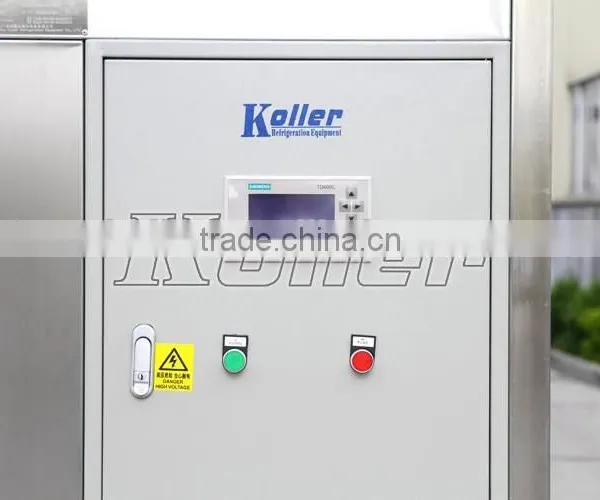

4.Easy operation, PLC editable control, only need to select and confirm the capacity, other procedures will be automatically finished under PLC program control, no need skilled workers to monitor.

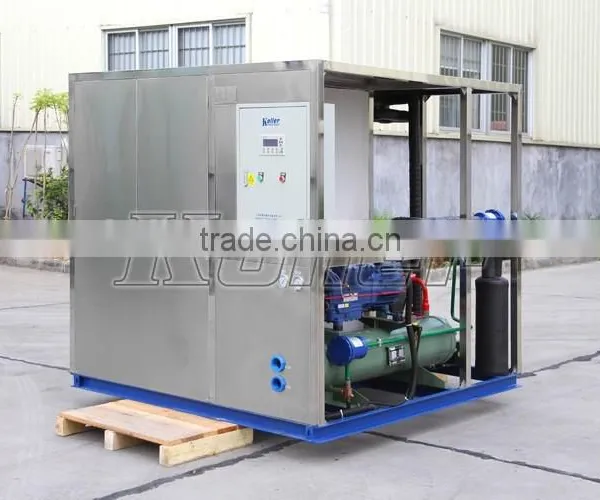

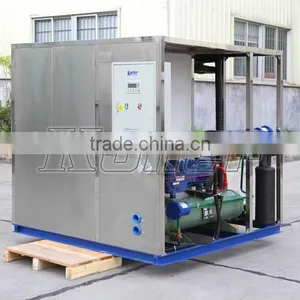

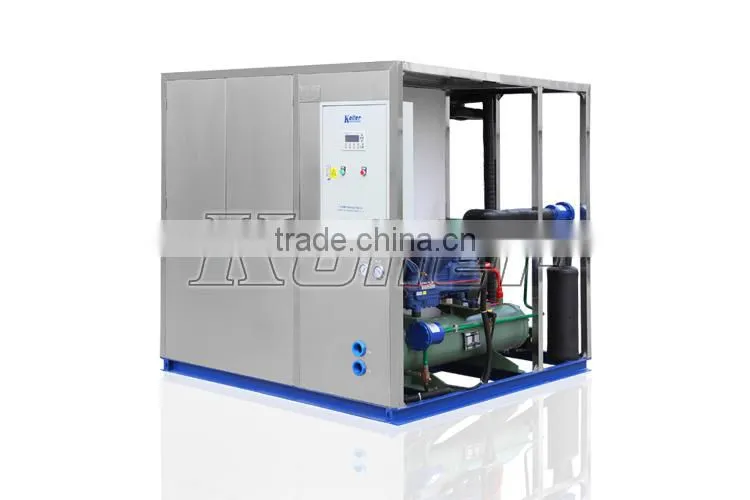

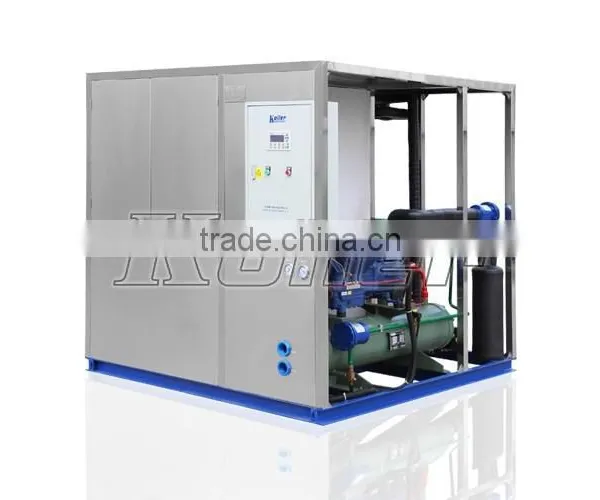

Plate Ice Machine With Stainless Steel 304
| Model | HYF10 | HYF20 | HYF30 | HYF50 | HYF100 | HYF200 | |
| Capacity (24 hours) | 1 | 2 | 3 | 5 | 10 | 20 | |
| Refrigerator | R22/R404A | ||||||
| Compressor brand | Bitzer/Bock /Copeland | ||||||
| cooling way | water/Air | water/Air | water/Air | water | water | water | |
| Compressor power (HP) | 4 | 9 (10) | 14 (15) | 28 (25) | 50HP | 50HP*2 | |
| cutter motor power (KW) | 1.1 | 1.1 | 1.1 | 1.5 | 1.5 | 1.5*2 | |
| Circulate water pump power(KW) | 0.37 | 0.55 | 0.55 | 0.75 | 1.5 | 2.2 | |
| cooling water pump (KW) | 1.5 (w) | 1.1 (w) | 1.5 (w) | 2.2 | 2.2 | 5.5 | |
| cooling tower motor (KW) | 0.18 (w) | 0.25 (w) | 0.37 (w) | 0.75 | 1.5 | 1.5 | |
| cooling motor (KW) | 0.36(A) | 0.9 (A) | 1.56 (A) | / | / | / | |
| Machine size | L (mm) | 1700 | 1950 | 2050 | 2200 | 2650 | 3950 |
| W (mm) | 1130 | 1400 | 1420 | 2050 | 2180 | 2200 | |
| H(mm) | 1830 | 1920 | 2130 | 2150 | 2240 | 2300 | |
| Weight (Kg) | 900 | 1400 | 1750 | 2070 | 3200 | 4500 | |
| Cooling tower | 8T | 10T | 15T | 25T | 40T | 80T | |
If I buy your machine, how could I install? Do you have someone to help the installation?
•A: Before shipping, we will install and test the machine well.
•B: All needed CD and operation manual will be provided to guide the installation step by step.
•C: If requested, we will send one engineer to guide the installation and train your staff how to operate. You just need to afford the round-trip tickets, visa fee and the accommodation and food at the installation for our engineer.
•D: Sometimes a Chinese translator will be needed in your local site.
If there are some problems with the machine, how can you help to solve the problems?
We guarantee the warranty for 12 months. Regarding after-sales service, once machine is out of work, you only need to send us pictures or videos about the fault, we will get back to you with the solution within 24 hours. If the parts is broken and proved by our engineer for non-personal reason, we will offer free parts to replace within guarantee period by DHL, usually 3~4 days to arrive your factory; if it is beyond guarantee period, we will charge market price for the new parts.
How many countries in the world have your Koller machines entered?
Till now, Koller products has been exported to more than 150 countries and areas in the world, such as Philippines, Malaysia in Southeast Asia, Saudi Arabia, Dubai in Middle East, Spain, Hungary, England in Europe, Nigeria, Benin, Congo, South Africa in Africa, U.S.A in North America, Chile, Peru, Paraguay in South America etc.
-1. Q: Power supply: the power can be single phase?
No, it need the industrial supply power for the whole plant, say that 3phase power, 380~420V,50Hz, 3P or 220~240V, 60Hz, 3P.
-2. Q: If this is my first time to invest ice plants, then how should I prepare my factory?
Water treatment to pure water è ice machine to make ice è
digital scale and sealing machine to pack ice bags è cold room to store ice
Water treatment to make pure water: https://img13.fr-trading.com/product/60126862351-0/Pure_water_making_machine_for_drinking_ice_plant.html
Cold room to store ice: https://img13.fr-trading.com/product/60125613772-214059528/Koller_cood_storage_room_to_keep_ice.html
What's the main Products in Koller ice machine company?
Yes, there are various products in Koller Company
•Cube Ice Machine
•tube ice machine
•Block ice machine
•Flake ice machine
•Plate ice machine
•Cold room
Koller specialize in ice machine research, design, manufacture for 10 years since 2004, our products sell all over the world, and you can see many refrigeration equipments in your daily life, we produce block ice machine, tube ice machine , cube ice machine, plate ice machine , flake ice machine and cold room. Koller is one of biggest ice machine producer in China, you can buy different kinds of ice machine from us for different applications.
