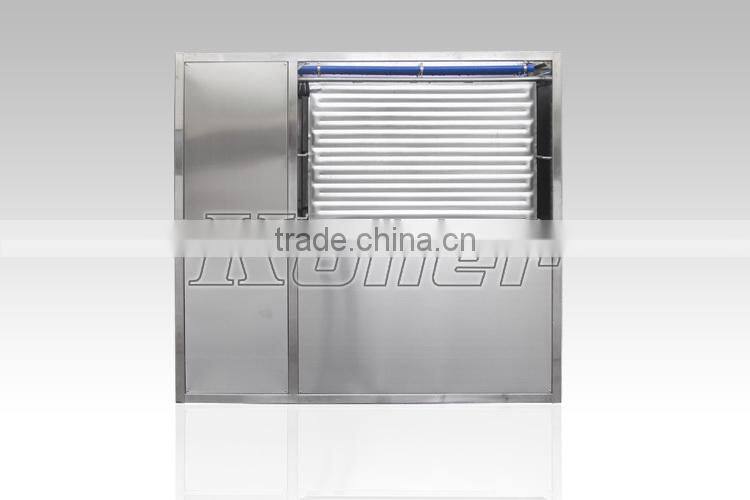

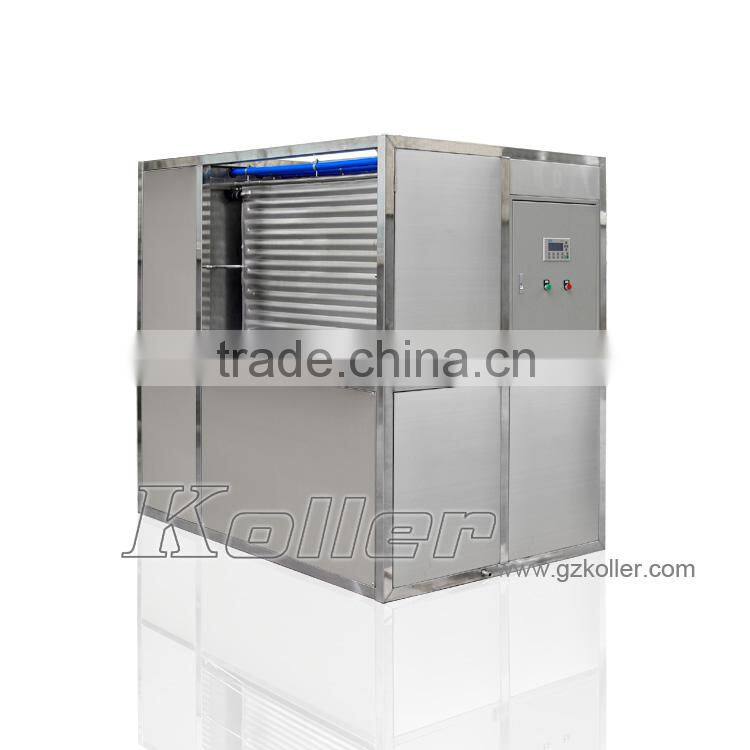

5000kg Plate Ice Making Machine for fish market Koller HYF50
- 50 Set / Sets per Month
- Guangzhou Port
- T/T D/P D/A Credit Card PayPal
- New York slide valve displacement sensor 534D1251H01, maintenance of lubrication system malfunction for turbine compressor
- New shaft seal 534M0163G02, York TDSH193 compressor disassembly and maintenance parts
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
Product Details
Condition: | New | Capacity: | 5 tons /24 hours | Place of Origin: | Guangdong, China |
Brand Name: | Koller | Model Number: | HYF50 | Ice Shape: | Other, plate ice |
Voltage: | 380V,50HZ,3P/220V,60HZ,3P | Power(W): | 18750 | Dimension(L*W*H): | 2100mm*1910mm*2090mm |
Weight: | About 1400kg | Certification: | CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications

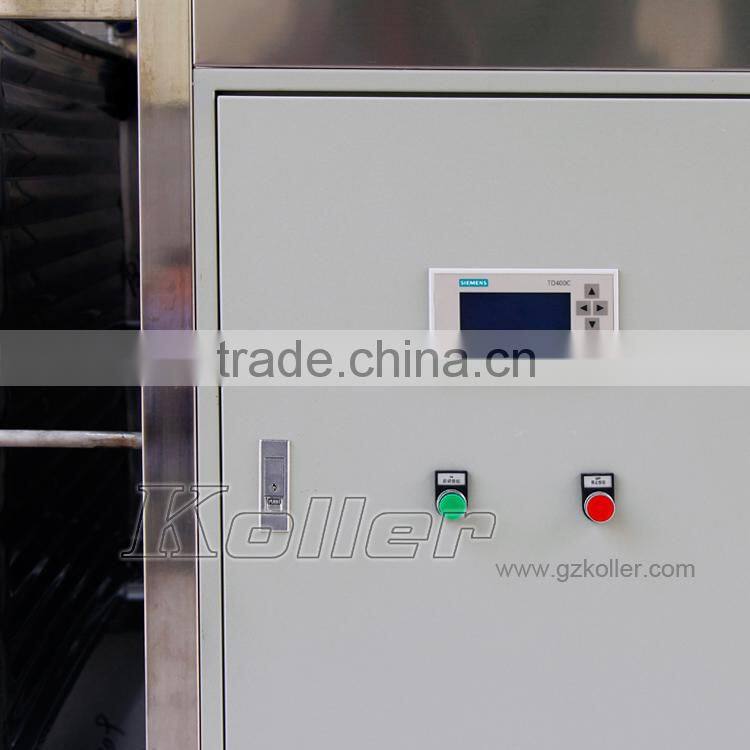

1.Unique and Absolutely quality advantage2.Siemens PLC control system
3.Easy operation and Energy saving
Plate Ice Machine HYF50
1.Plate ice introduction: Plate ice is a kind of irregular sheet ice with about 40×40mm~80×80mm in size, and 10 mm~15mm in thickness. The thickness can be adjusted according to ice-making time with the maximum gauge being 25mm. Plate ice is a kind of thick and transparent ice which has good air permeability and a long shelf life. Small capacity from 1tons to 10tons day offered.
Application fields: Plate ice is usually used for ice storage systems and is also applied to concrete mixing plants, chemical plants, mines, fresh vegetables, fishing and aquatic insulations.
2.Product Description:
Unique Structure: having owned two unique technologies: flat-plate heat exchange technology & circulating hot gas for ice dropping technology.

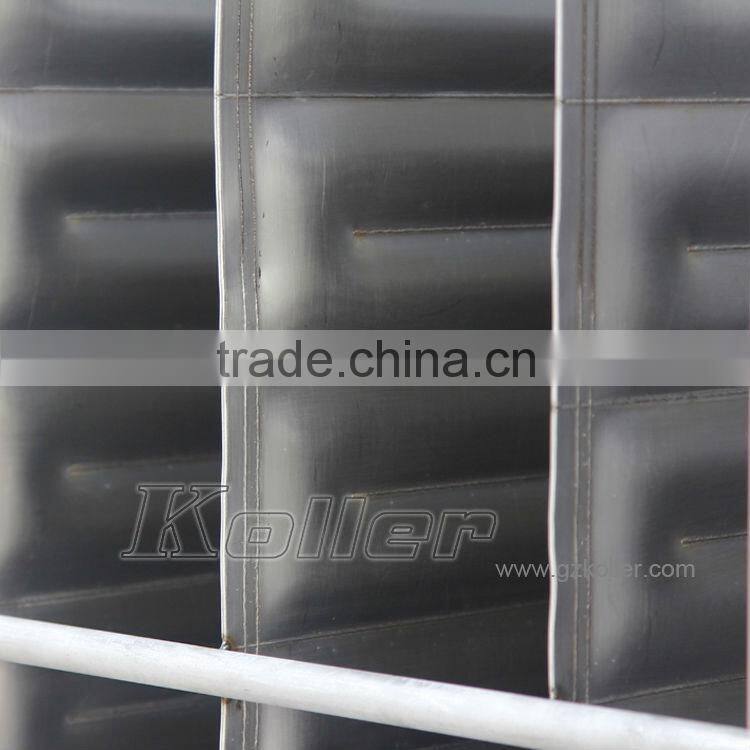

Quality advantages: the evaporator of plate ice machine is for falling film plate, its material is stainless steel 304 with stable chemical properties, and reasonable evaporator structure.
Prominent in energy saving: only 60 KW power per one ton plate ice, can save power greatly.
Easy operation, PLC editable control, only need to select and confirm the capacity, other procedures will be automatically finished under PLC program control, no need skilled workers to monitor.
3.Main Components:
4. Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2). Installing by Koller engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
(5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
5. Guarantee Period:
During 12 months after selling, maintenance and parts free of charge.
6. Packing way: Packed in air bubble film inside, then in plywood case outside.
Koller Plate Ice Maker Product Model:
Model | HYF10 | HYF20 | HYF30 | HYF50 | HYF100 | HYF200 |
Capacity(Tons/24H) | 1 | 2 | 3 | 5 | 10 | 20 |
Compressor Power(KW) | 3 | 6 | 9 | 18.75 | 37.5 | 75 |
Ice Crusher Motor(KW) | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
Circulating Water Pump(KW) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 |
Cooling Water Pump Power(KW) | 1.5 | 2.2 | 2.2 | 4 | 5.5 | 7.5 |
Cooling Fan Power(KW) | 0.37 | 0.55 | 0.75 | 1.5 | 2.2 | 2.2 |
Weight(KG) | 900 | 1000 | 1250 | 1400 | 2000 | 2900 |
Measurement(L*W*H)(MM) | 1600*1000*1700 | 1850*1230*1730 | 1950*1400*1920 | 2100*1910*2090 | 2200*2120*2140 | 3600*2120*2150 |
Cooling Way | Water/Air Cooling | Water/Air Cooling | Water/Air Cooling | Water Cooling | Water Cooling | Water Cooling |
Why choose us?
So far, we have exported ice machines to 150 countries in the world
Our clients is widely-spread in over 150 countries like Malaysia, Philippine, Indonesia, Vietnam, Papua New Guinea, Australia, Fiji, French Polynesia, South Korea, Cyprus, Greece, Belgium, Croatia, Ireland, UK, Jordan, Iran, Syria, Saudi Arabia, Bahrain, Lebanon, Sudan, Nigeria, Angola, Congo, Guinea, Guinea Bissau, Ghana, Cote D'Ivoire, South Africa, Mozambique, Tanzania, Venezuela, Surinam, Chile, Haiti and so on.
