2016 Best Price for Koller CV1000 1 tpd Ice Cube Machine
with AUTOMATIC ice discharge function
Basic parameter:
Daily capacity: 1 tons per day
Refrigerant: R22 or the Eco-friendly R404a[suggested]
Standard cooling way: Water cooled type, can also design air cooling condenser

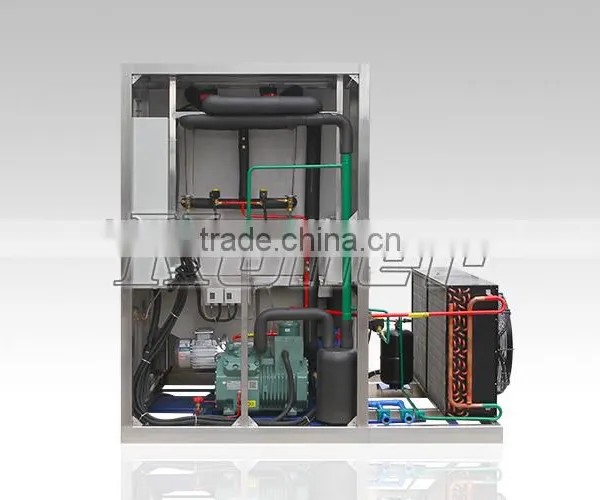

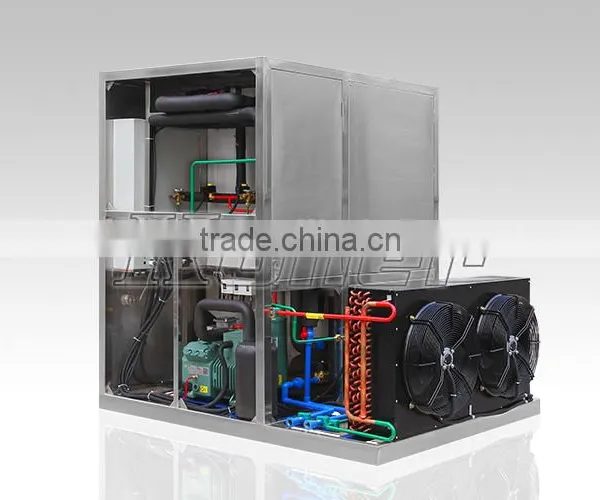

The air cooled type is all in one design, and the refrigerant have been fully charged , so it can be put in use quickly.
But for the African hot ambient temperature, to ensure the stable capacity, we suggest you have the water cooled type design.

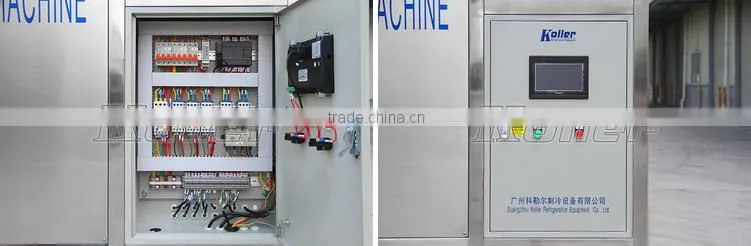

Controlling: Germany Siemens PLC with touch screen
Ice bin: equiped, the volume is for 100kg

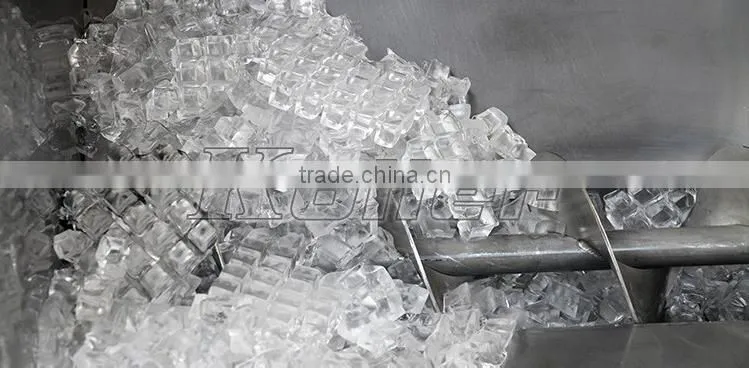

On the bottom of the ice bin, we designed a screw for the ice dischage, in this way, no need hand-touching the ice cubes, ensured the ice cube sanitary.
Single granule Ice cube size: 22*22*22mm, or 29*29*22mm
Material of the framework and board: FOOD STANDARD SUS304

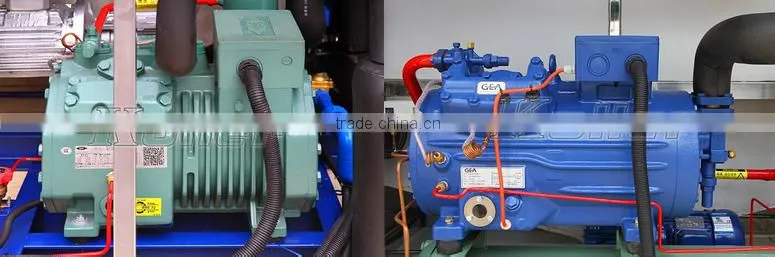

COMPRESSOR: BITZER [Made in China] or BOCK [Imported from Germany]
Koller ice cube machine parameter
Water cooled design dimension:1700*1230*1970mm / Air cooled design dimension:1800*1650*1750mm
Model Number |
CV1000 |
CV2000 |
CV3000 |
|
Capacity (ton/24hours) |
1 |
2 |
3 |
|
Cooling way |
Water/Air |
Water/Air |
Water/Air |
|
Ice making grids amount |
4 |
8 |
12 |
|
Compressor power(HP) |
4 |
9 (6) |
14/15 (12) |
|
Reducer motor power |
0.75 |
0.75 |
1.1 |
|
Ice making water pump (KW) |
0.37 |
0.55 |
0.55 |
|
Cooling tower pump (KW) |
0.75 (Water) |
1.1 (Water) |
1.1 (Water) |
|
Cooling tower fan (KW) |
0.18 (Water) |
0.18(Water) |
0.37(Water) |
|
Air cooling condenser (KW) |
0.36 (Air) |
0.9 (Air) |
1.56 (Air) |
|
Dimension |
Length (mm) |
1700/1800 |
1730/2150 |
2100/3158 |
Width (mm) |
1230/1650 |
1520/1640 |
1940/1950 |
|
Height(mm) |
1970/1750 |
2030/2030 |
2050/2030 |
|
Weight (Kg) |
900 |
1200 |
1350 |
|
Cooling tower water flow |
8T |
15T |
20T |
|

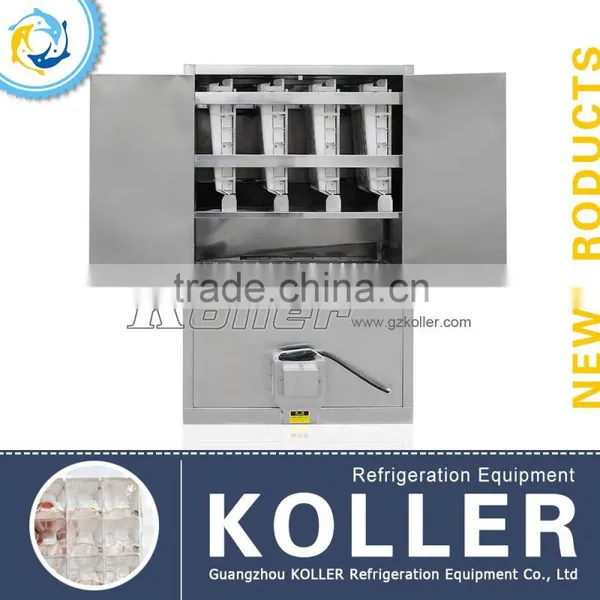

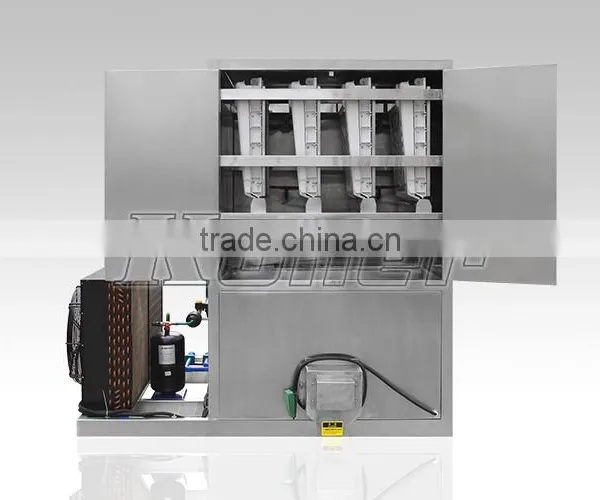

Ice making grids*4 pieces
Ice discharger outlet, controlled by the pedal switch

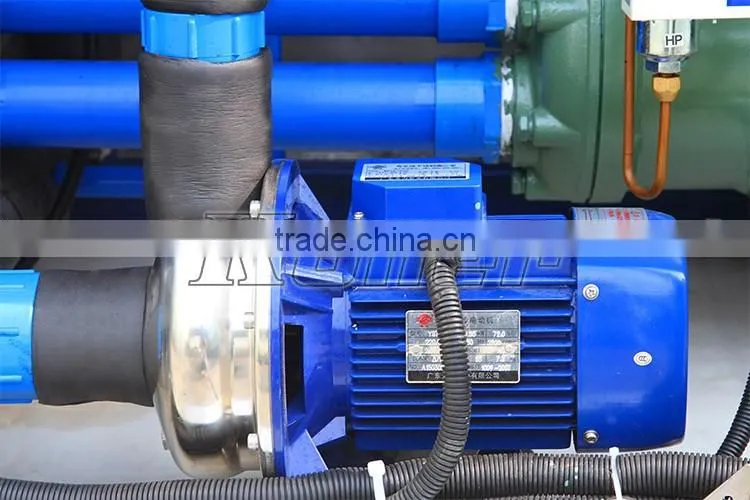

Ice making water pump

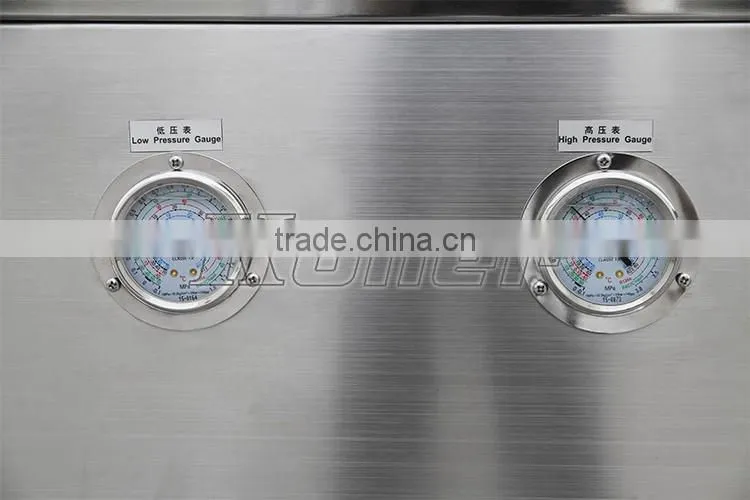

Low and high Pressure Guage

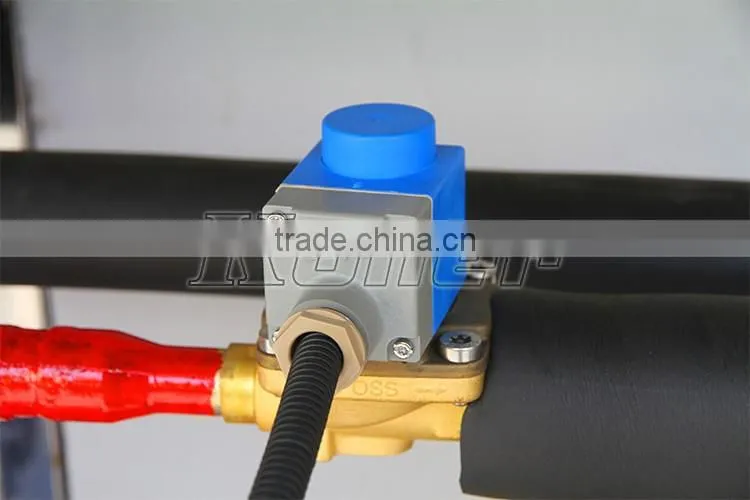

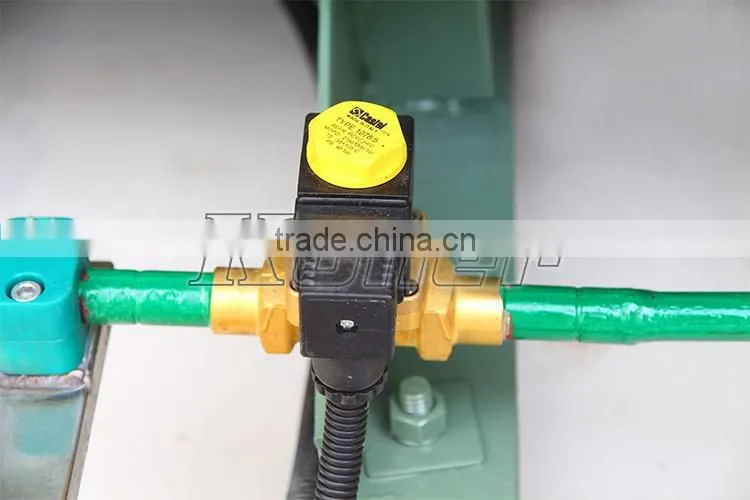

Low pressure side solenoid valve
High pressure side solenoid valve

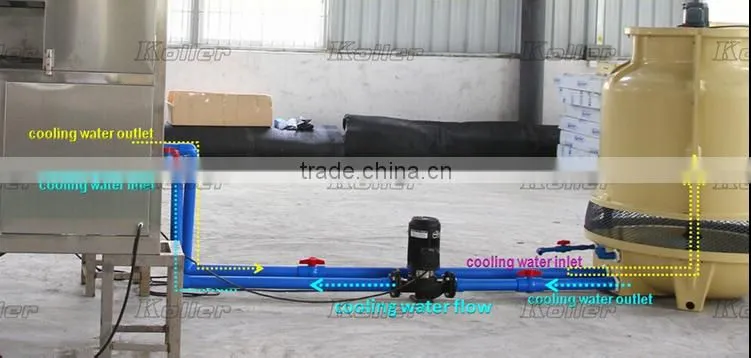

If you choose water cooled type, the Cooling tower will be provided by us, then it is a completed set.
So dear friend, can 1 tons daily capacity meet your needs?
For more specification, please feel free to leave your inquiry to us, we will reply with 1 hour.
You can also contact me directly by Mobile/WhatsApp/Viber:
Scan this QR code to save me to contact quickly:
