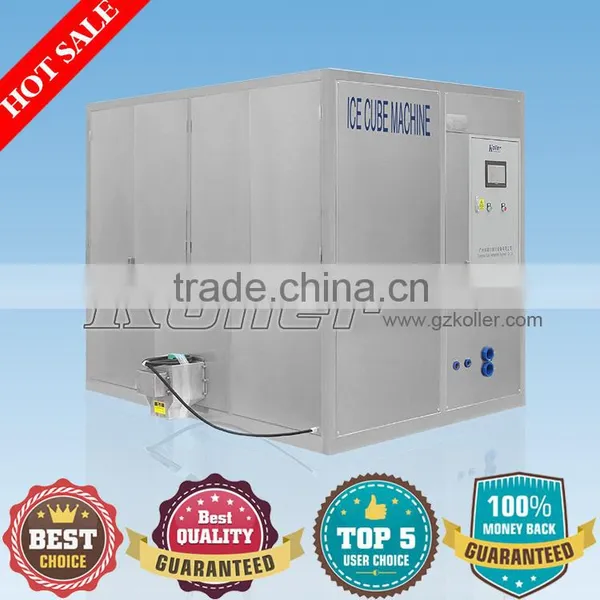

Koller new type 3 ton commercial cube ice machine
1. Application of Commercial Ice Cube Machine
Koller CV series Commercial Ice Cube Machinehas firstly adpoted the three leading technologies of adjustable ice thickness, automatic water supplying, automatic ice freezing and ice falling.It is for food-grade ice cube machine,which is widely used in hotels, restaurants, bars, fast-food shops, supermarkets and cold drink shops, etc.
Koller Commercial Ice Cube Machineis highly efficient, automatic operation, energy saving and environmental friendly and are quickly becoming the most popular choice for clients around the world.
Cube ice we designed have two sizes for choose, 22mm x 22mm x 22mm, 29mm x 29mm x 22mm.
Daily capacity of one single cube ice machine can be from 1 ton to 20 tons.
2. Specification of CV3000 ice cube machine:
- Machinery unit: 2020mm*1920mm*2030mm;
- Cooling tower:1430mm*1430mm*1730mm.
3. Product Description
- Reasonable design for the framework structure with stainless steel 304, save space, and easy to install;
- Greatly save energy, only 80-85KW*H are consumed to produce one-ton ice;

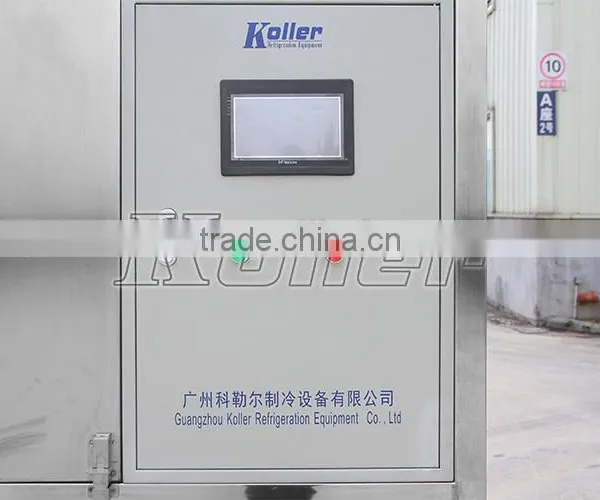

- Equipped with Siemens PLC central program control, which allows multiple functions such as automatic machine start and shut down; ice stopping production when the ice bins are full, Automatic water making up;
- Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags;

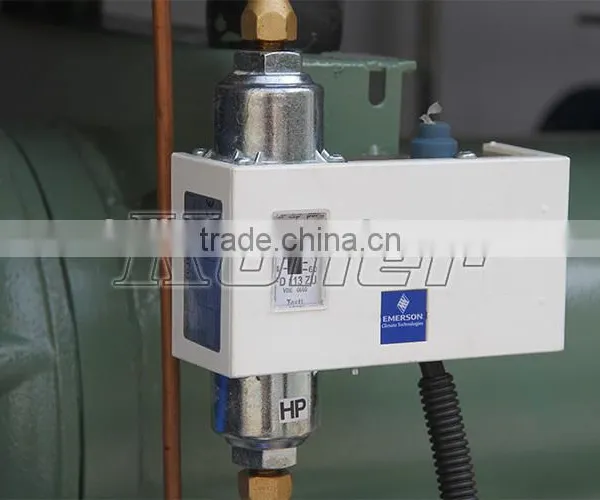

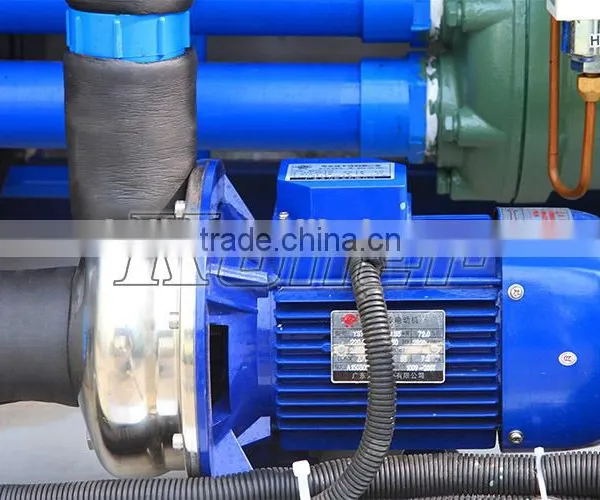

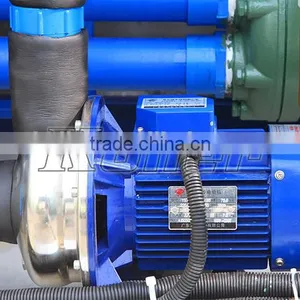

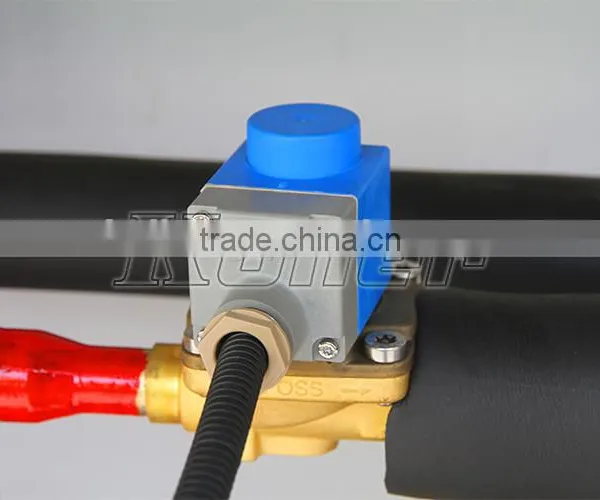

- Adopts the world's famous brand components, which will gurantee the best refrigeration effect and working condition.
Economic Packing System
Ice discharge outlet & pedal switch
Packing system with digital scale
Sealing machine
Plastic bags
Different famous brand components
4. Installation:
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by Koller engineers:
- (1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
- (2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
- (3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
- (4) 2~ 3 workers are required to assist the installation for big project.
- (5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
5. Why choose Koller?
- So far, we have exported ice machines to 65 countries in the world.
Excellent Brand of Chinese Ice Machine Industry.
The Drafting Committee of National Ice Machine Industry Standard.
Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
Koller project cases
4sets of CV3000 ice cube machine in Hainan
Koller different projects
Koller Customers
