Product Details
Condition: | New | Capacity: | 10000kg per day | Place of Origin: | Guangdong, China |
Brand Name: | Koller | Model Number: | CV10000 | Ice Shape: | Other, Ice Cube |
Voltage: | 220V/380V | Power(W): | 37.5KW | Dimension(L*W*H): | 5840mm*1980mm*2320mm |
Weight: | 3900kgs | Certification: | CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

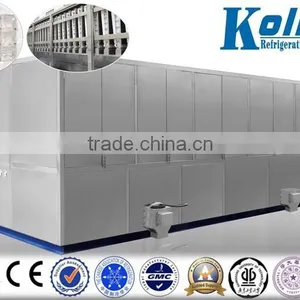

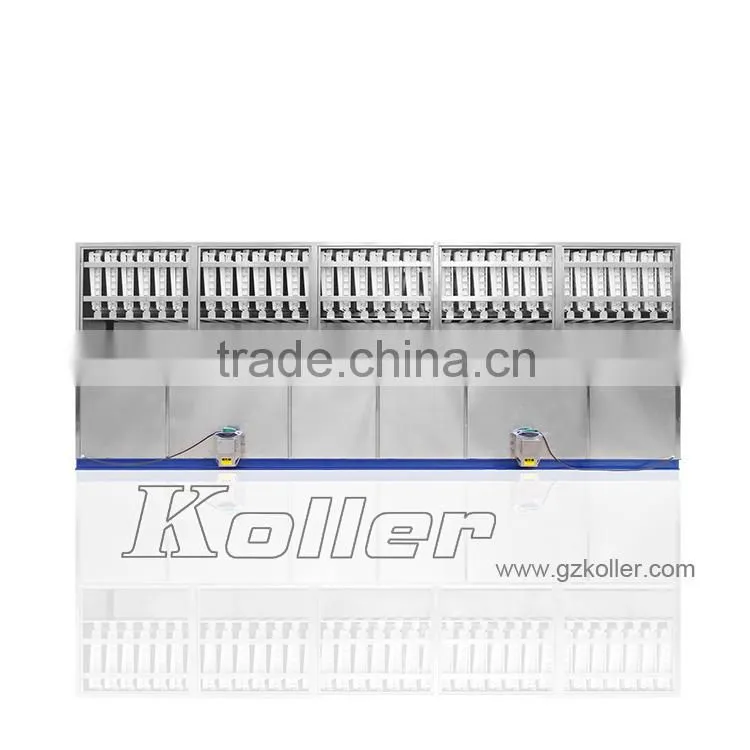

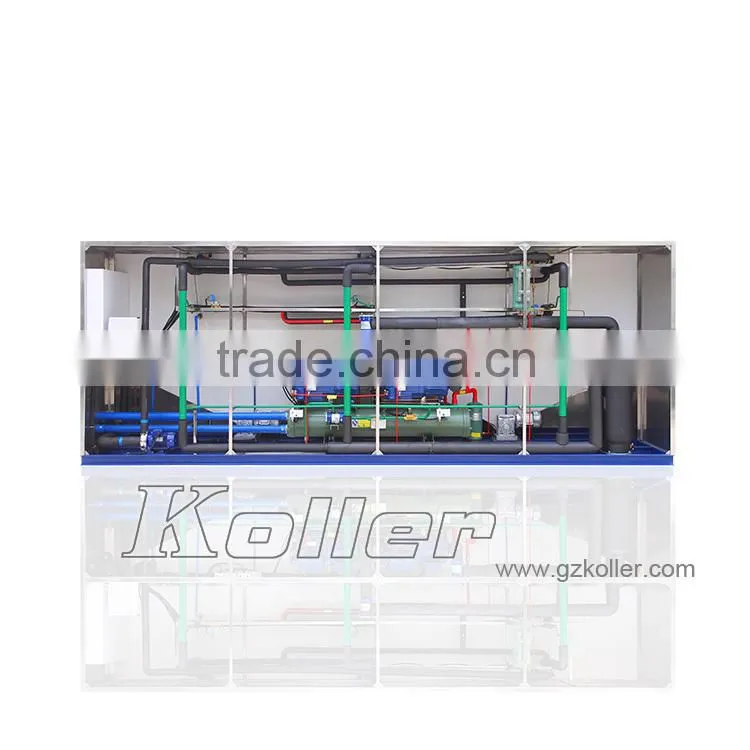

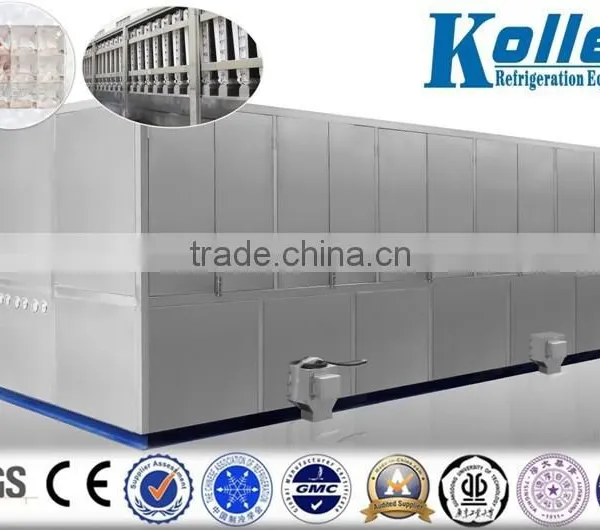

CV10000 Ice Cube Machine

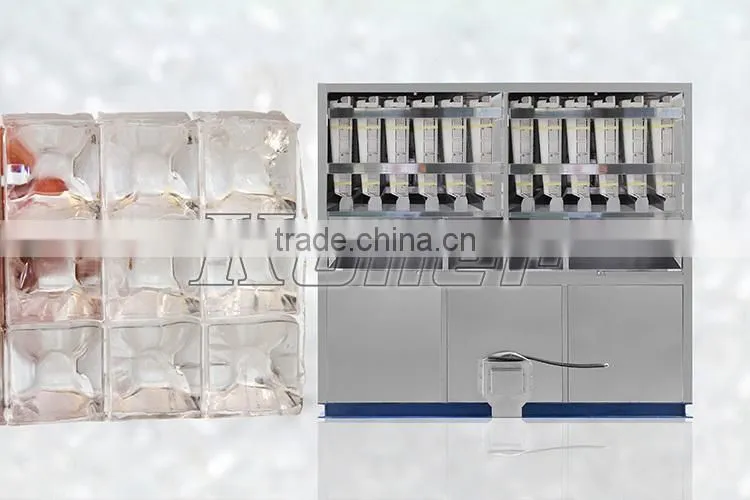

1. Cube ice Size:
22mm*22mm*22mm and 29mm*29mm*22mm
We design 2 kinds of the cube ice size for our customer according to their application.
2. Our main technology.
Large Capacity: From 1 ton to 20tons (Daily production) , or even more as we design for customers. The production can reach 90%-95% in summer, what’s more, t’s production can reach 100%-130% if the ambient temp is lower than 20 centigram.
Lower prower consumption: It consumes 85to90KWH/ton, the ambient temp is lower, the power consumption will be less.
Automatic operation : It adopts PLC (programmable Logic controller) centralized controller.
Safe and sanitary: It adopts foodgrade stainless steel 304 material for the whole machine. With the automatic cleaning function and particular water tank design( water channel and ice discharge.
Stable performance : The machine can make transparent, crystalline, hard and regular ice, it had reach government standard requirements for the edible machine.
This kind of ice cube machine is semiautomatic control by PLC program system, such as water make up system, water flowing system, ice freezing system, ice falling system are automatically control by PLC and display on monitor, it’s easy to control.
What’s more, this machine comes with an ice storage bin where the ice falling down. Inside the ice bin we adopt screw dispense conveyor , ice discharge outlet system and pedal switch system, there designs are matching with packing system.
Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts operation manual and CD are provided to guide the installation.
2). Installing by Koller engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
(5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
Koller specialize in ice machine research, design, manufacture for 10 years since 2004, our products sell all over the world, and you can see many refrigeration equipments in your daily life, we produce block ice machine, tube ice machine , cube ice machine, plate ice machine , flake ice machine and cold room. Koller is one of biggest ice machine producer in China, you can buy different kinds of ice machine from us for different applications.
