Specifications
1.PLC control system2.SUS304a stainless steel

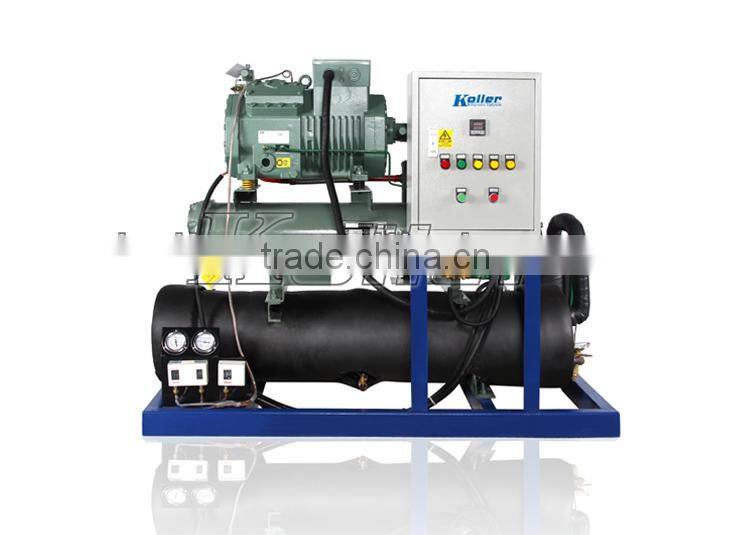

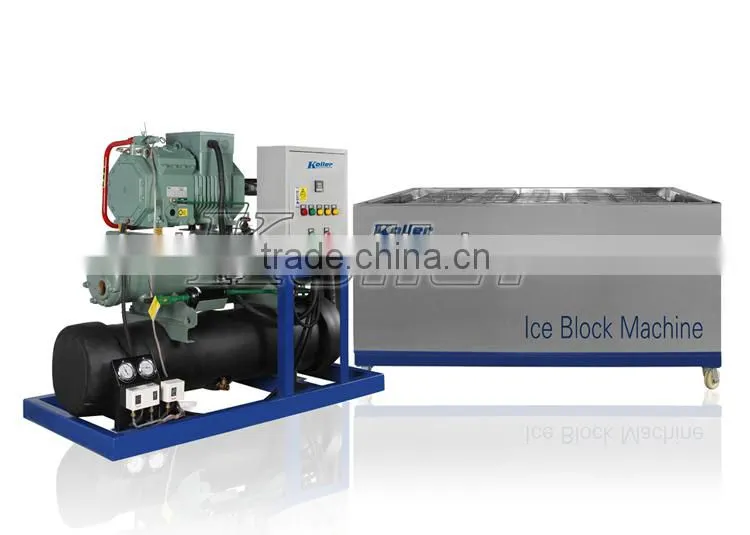

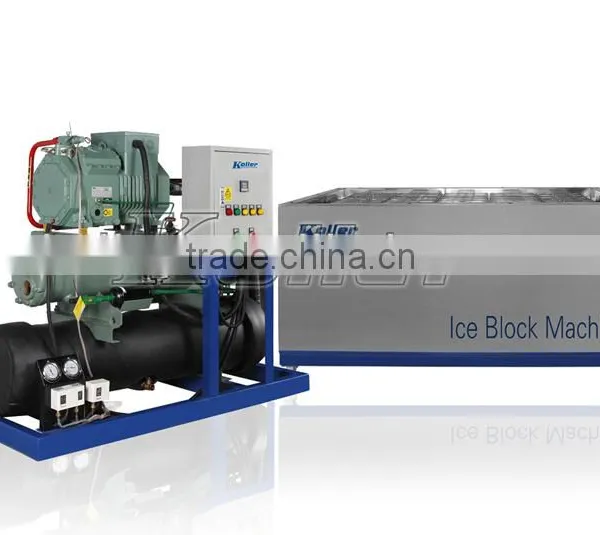

ICE BLOCK MACHINE MB30
1. Ice blocks Application:
- To fishman or fishboat at the harbor.
- Wholesale to food markets, restaurants, hotels for fish, meat, vegetable storage.
- Long-distance transport truck for food storage.
- Concrete cooling in construction projects.
- To small retailers for resale.
- To end users for cooling drink, keep food fresh.

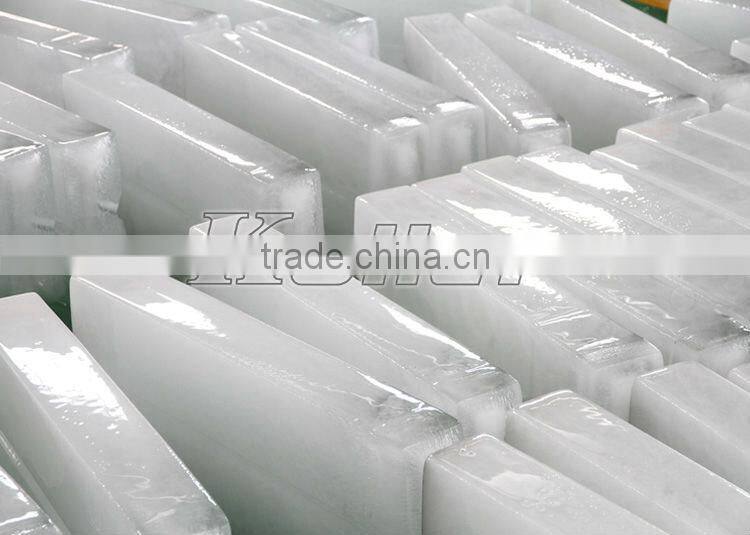

Standard Ice Block Size and Freezing Time( It can be done as customers’ requirement. )
|
Ice Size (kg)/pc |
Ice Dimension(mm) Thickness*Width*Height |
Freezing Time (hours) |
||||||||||
5 |
80*150*500 |
4.8 |
||||||||||
10 |
100*200*600 |
6 |
||||||||||
15 |
100*300*600 |
6 |
||||||||||
20 |
120*270*750 |
8 |
||||||||||
150*210*750 |
12 |
|||||||||||
25 |
120*330*750 |
8 |
||||||||||
150*200*1000 |
12 |
|||||||||||
30 |
120*300*1000 |
8 |
||||||||||
150*240*1000 |
12 |
|||||||||||
50 |
150*400*1000 |
12 |
||||||||||
100 |
250*500*1100 |
24 |
||||||||||

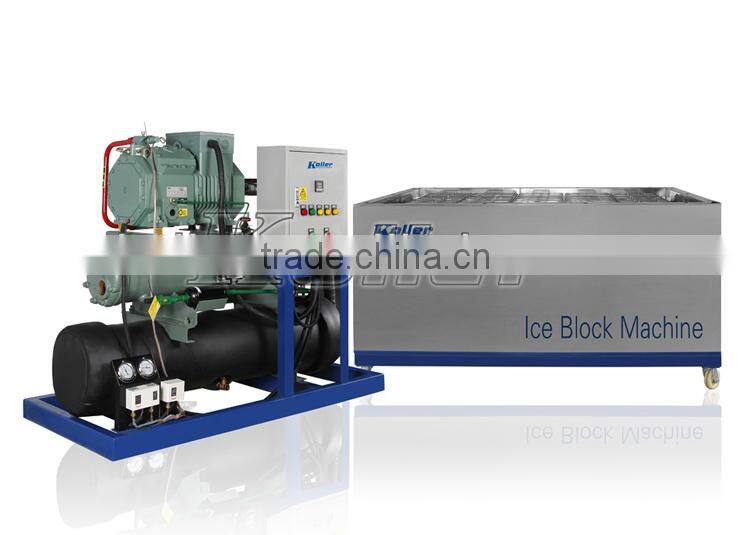

2. MB20 Block ice machine :
- Main unit: 1660mm*860mm*1450mm
- Salt Water Tank:2460mm*1550mm*1040mm
3. Product Description
- Reasonable design for the ice moulds and salt water tank with stainless steel 304, save space, and easy to install;
- Greatly save energy, only 80-85KW*H are consumed to produce one-ton ice;
- Equipped with Siemens PLC central program control, which allows multiple functions such as automatic machine start and shut down; ice stopping production when the ice bins are full, Automatic water making up;
- Adopts the world's famous brand components, which will grantee the best refrigeration effect and working condition.
Item |
Name of Components |
Brand Name |
Original Country |
1 |

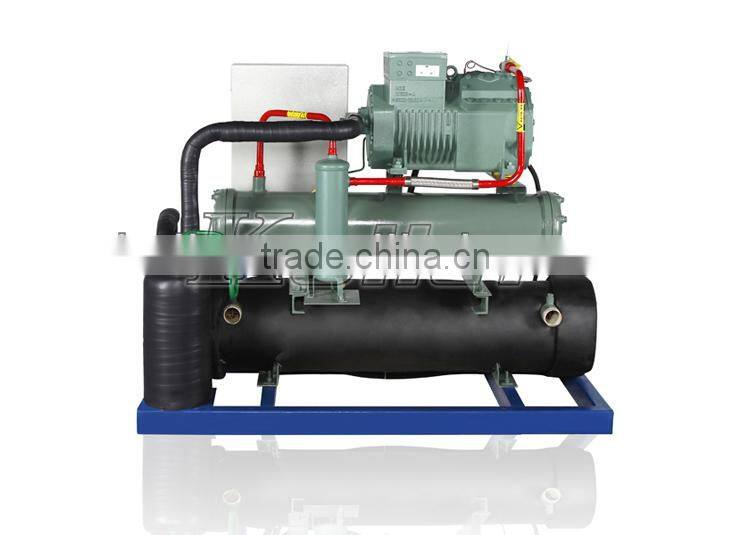

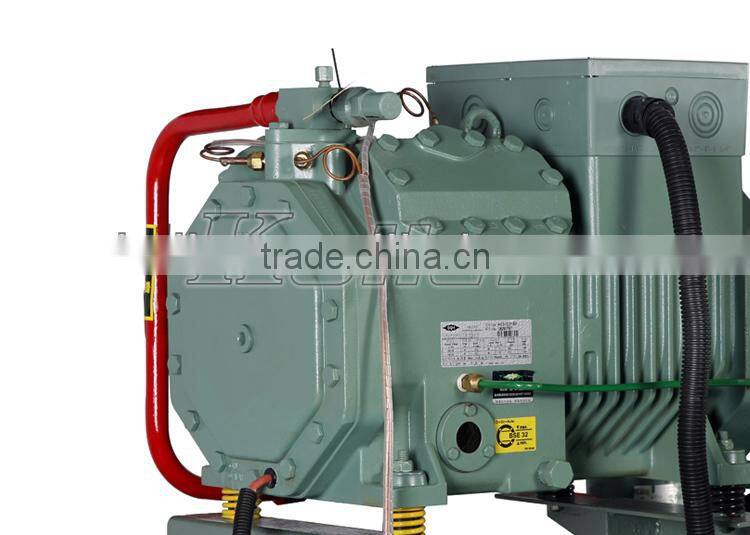

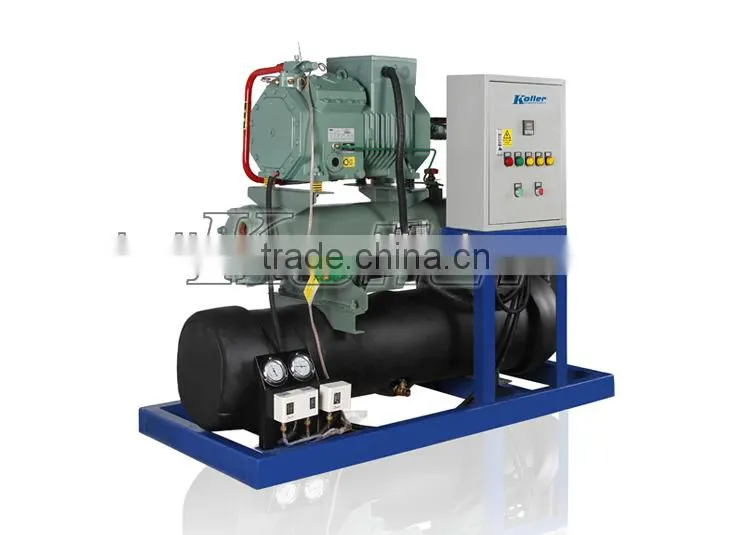

Compressor |
BITZER/Refcomp |
Germany/Italy |
2 |

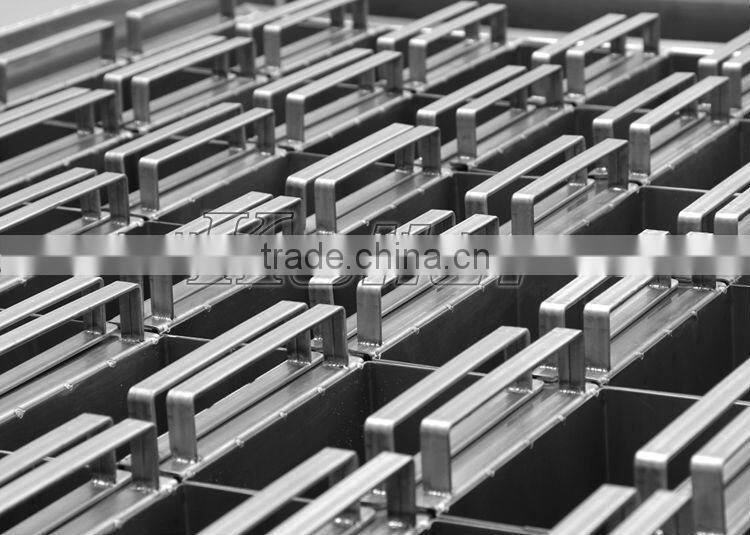

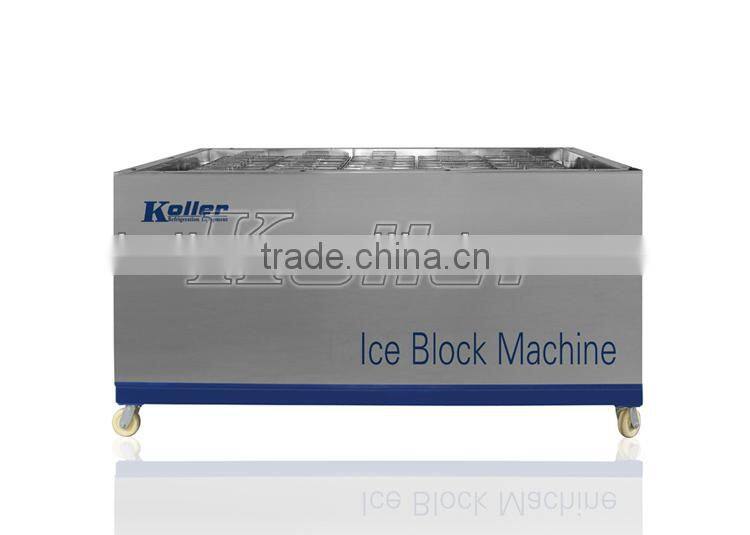

Ice moulds and salt water tank |
KOLLER |
China |
3 |

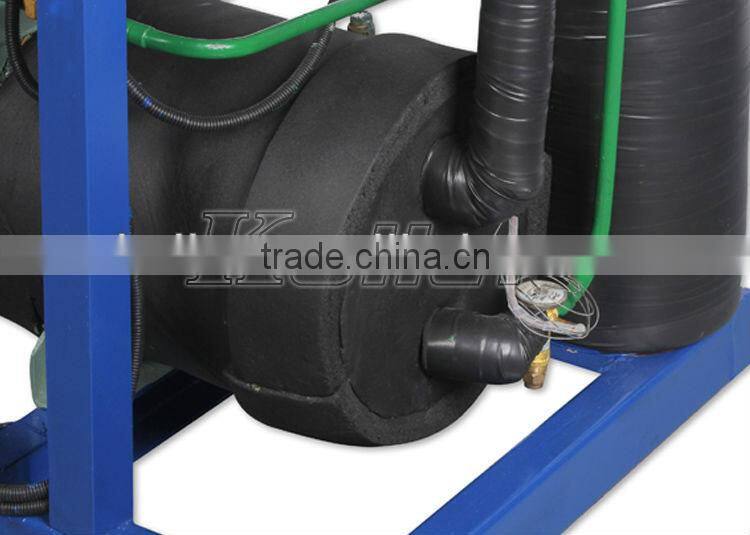

Water cooled condenser |
KOLLER |
|
4 |
Refrigeration components |
DANFOSS/CASTAL |
Demark/Italy |
5 |
PLC Program control |
SIMENS |
Germany |
6 |

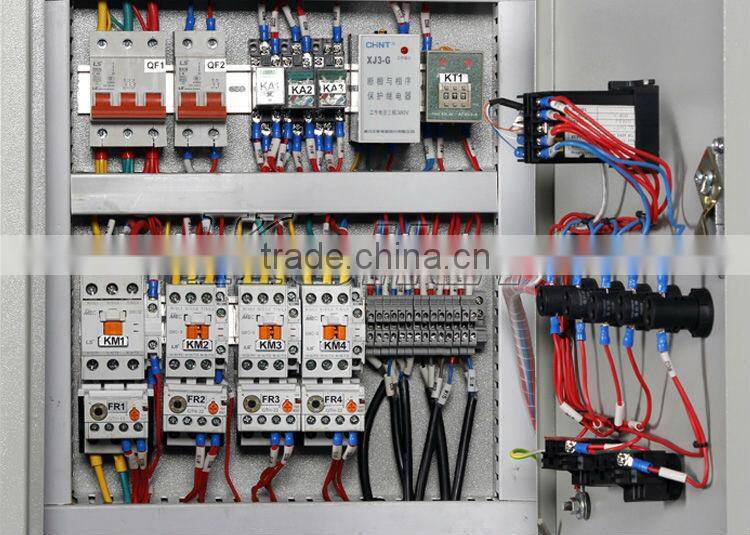

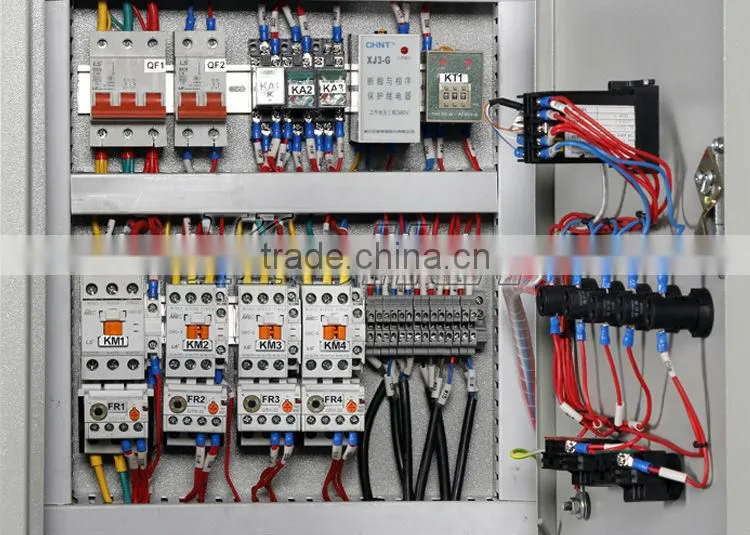

Electrical components |
LG (LS) |
South Korea |
Working condition for ice block machine:
Max. Ambient Temp |
+40°C |
Max Relative Humidity |
85% |
Supply water temp |
21°C |
Power supply |
380V 50/60HZ 3P or 220V 60HZ 3P |
Refrigerant |
R22/R404a |
Compressor type |
Semi-hermetic piston or Screw compressor |
Cooling system |
Water cooling condenser |
4. Installation for block ice machine:
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by Koller engineers:
- (1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
- (2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
- (3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
- (4) 2~ 3 workers are required to assist the installation for big project.
- (5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
5.Warranty:
- 12 months warranty after delivery.
- Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
- Over 10 engineers available to service machinery overseas.
- Free spare parts replacement within warranty period.
- Beyond guarantee period, we will charge market price for spare parts.
6. Why choose us?
- So far, we have exported ice machines to 150 countries in the world.
Our clients is widely-spread in over 150 countries like Malaysia, Philippine, Indonesia, Vietnam, Papua New Guinea, Australia, Fiji, French Polynesia, South Korea, Cyprus, Greece, Belgium, Croatia, Ireland, UK, Jordan, Iran, Syria, Saudi Arabia, Bahrain, Lebanon, Sudan, Nigeria, Angola, Congo, Guinea, Guinea Bissau, Ghana, Cote D'Ivoire, South Africa, Mozambique, Tanzania, Venezuela, Surinam, Chile, Haiti and so on.
- Excellent Brand of Chinese Ice Machine Industry.
- The Drafting Committee of National Ice Machine Industry Standard.
- Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
- Independent after-sales department, 8 engineers are ready to service abroad.
