Ice Block Machine MB100
1. Product Description
1). Special design for the Africa, Middle East and Oceania market, perform well in the hot place;
2). Adopt stainless steel SUS304 for the salt water tank and ice moulds, which is anti -corrosion and anti-rust ,guaranteeing a longer life span.
3). Reasonable and separate design for the structure, save space, easy to install;
4). All dimensions of ice block machine are designed according to international standard size of the container, very easy and convenient for transportation;
5). Ice block size: 5kg/piece, 10kg/piece; 15kg/piece; 20kg/piece; 25kg/piece

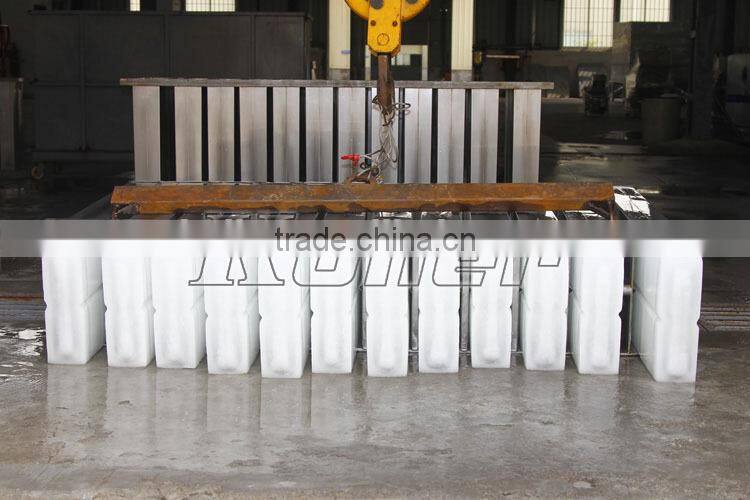

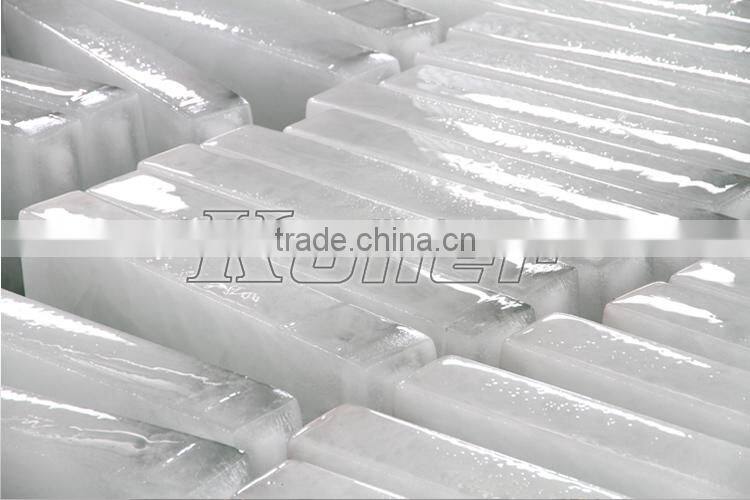

-1. Block ice
We design 5~100kg ice block for different capacity ice machine, meanwhile, we can design according to our customers' requirments.
Here are our regular block ice size:
| Ice weight | ice size L*W*H (mm) | ice making time | Times |
| 5kg | 80*165*500 | 4.8 | 5 |
| 10kg | 100*205*610 | 6 | 4 |
| 10kg | 120*160*610 | 8 | 3 |
| 15kg | 100*320*610 | 6 | 4 |
| 15kg | 120*265*610 | 8 | 3 |
| 20kg | 120*320*750 | 8 | 3 |
| 25kg | 120*360*750 | 8 | 3 |
| 25kg | 145*315*750 | 12 | 2 |
| 30kg | 145*300*950 | 12 | 2 |
| 50kg | 145*460*1000 | 12 | 2 |
| 50kg | 180*380*1000 | 16 | 1.5 |
| 100kg | 210*550*1200 | 24 | 1 |
-2. Ice mould and salt water tank
For salt water block ice machine, we use all SUS304 stainless steel for ice mould and ice water tank design. It can keep long life span for the whole machine, stainless steel is the best material for anti-corrosion and keep the cleanliness of the block ice.

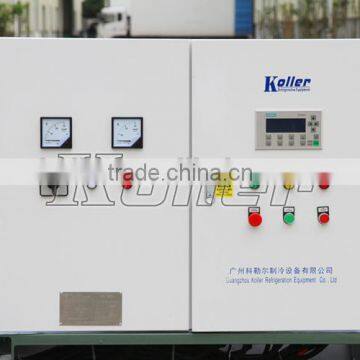

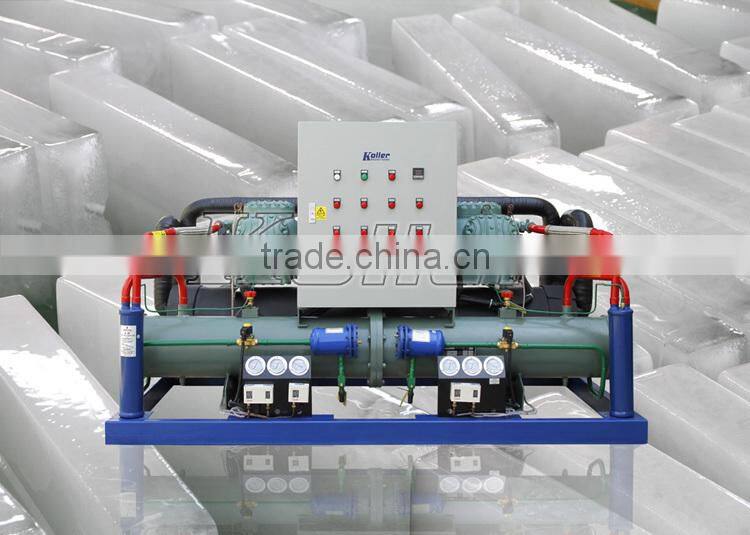

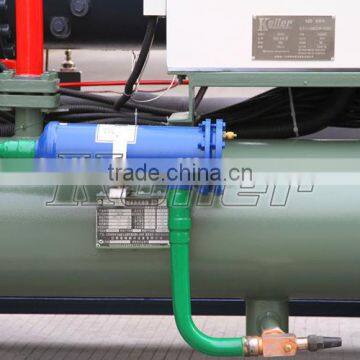

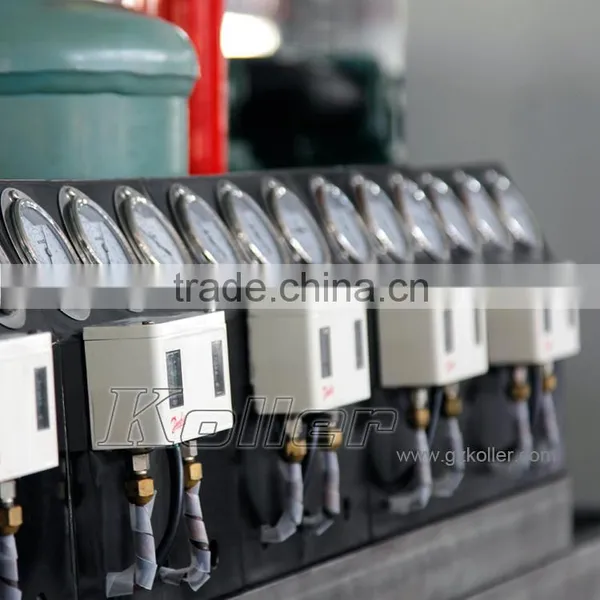

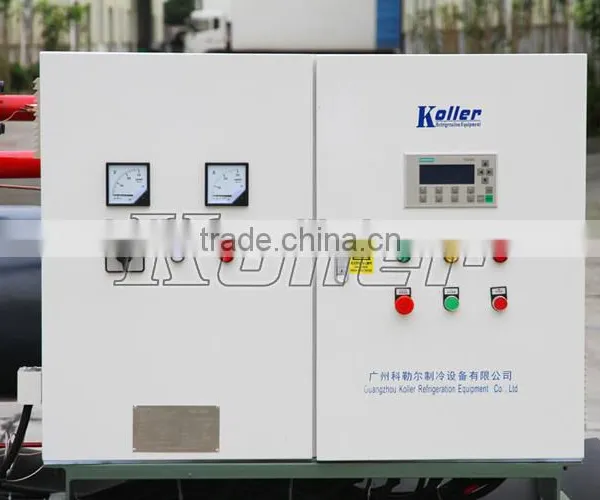

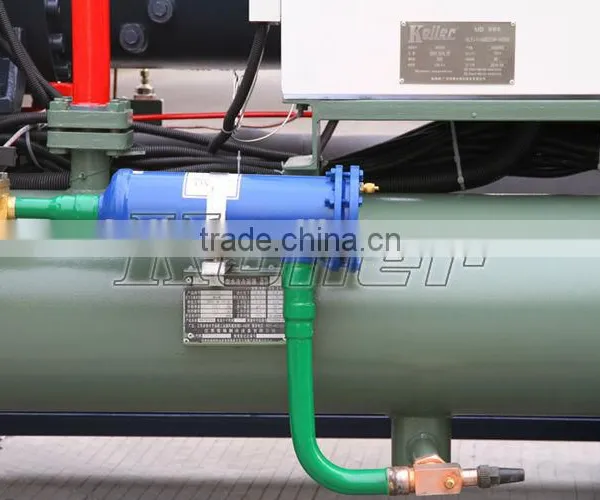

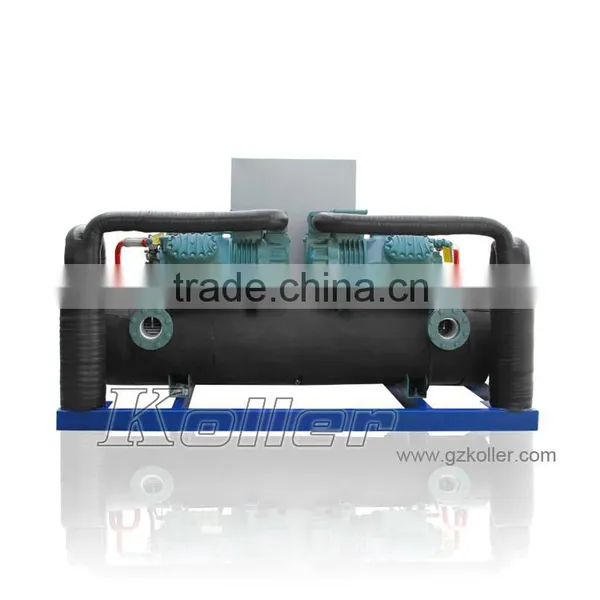

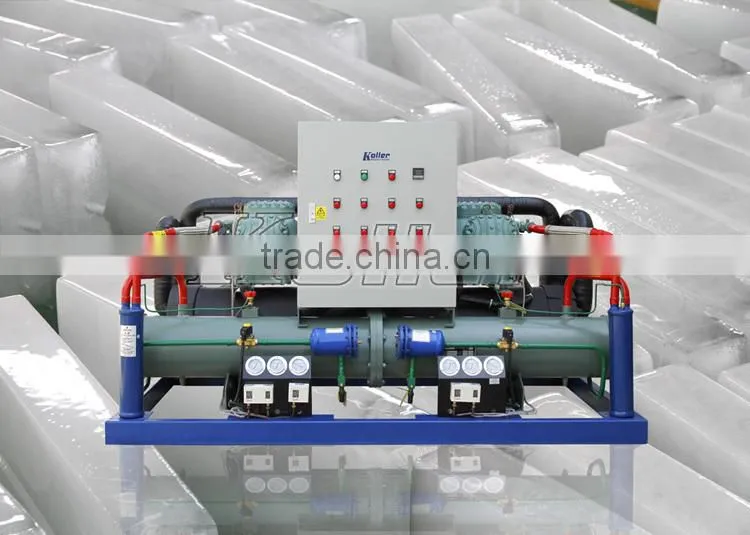

-3. Machine unit.
We have two cooling way for ice block machine, water cooling and air cooling, the way for choosing cooling way is based on the machine capacity, machine installation environment and requirments of our customers. Water cooling way will equip with a cooling tower.

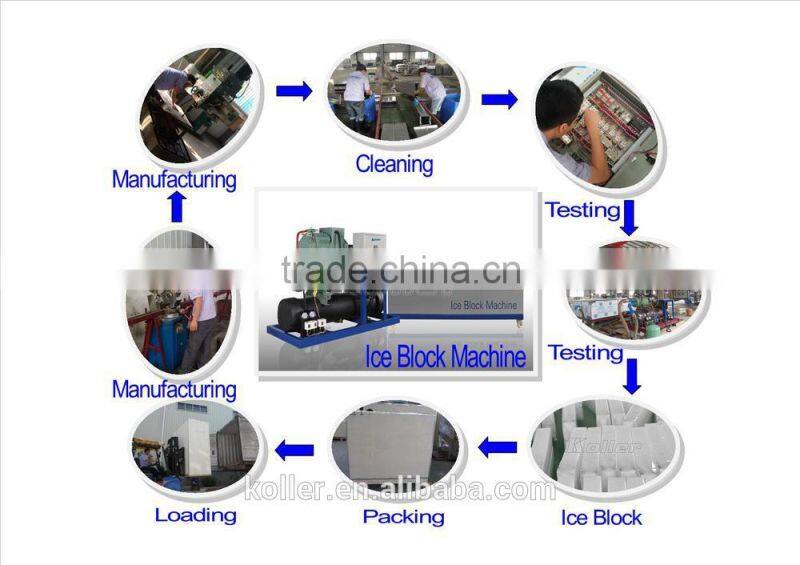

-4. The manufacture process of Koller ice block machine

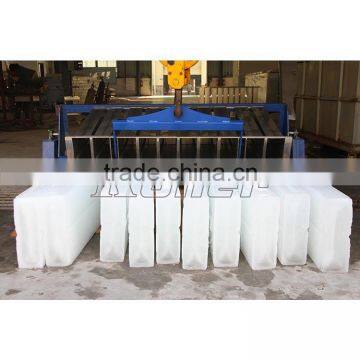

-5. Block ice machine with crane system layout :
Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts operation manual and CD are provided to guide the installation.
2). Installing by Koller engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
(5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
Koller specialize in ice machine research, design, manufacture for 10 years since 2004, our products sell all over the world, and you can see many refrigeration equipments in your daily life, we produce block ice machine, tube ice machine , cube ice machine, plate ice machine , flake ice machine and cold room. Koller is one of biggest ice machine producer in China, you can buy different kinds of ice machine from us for different applications.
