Koller Small Capacity Salt Water Ice Block Machine for Fishing (MB20)

Koller Small Capacity Salt Water Ice Block Machine for Fishing (MB20) thumbnail-1
Koller Small Capacity Salt Water Ice Block Machine for Fishing (MB20) thumbnail-2
Koller Small Capacity Salt Water Ice Block Machine for Fishing (MB20) thumbnail-3
Koller Small Capacity Salt Water Ice Block Machine for Fishing (MB20) thumbnail-4
Koller Small Capacity Salt Water Ice Block Machine for Fishing (MB20) thumbnail-5
Koller Small Capacity Salt Water Ice Block Machine for Fishing (MB20) thumbnail-6
Koller Small Capacity Salt Water Ice Block Machine for Fishing (MB20) photo-1
Koller Small Capacity Salt Water Ice Block Machine for Fishing (MB20) photo-2
Koller Small Capacity Salt Water Ice Block Machine for Fishing (MB20) photo-3
Koller Small Capacity Salt Water Ice Block Machine for Fishing (MB20) photo-4
Koller Small Capacity Salt Water Ice Block Machine for Fishing (MB20) photo-5
Koller Small Capacity Salt Water Ice Block Machine for Fishing (MB20) photo-6
US$ 1 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Capacity:
2 tons/day
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Guangzhou Koller R & E Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Capacity 2 tons/day
Place of Origin Guangdong, China
Brand Name Koller
Model Number MB20
Ice Shape Other, ice block
Voltage 380V/50HZ/3P or 220V/60HZ/3P
Power(W) 8100
Dimension(L*W*H) 1630mm*720mm*1530mm
Weight 1200kg
Certification CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Koller small Capacity salt water ice block machine for fishing (MB20)

Koller small Capacity  salt water ice block machine for fishing (MB20)





Koller MB series ice block making machines have the following types of ice blocks: 5 kg/PC, 10kg/PC, 15kg/PC, 20kg/PC, 25kg/PC, 30kg/PC, 50kg/PC , 100kg/PC . Meanwhile, we also can produce in compliance with the customers' requirements.



1.Industrial ice block making machine structure: Compressor unit, ice making pool and cooling tower-water cooled system(air condenser-air cooled system).It is easy to install, just need to connect the water pipes between the three parts, and supply the power wire to the machine



2. Weight of ice:5kg..10kg..20kg….. also can be done as customers’ requirement.

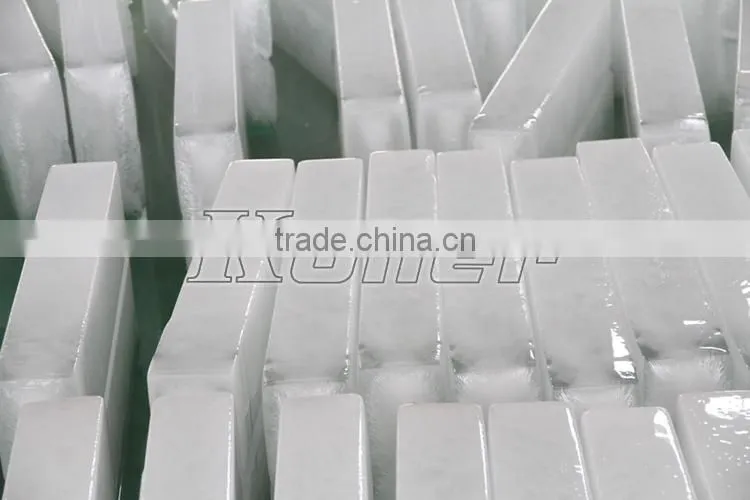

Standard Ice Block Size:

Ice Size(kg) Ice Dimension(mm)
5 80*160*500
10 100*200*610
15 100*300*610
15 120*255*610
20 120*300*750
25 120*350*750
25 150*300*750
30 150*300*950
50 150*450*1000
100 220*550*1100



Koller small Capacity salt water ice block machine for fishing (MB20)



3. Koller Ice Block Machine Series:


Model

Capacity

tons/24hours

Compressor Power (KW)

Compressor Brand

Total Power (KW)

Cooling way

Outer Dimension

MB10

1

4.5

Manevrop/Bitzer/

Refcomp

6

Air/water Cooling

Main unit and water tanK: 2820*1480*1040

MB20

2

8.1

Manevorp/Bitzer/

Refcomp

11

Air/water cooling

main unit:1630*720*1530

Water Tank: 2300*1430*1090

MB30

3

11.1

Bitzer/Refcomp/

Copeland

14

Air/Water cooling

Main unit: 1660*860*1450

water tank: 2460*1550*970

MB40

4

17.2

Bitzer/Refcomp/

Copeland

22.5

water cooling

Main unit: 1630*730*1520

water tank:4000*1356*900

MB50

5

22.1

Bitzer/Refcomp/

Copeland

31

water cooling

main unit:1630*830*1520

water tank:3700*1450*1100

MB60

6

23.5

Bitzer/Refcomp/

Copeland

32

water cooling

main unit:1750*900*1700

water tank:3100*1630*1420

MB80

8

31.4

Bitzer/Refcomp/

Copeland

45

water cooling

main unit: 2000*850*1300

water tank:5200*1850*1100

MB100

10

44.2

Bitzer/Refcomp/

Copeland

58

water cooling

main unit: 2300*1750*1300

water tank: 6000*1750*1300

MB150

15

62.5

Bitzer/Refcomp/

Copeland

78

water cooling

main unit:2300*1750*1300

water tank:8000*2100*1200

MB200

20

84.6

Bitzer/Refcomp/

Copeland

96

water cooling

main unit:2260*1350*1330

water tank: 9380*1770*1380

MB250

25

102

Bitzer/Refcomp/

Copeland/Hanbell

125

water cooling

main unit:2300*1500*1680

water tank: (8250*1980*1350)*2

MB300

30

112

Bitzer/Refcomp/

Copeland/Hanbell

150

water cooling

main unit:2260*1800*1480

water tank:(8770*1770*1125)*2

MB350

35

136

Bitzer/Refcomp/

Coepland/Hanbell

190

water cooling

main unit:2260*1800*1480

water tank:(9000*2100*1200)*3

MB800

80

262

Bitzer/Refcomp

Copeland/Hanbell

251

water cooling

main unit:5500*2000*2000

water tank:(11600*2080*1400)*3

MB1000

100

328

Bitzer/Refcomp

Copeland/Hanbell

390

water cooling

main unit:5500*2000*2000

water tank:(10000*2080*1400)*4

Koller small Capacity salt water ice block machine for fishing (MB20)

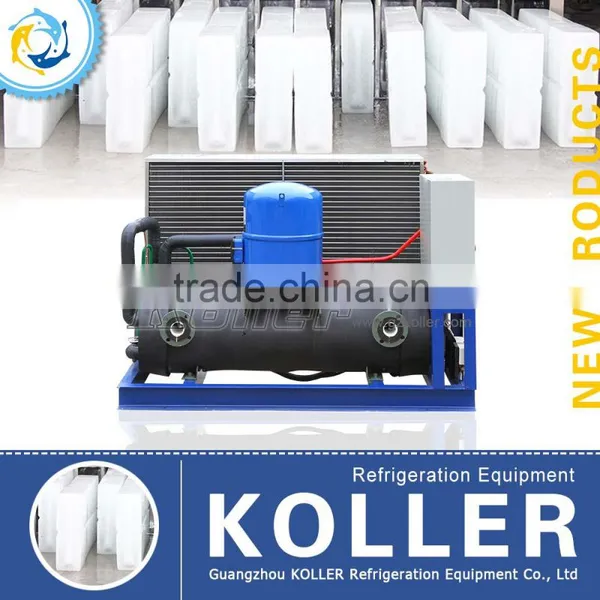

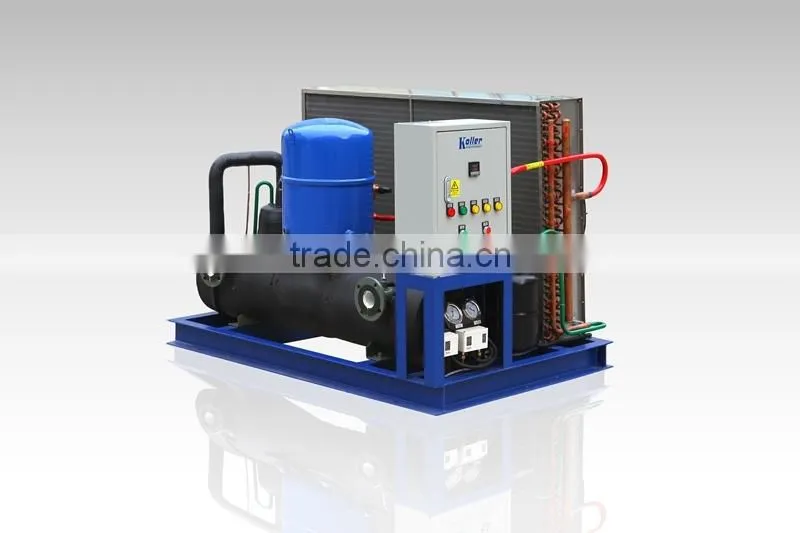

MB20 Ice Block Machine

Koller small Capacity salt water ice block machine for fishing (MB20)
Salt water tank:
Koller small Capacity salt water ice block machine for fishing (MB20)

Cooling Tower
Koller small Capacity salt water ice block machine for fishing (MB20)


4. Warranty:
  • 12 months warranty after delivery.
  • Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
  • Over 10 engineers available to service machinery overseas.
  • Free spare parts replacement within warranty period.
  • Beyond guarantee period, we will charge market price for spare parts.



5.Why choose us?

  • So far, we have exported ice machines to 150 countries in the world.

 Koller small Capacity salt water ice block machine for fishing (MB20)

  • Excellent Brand of Chinese Ice Machine Industry.
  • The Drafting Committee of National Ice Machine Industry Standard.
  • Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
  • Independent after-sales department, 8 engineers are ready to service abroad.
6.Koller Company
